Description

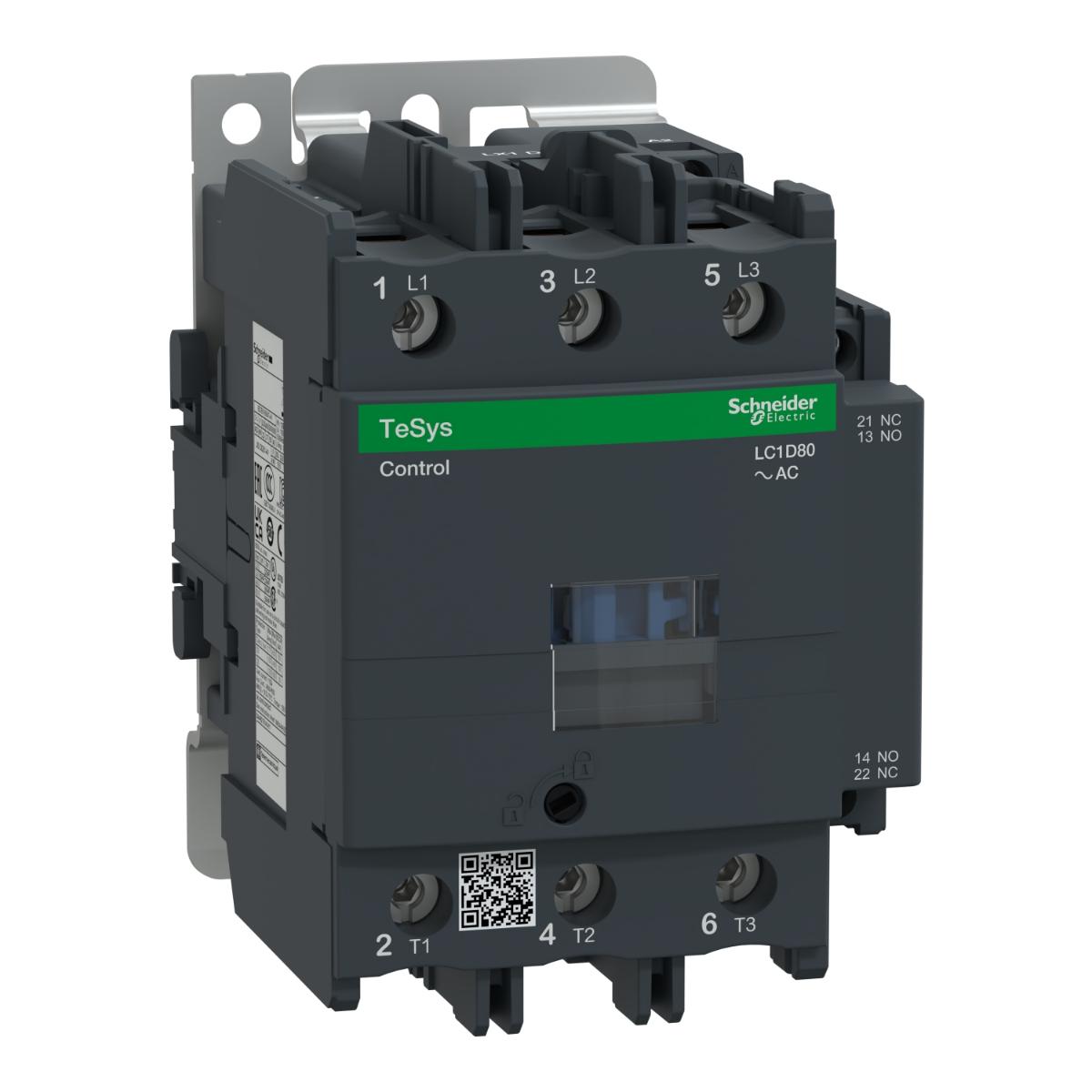

Schneider LC1D80BD Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, 440V, 80A, 24V DC standard coil, screw clamp terminals
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). It provides a 48V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).
Features:
• Long durability with high operating rate
• Green Premium product
• Multi sdandards certified makes it possible to wide application
• Easy installation and maintenance with compact design
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Contactor application | resistive load |
| Maximum operating rate | 3600 cyc/h at 60 °C |
| Non-overlap time | 1.5 ms on energisation between NC and NO contact |
| Mount | Plate |
| Minimum switching current | 5 mA for signalling circuit |
| Irms rated making capacity | 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Signalling circuit frequency | 25...400 Hz |
| [Ith] conventional free air thermal current | 125 A (at 60 °C) for power circuit |
| Supplier Code | LC1D80E7 |
| Breaking Capacity | 1100 A |
| [Icw] rated short-time withstand current | 140 A - 100 ms for signalling circuit |
| Inrush power in VA | 245-245 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 26-26 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Motor power kW | 37 kW at 380...400 V AC 50/60 Hz (AC-3) |
| Safety reliability level | B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Insulation resistance | > 10 MOhm for signalling circuit |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Range | TeSys |
| Flame retardance | V1 conforming to UL 94 |
| Weight | 1.59 kg |
| Overvoltage category | III |
| Electrical durability | 1.5 Mcycles 80 A AC-3 at Ue <= 440 V |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Protective cover | with |
| Pollution degree | 3 |
| Tightening torque | power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8mm |
| Average impedance | 0.8 mOhm - Ith 125 A 50 Hz for power circuit |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ie] rated operational current | 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
| Connections - terminals | control circuit: screw clamp terminals 1 1-2.5mm² - cable stiffness: flexible with cable end |
| Control circuit type | AC at 50/60 Hz standard |
| Associated fuse rating | 160 A gG at <= 690 V coordination type 2 for power circuit |
| Depth | 130mm |
| Mounting support | rail |
| Pole contact composition | 3 NO |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Voltage | <= 690 V |
| Mechanical durability | 4 Mcycles |
| Permissible ambient air temperature around the device | 60-70 °C with derating |
| Climatic withstand | conforming to IACS E10 exposure to damp heat |
| Coil technology | without built-in suppressor module |
| Height | 127mm |
| Minimum switching voltage | 17 V for signalling circuit |
| Poles description | 3P |
| Width | 85mm |
| Operating altitude | 0...3000 m |
| Operating time | 6...20 ms opening |
| Device short name | LC1D |
| [Uc] control circuit voltage | 48 V AC 50/60 Hz |
| Compatibility code | LC1D |
| Auxiliary contacts type | type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Mechanical robustness | shocks contactor open (8 Gn for 11 ms) |
| [Ue] rated operational voltage | power circuit: <= 690 V AC |
| Pole Configuration | 3 Pole |
| [Ui] rated insulation voltage | power circuit: 1000 V conforming to IEC 60947-4-1 |
| Contact compatibility | M11 |
| Standards | IEC 60947-5-1 |
| Control circuit voltage limits | 1...1.1 Uc (55-70 °C):operational AC 50/60 Hz |
| Product certifications | UKCA |
| Brand Name | Schneider Electric |
| Heat dissipation | 6-10 W at 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947 |
| Power dissipation per pole | 5.1 W AC-3e |
| IP Rating | IP20 |
| Motor power hp | 60 hp at 460/480 V AC 50/60 Hz for 3 phases motors |
| Rated breaking capacity | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| Utilisation category | AC-1 |
| Net weight | 1.59 kg |
| Product or component type | contactor |
