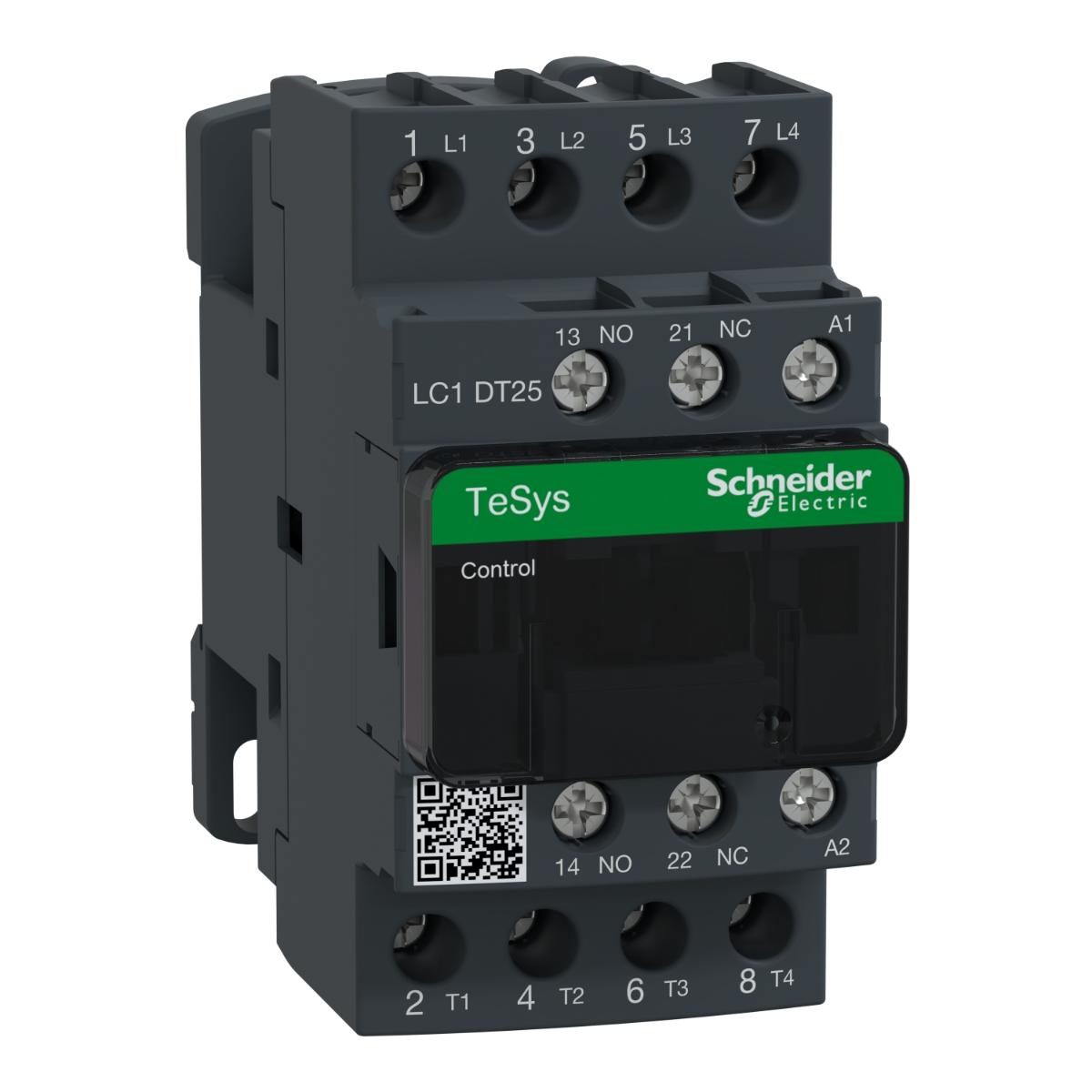

Schneider Electric LC1DT25U7 Contactor, TeSys D, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 240VAC 50/60Hz coil

Code: SCHLC1DT25U7

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider LC1D50AFD TeSys, TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VDC standard coil

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 25A/440V AC-1. It provides a 240V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Contactor application	resistive load
Maximum operating rate	3600 cyc/h 60 °C
Non-overlap time	1.5 ms on energisation between NC and NO contact
Mount	Plate
Minimum switching current	5 mA for signalling circuit
Irms rated making capacity	250 A DC for signalling circuit conforming to IEC 60947-5-1
Signalling circuit frequency	25...400 Hz
[Ith] conventional free air thermal current	25 A (at 60 °C) for power circuit
Supplier Code	LC1DT25U7
Breaking Capacity	250 A
YoutubeVideo1	https://www.youtube.com/embed/gj6wLOSXVLk?si=8QxgtV7sB9XQPTQz
[Icw] rated short-time withstand current	140 A - 100 ms for signalling circuit
360Image	https://visuals.se.com/LC1DT25U7_Image-StopMotion/20211229T0131/360
Inrush power in VA	70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA	7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
Safety reliability level	B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Insulation resistance	> 10 MOhm for signalling circuit
IP degree of protection	IP20 front face conforming to IEC 60529
Range	TeSys Deca
Flame retardance	V1 conforming to UL 94
Weight	0.365 kg
Overvoltage category	III
Electrical durability	0.8 Mcycles 25 A AC-1 at Ue <= 440 V
Item Name	Contactor
Protective treatment	TH conforming to IEC 60068-2-30
Protective cover	with
Pollution degree	3
Tightening torque	power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Average impedance	2.5 mOhm - Ith 25 A 50 Hz for power circuit
Auxiliary contact composition	1 NO + 1 NC
Current	12A
[Ie] rated operational current	25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Connections - terminals	control circuit: screw clamp terminals 1 1-4mm² - cable stiffness: flexible without cable end
Control circuit type	AC at 50/60 Hz
Associated fuse rating	25 A gG at <= 690 V coordination type 2 for power circuit
Depth	92mm
Mounting support	rail
Pole contact composition	4 NO
Fire resistance	850 °C conforming to IEC 60695-2-1
Voltage	<= 300 V
Mechanical durability	15 Mcycles
Permissible ambient air temperature around the device	60-70 °C with derating
Climatic withstand	conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Coil technology	without built-in suppressor module
Height	85mm
Minimum switching voltage	17 V for signalling circuit
Poles description	4P
Width	45mm
Operating altitude	0...3000 m
Operating time	12...22 ms closing
Device short name	LC1D
[Uc] control circuit voltage	240 V AC 50/60 Hz
Compatibility code	LC1D
Auxiliary contacts type	type mirror contact 1 NC conforming to IEC 60947-4-1
Mechanical robustness	shocks contactor open (10 Gn for 11 ms)
[Ue] rated operational voltage	power circuit: <= 300 V DC
Pole Configuration	4 Pole
[Ui] rated insulation voltage	power circuit: 600 V UL certified
Contact compatibility	M6
Standards	IEC 60947-5-1
Control circuit voltage limits	0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz
Product certifications	RINA
Brand Name	Schneider Electric
Heat dissipation	2-3 W at 50/60 Hz
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
Power dissipation per pole	1.56 W AC-1
IP Rating	IP20
Rated breaking capacity	250 A at 440 V for power circuit conforming to IEC 60947
Utilisation category	AC-3
Coil Voltage	240VAC
Net weight	0.365 kg
Product or component type	contactor
