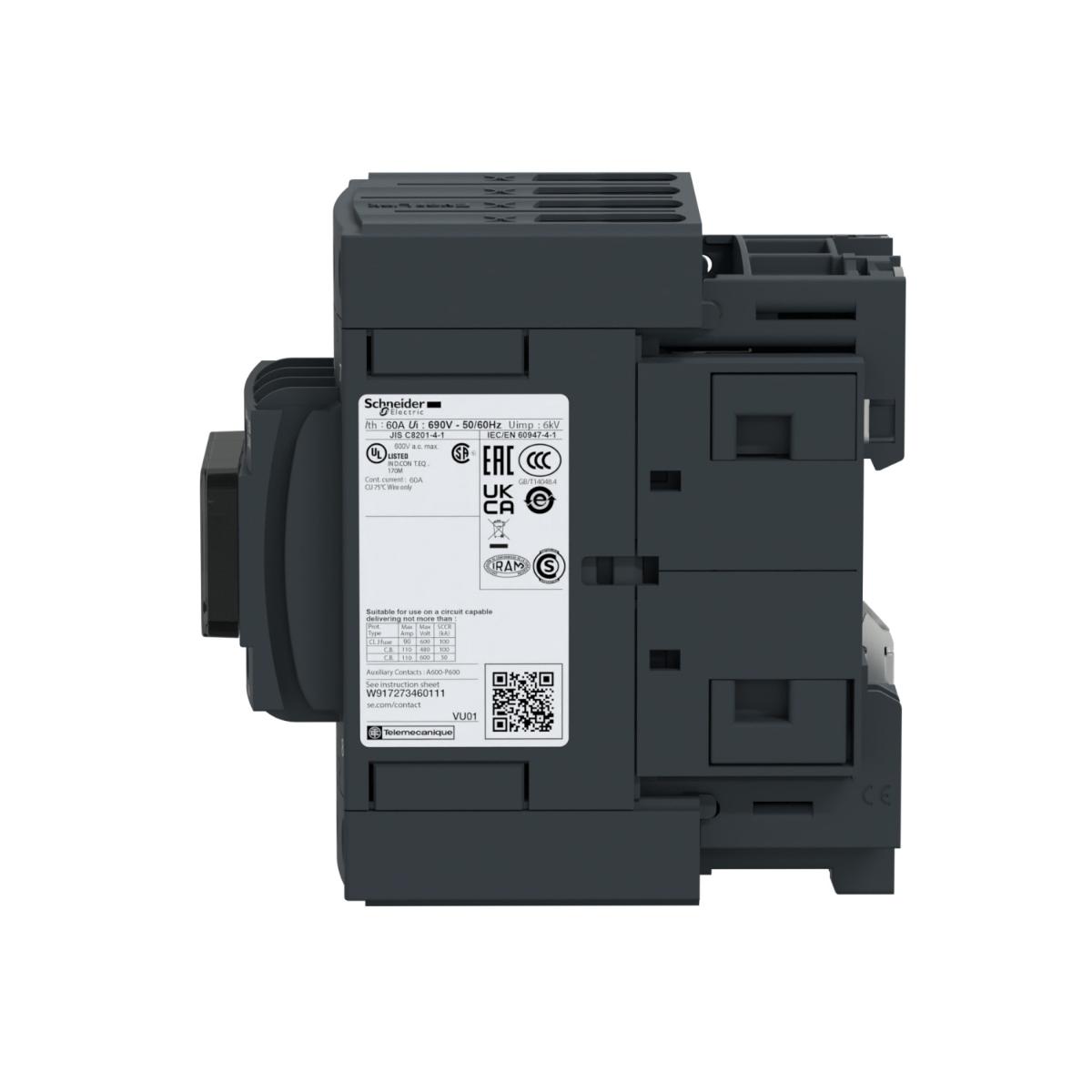

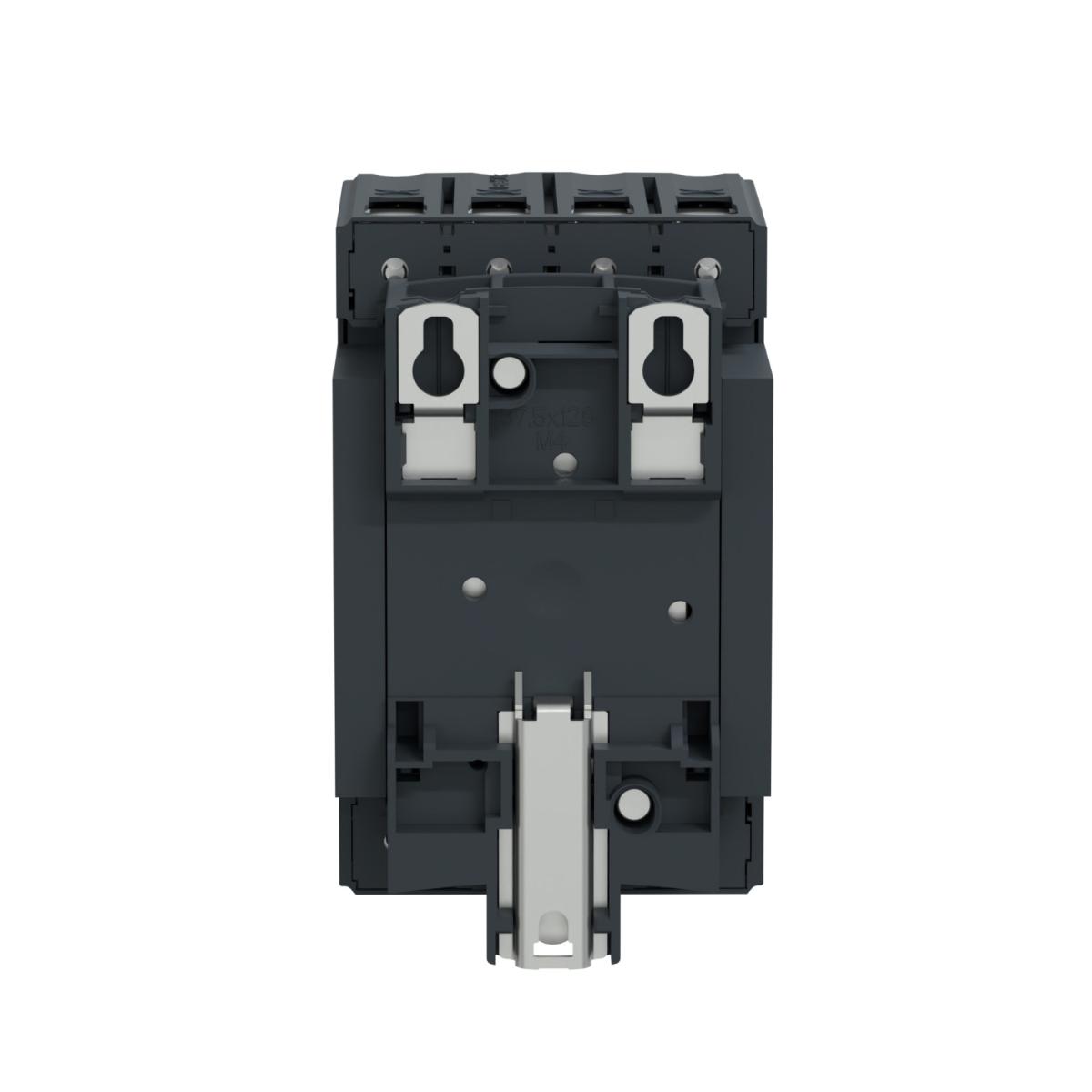

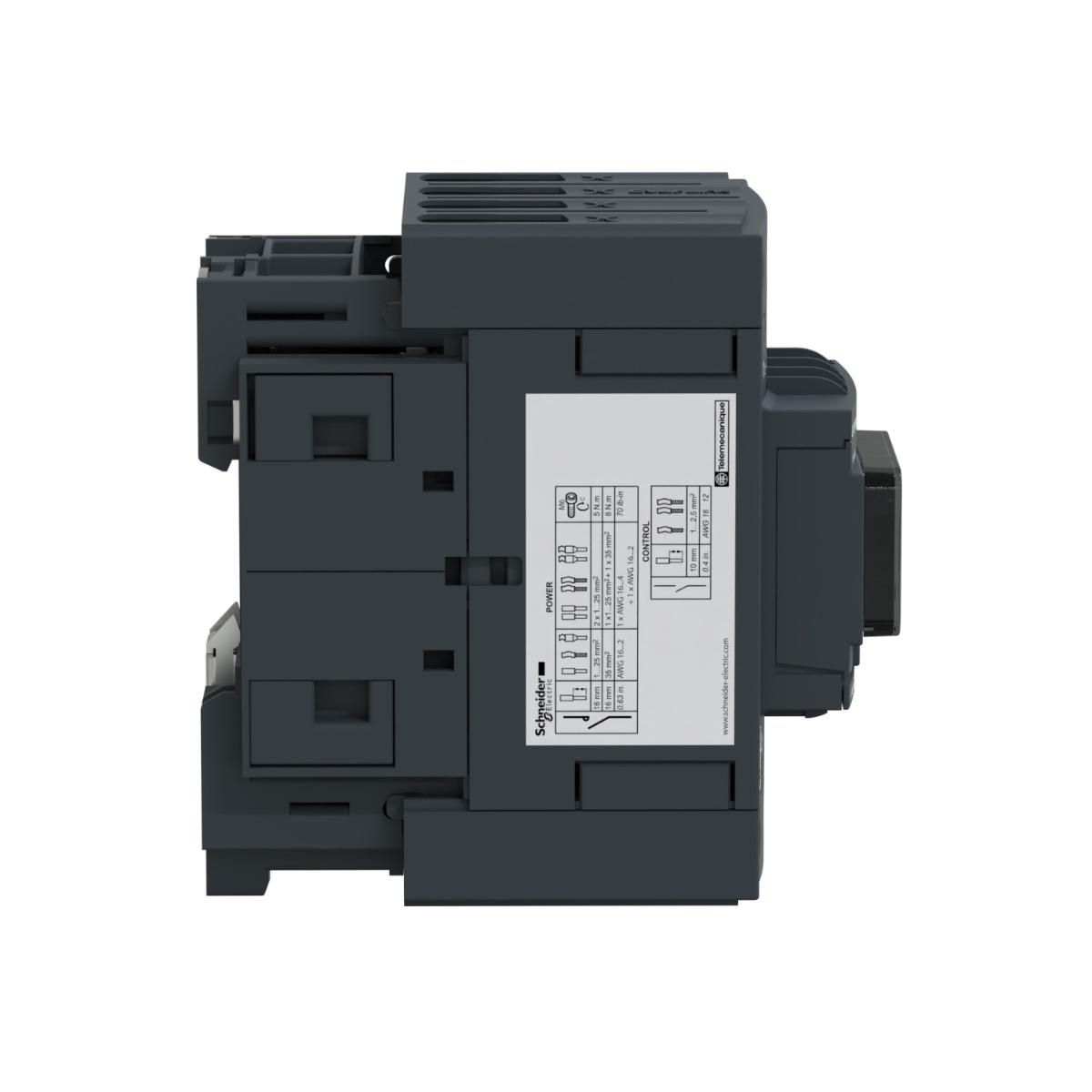

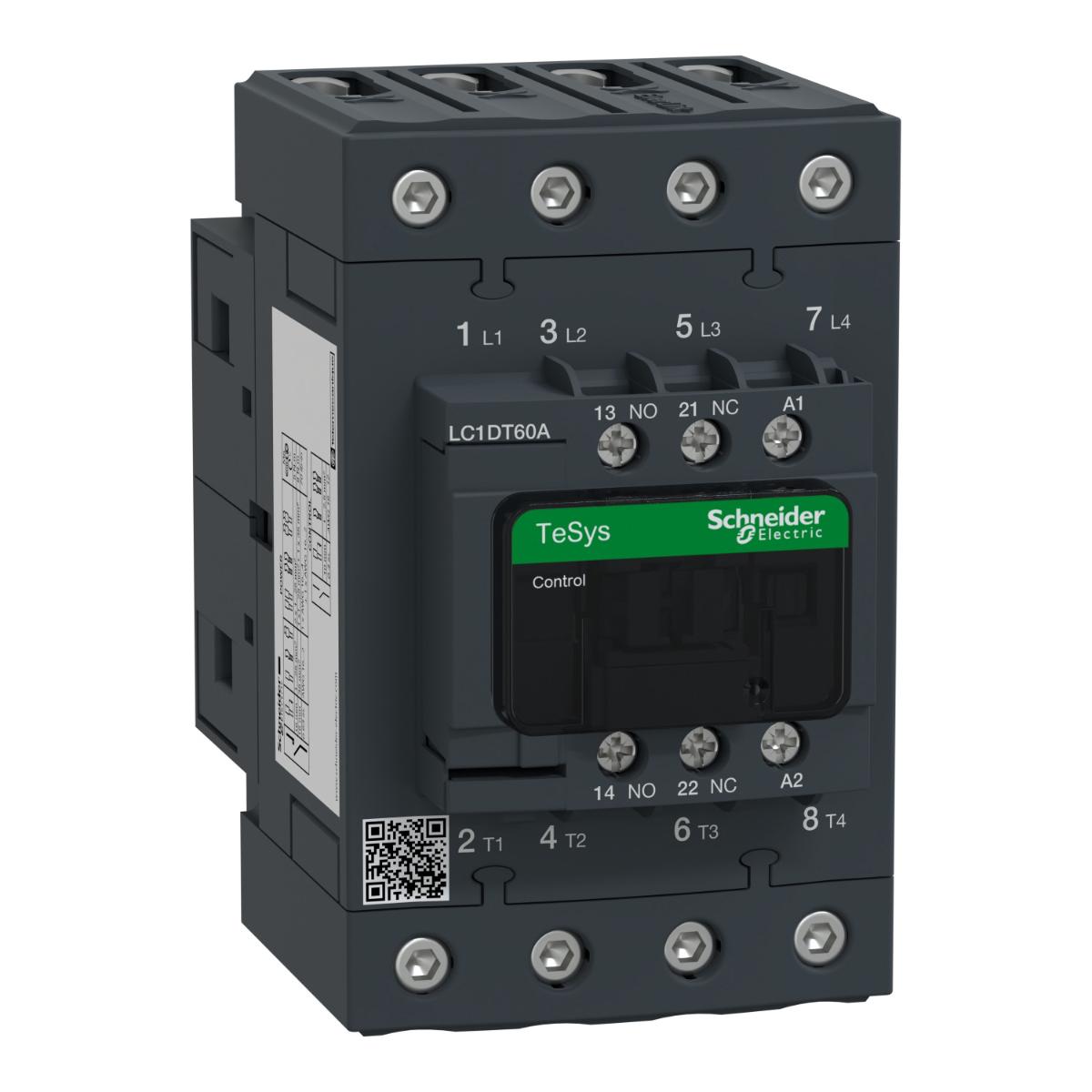

Schneider Electric LC1DT60AE7 TeSys, TeSys Deca, Contactor, 4P(4 NO), AC-1, 0 to 440V, 60A, 48VAC 50/60Hz coil

Code: SCHLC1DT60AE7

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider Electric LC1DT60AE7 TeSys, TeSys Deca, Contactor, 4P(4 NO), AC-1, 0 to 440V, 60A, 48VAC 50/60Hz coil

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 60A/440V AC-1. It provides a 48V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors and control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Contactor application	resistive load
Maximum operating rate	3600 cyc/h at 60 °C
Mount	Rail
Control circuit type	AC at 50/60 Hz
Depth	120 mm
Minimum switching current	5 mA for signalling circuit
Fire resistance	850 °C conforming to IEC 60695-2-1
Pole contact composition	4 NO
Signalling circuit frequency	25...400 Hz
Voltage	<= 300 V
Supplier Code	LC1DT60AE7
Mechanical durability	6 Mcycles
Coil technology	without built-in suppressor module
Height	122mm
Minimum switching voltage	17 V for signalling circuit
Poles description	4P
Width	70mm
Breaking Capacity	800 A
YoutubeVideo1	https://www.youtube.com/embed/gj6wLOSXVLk?si=8QxgtV7sB9XQPTQz
Operating altitude	0...3000 m
360Image	https://visuals.se.com/LC1DT60AE7_Image-StopMotion/20220104T1232/360
[Uc] control circuit voltage	48 V AC 50/60 Hz
Device short name	LC1D
Compatibility code	LC1D
Pole Configuration	4 Pole
Insulation resistance	> 10 MOhm for signalling circuit
Range	TeSys D
Contact compatibility	M6
Flame retardance	V1 conforming to UL 94
Weight	1.09 kg
Overvoltage category	III
Brand Name	Schneider Electric
Electrical durability	1.4 Mcycles 60 A AC-1 at Ue <= 440 V
Heat dissipation	4-5 W at 50/60 Hz
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
IP Rating	IP20 front face conforming to IEC 60529
Protective treatment	TH conforming to IEC 60068-2-30
Protective cover	with
Rated breaking capacity	800 A at 440 V for power circuit conforming to IEC 60947
Pollution degree	3
Average impedance	1.6 mOhm - Ith 60 A 50 Hz for power circuit
Net weight	1.09 kg
Auxiliary contact composition	1 NO + 1 NC
Product or component type	contactor
