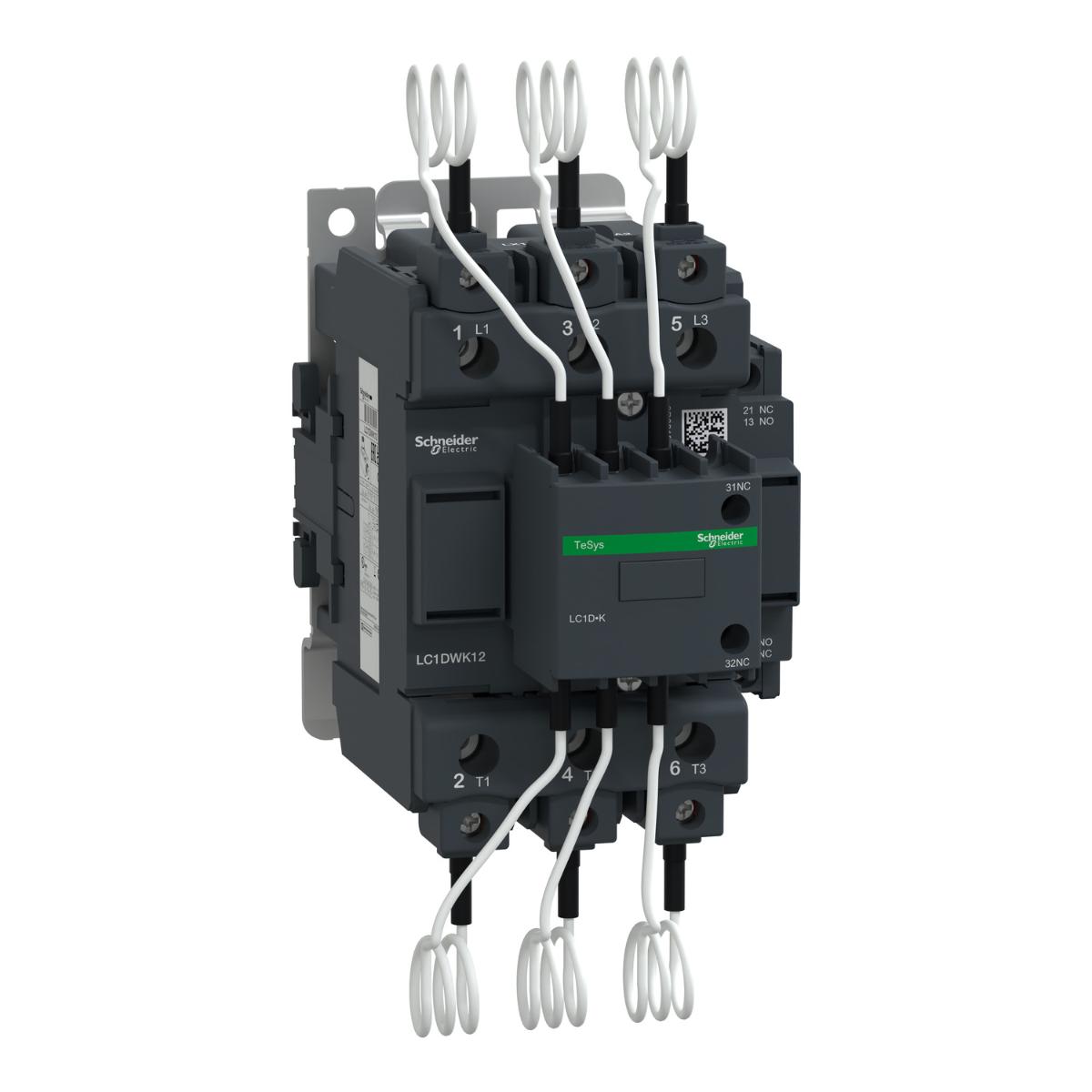

Schneider Electric LC1DWK12F7 Capacitor contactor, Tesys Deca, 63kVAR at 400/415V 50Hz, 110V AC 50/60Hz coil, screw clamp terminals

Code: SCHLC1DWK12F7

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider Electric LC1DWK12F7 Capacitor contactor, Tesys Deca, 63kVAR at 400/415V 50Hz, 110V AC 50/60Hz coil, screw clamp terminals

TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 63kVAR@400/415V 50Hz (104kVAR@690V). It provides a 110V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 100 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).

Features:
• Designed to meet the requirements of industrial and HVAC applications
• Easier to install and operate with multi-standard screws
• With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
• Digital customer experience for technical documents

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Contactor application	power factor correction
Maximum operating rate	240 cyc/h
Control circuit type	AC at 50/60 Hz
Depth	154mm
Ambient air temperature for operation	-5-60 °C
Mounting support	plate
Pole contact composition	3 NO
Supplier Code	LC1DWK12F7
Ambient air temperature for storage	-60-80 °C
Height	180mm
Poles description	3P
Width	85mm
Operating altitude	0...3000 m
360Image	https://visuals.se.com/LC1DWK12M7_Image-StopMotion/20220116T1950/360
Device short name	LC1DWK
[Uc] control circuit voltage	110 V AC 50/60 Hz
Compatibility code	LC1D
Auxiliary contacts type	type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1
Device application	control
[Ue] rated operational voltage	power circuit: 690 V AC 50/60 Hz
IP degree of protection	IP20 front face conforming to IEC 60529
Range	TeSys
Standards	UL 60947-4-1
Product certifications	UKCA
Brand Name	Schneider Electric
Electrical durability	200000 cycles at Ue 690 V
1	https://visuals.se.com/LC1DWK12M7_Image-StopMotion/20220116T1950/360
Product name	TeSys Deca
Reactive power rating	80 kvar at 575-575 V AC 60 Hz 60 °C
Utilisation category	AC-6b
Tightening torque	control circuit: 1.7 N.m - on screw clamp terminals
Net weight	1.65 kg
Auxiliary contact composition	1 NO + 2 NC instantaneous
Product or component type	capacitor duty contactor
Connections - terminals	control circuit: screw clamp terminals 2 1-2.5mm² - cable stiffness: flexible with cable end
