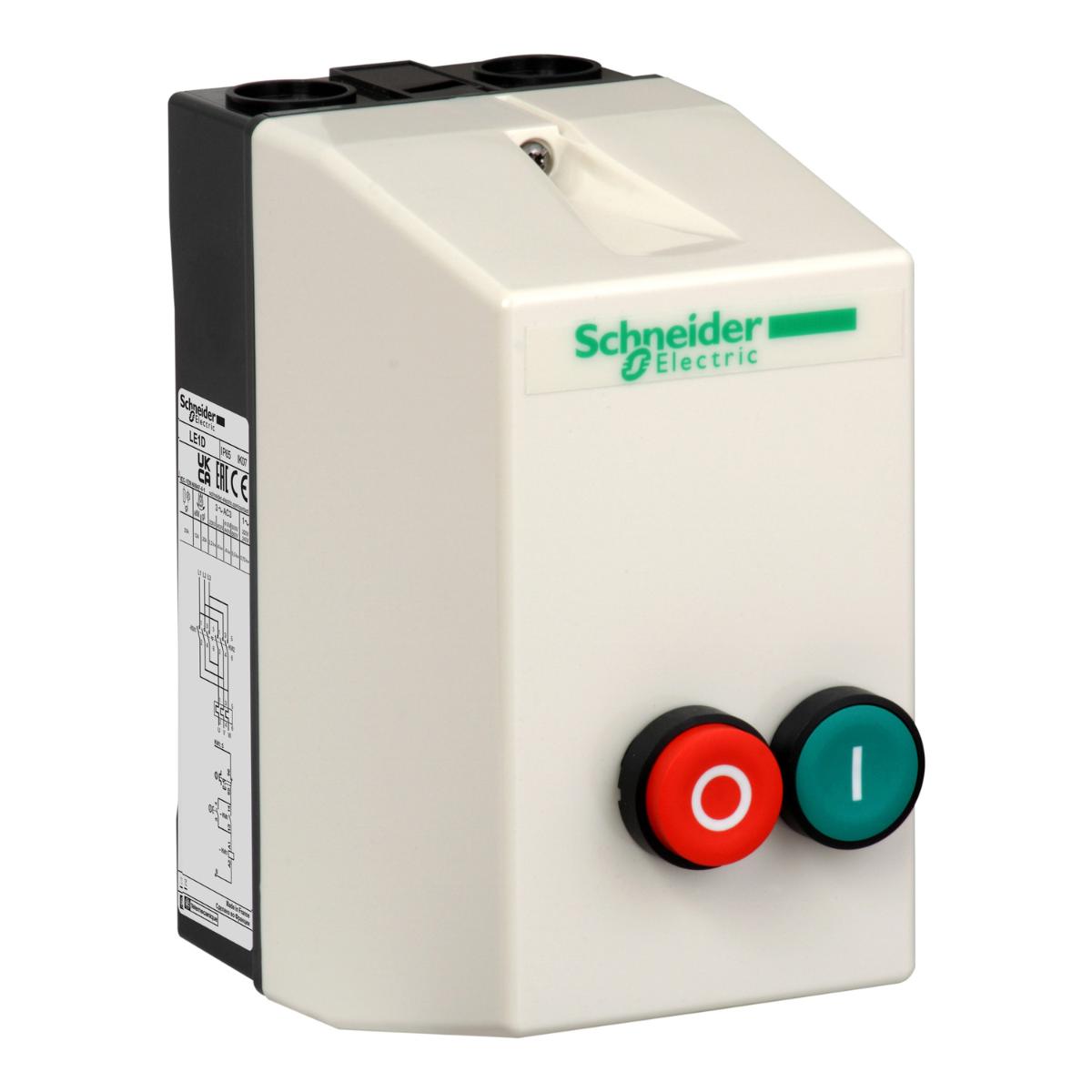

Schneider LE1D25N7 Enclosed DOL Starter, TeSys LE, 25 A, 415 V AC coil
Code: SCHLE1D25N7
Unit of measure:
EACH
Description
Features:
• Reference contains Substances of Very High Concern above the threshold
• Polycarbonate enclosure provides high level protection against water, dust and mechanical compact
• Environmentally friendly product
• Good performance on motor protection against overload, work with overload relay
• Easy to use with ON/OFF pushbuttons at the front
• Multiple resetting methods: manual & remotely
•
•
•
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Utilisation Category | AC-3 |
| Ambient air temperature for operation | -5-40 �C |
| Depth | 153.5 mm |
| Control Type | push-button start green I |
| Supplier Code | LE1D25N7 |
| Compatability Code | LE1D |
| Height | 20.000 cm |
| GrosWeight | 1.243 kg |
| Width | 16.000 cm |
| [Ithe] conventional enclosed thermal current | 22 A |
| [Uc] control circuit voltage | 415 V AC 50/60 Hz |
| Warranty | 18 months |
| Cable entry number | 2 ISO20 top |
| Motor power kW | 11 kW at 380/400 V AC 50/60 Hz |
| Material | polycarbonate |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Range | TeSys LE |
| Standards | IEC 60947-4-1 |
| Brand Name | Schneider Electric |
| Item Name | Motor Starter |
| Volume | 8000.000 cm3 |
| Length | 25.000 cm |
| Coil Voltage | 415VAC |
| Current | 25A |
| Device Application | standard |
