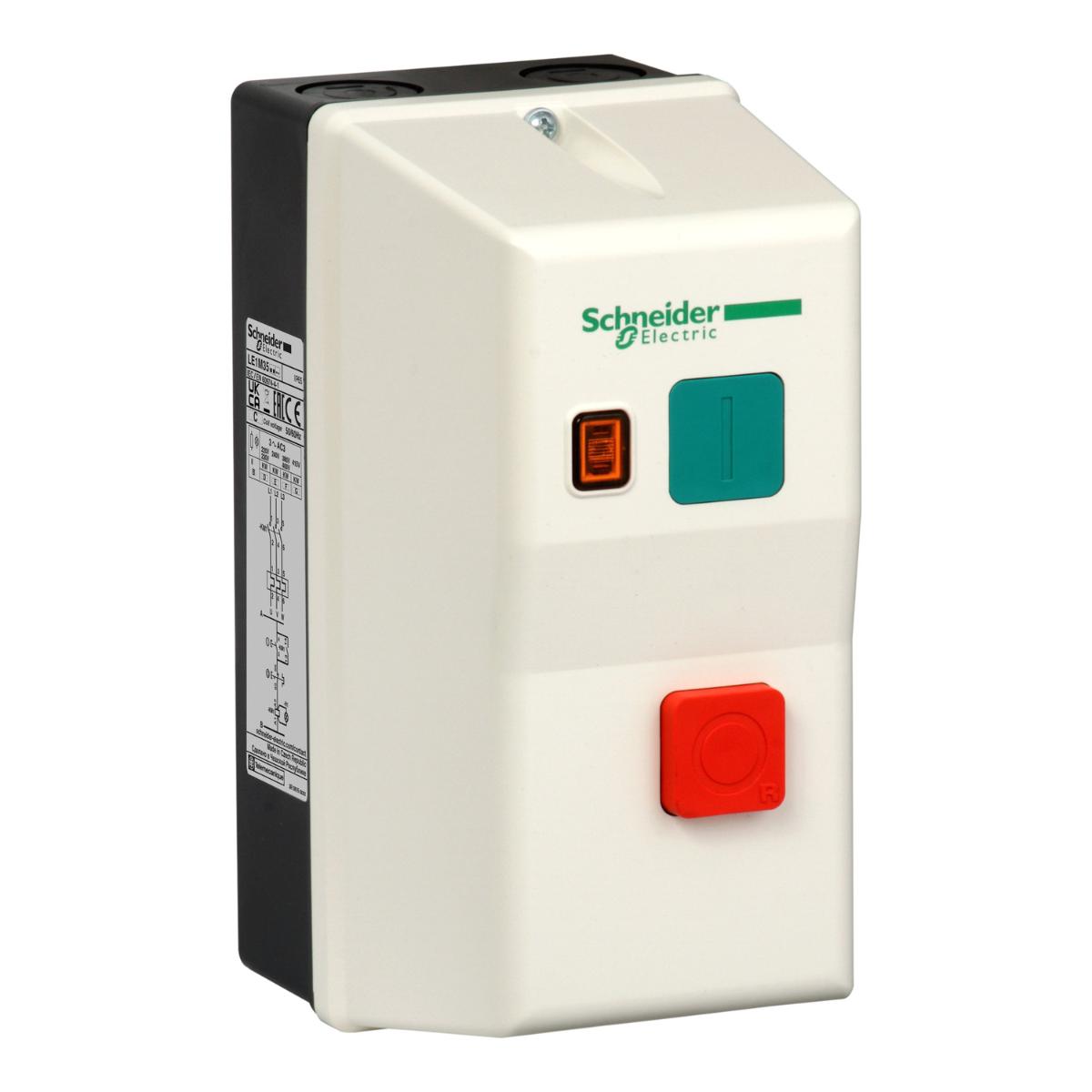

Schneider LE1M35N707 Enclosed DOL Starter, TeSys LE, 1.2...1.8 A, 415 V AC coil
Code: SCHLE1M35N707
Unit of measure:
EACH
Description
• Environmentally friendly product
• Good performance on motor protection against overload, work with overload relay
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Power Rating | 0.55 kW |
| Utilisation Category | AC-3 |
| Ambient air temperature for operation | -5-40 �C |
| Depth | 108 mm |
| Supplier ref | LE1M35N707 |
| Control Type | push-button start green I |
| Supplier Code | LE1M35N707 |
| Compatability Code | LE1M |
| Degree of Protection | IP65 |
| Height | 11.7 cm |
| GrosWeight | 576.0 g |
| Width | 16.5 cm |
| [Uc] control circuit voltage | 415 V AC 50/60 Hz |
| Warranty | 18 months |
| Cable entry number | 2 ISO20 top |
| Coil Current Type | AC |
| Motor power kW | 0.25 kW at 240 V AC 50/60 Hz |
| Material | ABS (acrylonitrile butadiene-styrene) |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Range | TeSys LE |
| Standards | IEC 60947-4-1 |
| Frequency Rating | 50/60 Hz |
| Brand Name | Schneider Electric |
| Item Name | Motor Starter |
| EAN/UPC | 3389110781182 |
| Type | Enclosed DOL |
| Length | 8.0 cm |
| Volume | 1544.4 cm3 |
| Coil Voltage | 415 VAC |
| Number of Poles | 3 |
| Current | 1.2 - 1.8A |
| Device Application | standard |
