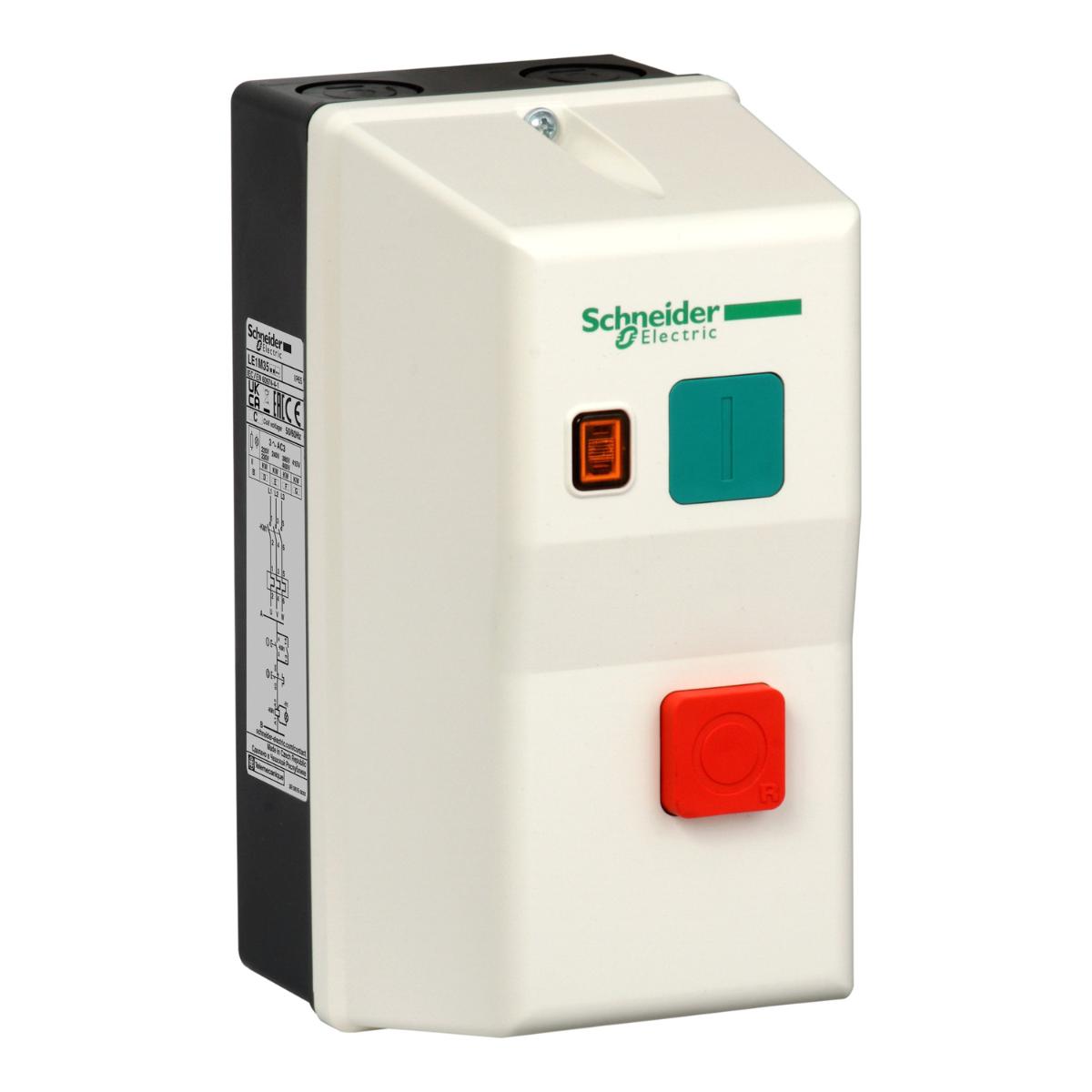

Schneider LE1M35N722 Enclosed DOL Starter, TeSys LE, 12...16 A, 415 V AC coil
Code: SCHLE1M35N722
Unit of measure:
EACH
Description
• Environmentally friendly product
• Good performance on motor protection against overload, work with overload relay
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Wattage | 7.5kW |
| Utilisation Category | AC-3 |
| Standard | IEC 60947-4-1 |
| Ambient air temperature for operation | -5-40 �C |
| Depth | 108 mm |
| Control Type | push-button start green I |
| Supplier Code | LE1M35N722 |
| Voltage | 415VAC |
| Compatability Code | LE1M |
| GrosWeight | 579.0 g |
| Height | 8.5 cm |
| Width | 11.7 cm |
| [Uc] control circuit voltage | 415 V AC 50/60 Hz |
| Warranty | 18 months |
| Cable entry number | 2 ISO20 top |
| Motor power kW | 4 kW at 240 V AC 50/60 Hz |
| Material | ABS (acrylonitrile butadiene-styrene) |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Range | TeSys LE |
| Standards | IEC 60947-4-1 |
| Weight | 0.6kg |
| Brand Name | Schneider Electric |
| Item Name | DOL Starter |
| Length | 16.5 cm |
| Volume | 1640.925 cm3 |
| IP Rating | IP65 |
| Current | 12 - 16A |
| Device Application | standard |
