Description

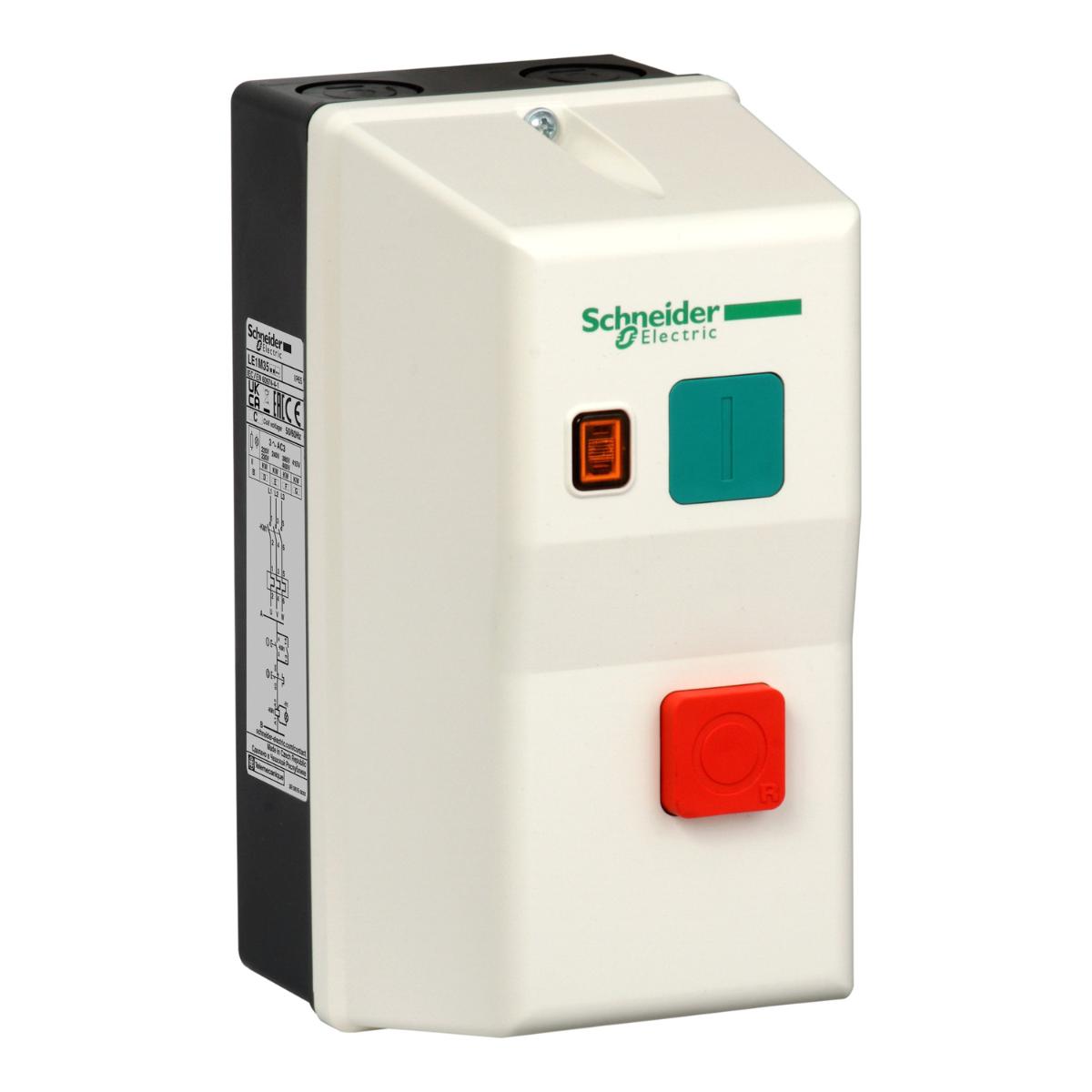

Schneider LE1M35U714 Enclosed DOL Starter, TeSys LE, 5.5...8 A, 240 V AC coil
Features:
• Reference contains Substances of Very High Concern above the threshold
• Polycarbonate enclosure provides high level protection against water, dust and mechanical compact
• Environmentally friendly product
• Good performance on motor protection against overload, work with overload relay
• Easy to use with pushbuttons at the front
• Multiple resetting methods: manual & remotely
•
•
•
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Power Rating | 3 kW |
| Utilisation Category | AC-3 |
| Ambient air temperature for operation | -5-40 �C |
| Depth | 108 mm |
| Supplier ref | LE1M35U714 |
| Control Type | push-button start green I |
| Supplier Code | LE1M35U714 |
| Compatability Code | LE1M |
| Degree of Protection | IP65 |
| Height | 11.500 cm |
| GrosWeight | 572.000 g |
| Width | 16.500 cm |
| [Uc] control circuit voltage | 240 V AC 50/60 Hz |
| Warranty | 18 months |
| Cable entry number | 2 ISO20 top |
| Coil Current Type | AC |
| Motor power kW | 3 kW at 415 V AC 50/60 Hz |
| Material | ABS (acrylonitrile butadiene-styrene) |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Range | TeSys LE |
| Standards | IEC 60947-4-1 |
| Frequency Rating | 50/60 Hz |
| Brand Name | Schneider Electric |
| Item Name | Motor Starter |
| EAN/UPC | 3389110781304 |
| Type | Enclosed DOL |
| Length | 8.200 cm |
| Volume | 1555.950 cm3 |
| Coil Voltage | 240 VAC |
| Number of Poles | 3 |
| Current | 5.5 - 8A |
| Device Application | standard |
