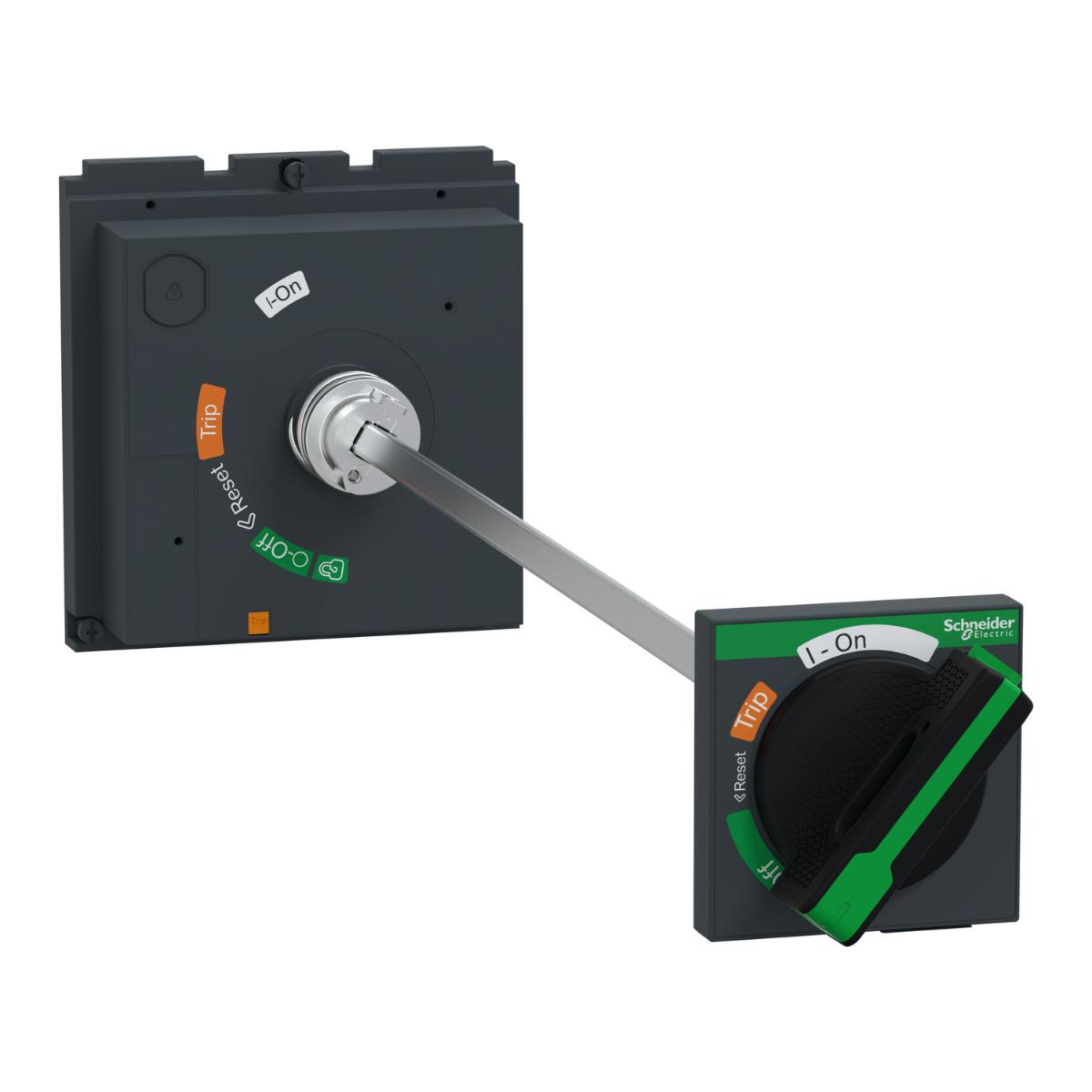

Schneider Electric LV432598T Extended rotary handle, ComPacT NSX400/630, Black handle, shaft length 209mm to 600mm, IP55

It is an extended rotary handle for ComPacT NSX 400/630, PowerPact Multistandard L frames and EasyPact CVS 400/630 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The distance between the back of the circuit breaker and the switchboard door is from 185mm to 600mm. The degrees of protection are IP55 and IK08. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.

Features:
• Estimated 40% reduction of wiring time for panel builders
• Experience easier installation thanks to a new ergonomic front-plate design
• Gain the confidence that all auxiliaries are on the right spot
• Ergonomic new toggle for easier breaker manual operation
