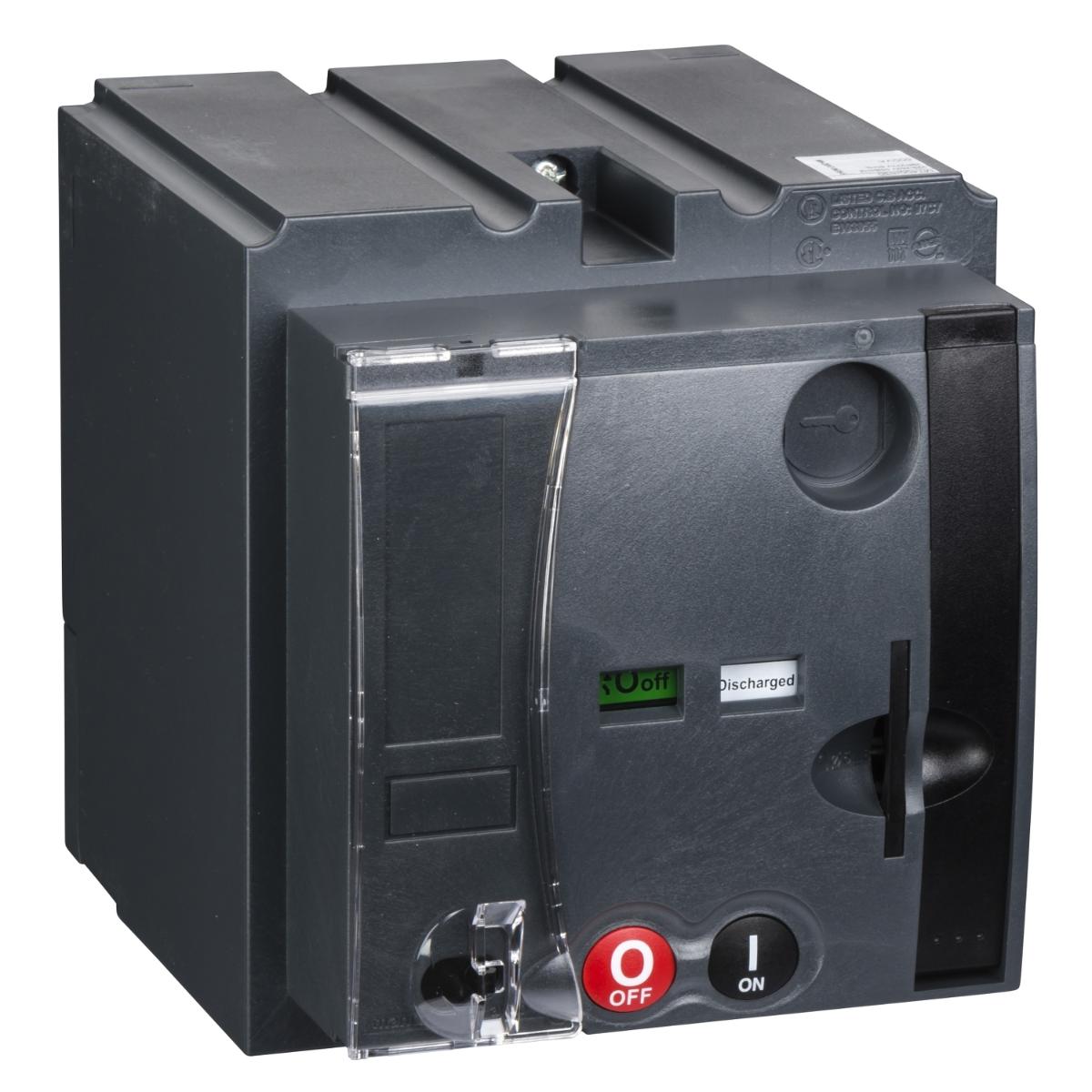

Schneider Electric LV432641 Standard motor mechanism module MT400/630, ComPacT NSX400/630, 220/240VAC 50/60Hz, 208/277VAC 60Hz

Code: SCHLV432641

Brand: Generic Brand

Unit of measure: EACH

Description

Schneider Electric LV432641 Standard motor mechanism module MT400/630, ComPacT NSX400/630, 220/240VAC 50/60Hz, 208/277VAC 60Hz

This is a communicating motor mechanism for Compact NSX 100/160 and PowerPact Multistandard H frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 220VAC to 240VAC 50/60Hz. The consumption is less than 500VA. Padlocking of the device remains possible.

Features:
• Estimated 40% reduction of wiring time for panel builders
• Experience easier installation thanks to a new ergonomic front-plate design
• Gain the confidence that all auxiliaries are on the right spot
• Ergonomic new toggle for easier breaker manual operation

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

360Image	https://visuals.se.com/LV432641_360V_ODA19/20200922T0048/360
[Uc] control circuit voltage	220...240 V AC 50/60 Hz
Device short name	MT400/630
Maximum power consumption in VA	500 VA opening
Device application	automatic spring charging
Control type	standard
Range	ComPacT
[In] rated current	630 A
Brand Name	Schneider Electric
Mounting mode	fixed
Range compatibility	ComPacT new generation NSX630 DC
Response time	< 80 ms closed
Supplier Code	LV432641
Locking options description	1 to 3 padlocks Ø 5 to Ø 8
Maximum operating frequency	4 per minute
Product or component type	motor mechanism
Control signal type	maintained
