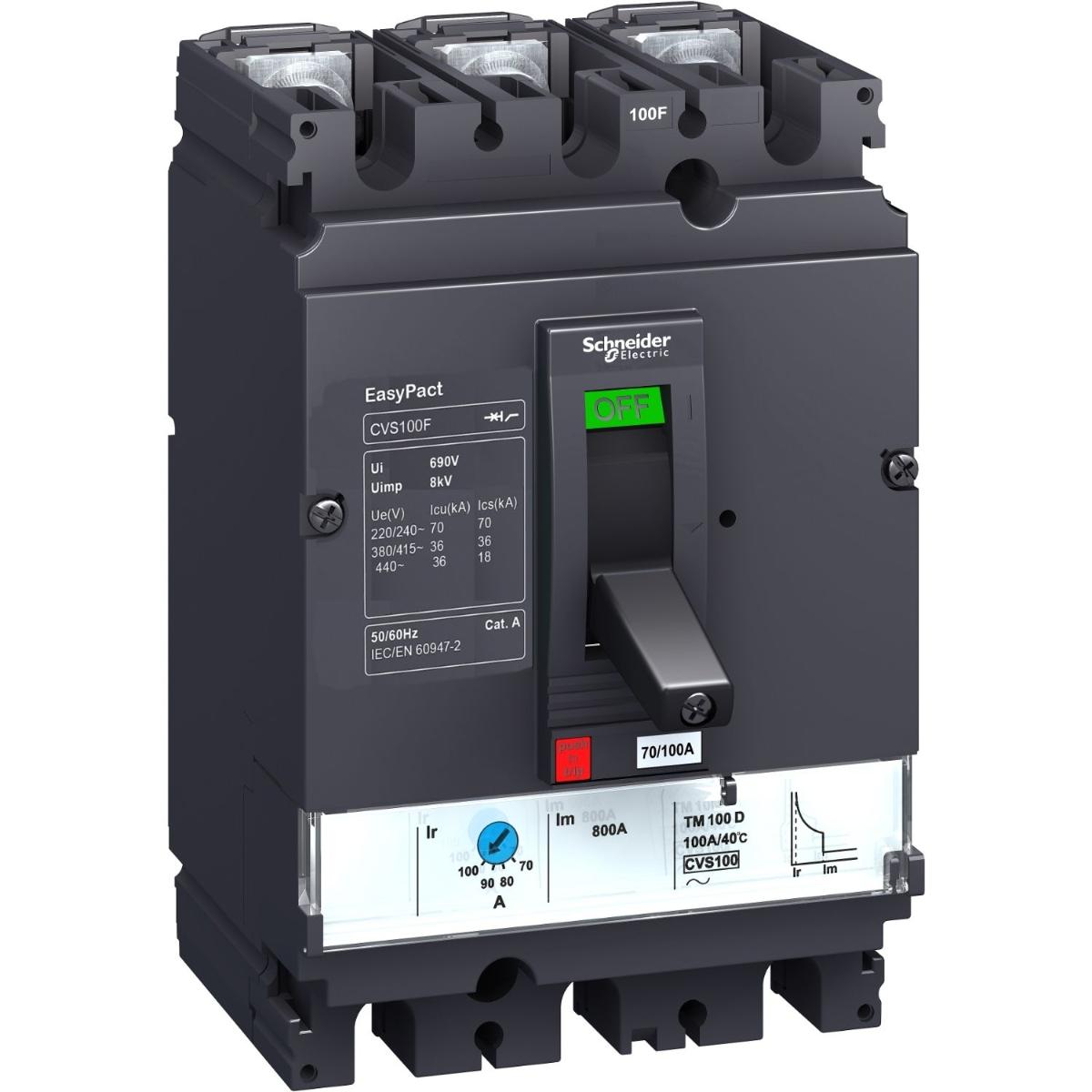

Schneider Electric EasyPact CVS circuit breaker EasyPact CVS160F, 36 kA at 415 VAC, 125 A rating thermal magnetic TM-D trip unit, 3P 3d
EasyPact CVS160F is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 125A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS160F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 3 Pole |
| Mount | Backplate |
| Long time pick-up adjustment type Ir | adjustable |
| Downside connection | front |
| Ambient air temperature for operation | -25-70 °C |
| Instantaneous pick-up adjustment type Ii | fixed |
| [Ics] rated service breaking capacity | 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Earth-leakage protection | without |
| Mounting mode | fixed |
| Breaking capacity code | F |
| Supplier Code | LV516332 |
| Connection Type | Screw Terminal |
| Ambient air temperature for storage | -50-85 °C |
| Trip unit name | TM-D |
| Network frequency | 50/60 Hz |
| Breaking Capacity | 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Protection type | short-circuit protection (magnetic) |
| Network type | AC |
| Control type | toggle |
| IP degree of protection | IP40 |
| Range | EasyPact |
| Weight | 1.8kg |
| Long time pick-up adjustment range | 0.7...1 x In |
| Electrical shock protection class | class II |
| Electrical durability | 12000 cycles 415 V In conforming to IEC 60947-2 |
| Item Name | Circuit Breaker |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Thermal protection adjustment range | 87.5-125 A |
| Current | 100A |
| Connections - terminals | screw connection |
| Trip unit rating | 125-125 A at 40 °C |
| Contact position indicator | yes |
| Standard | IEC 60947-2 |
| [In] rated current | 125 A at 40 °C |
| Connection pitch | 35mm |
| Depth | 86mm |
| Mounting support | backplate |
| Instantaneous pick-up adjustment range | 1250 A |
| Mechanical durability | 25000 cycles |
| Height | 161mm |
| Poles description | 3P |
| Width | 105mm |
| Protected poles description | 3D |
| Device short name | CVS160F |
| Compatibility code | CVS160 |
| Trip unit technology | thermal-magnetic |
| Device application | distribution |
| Standards | IEC 60947-2 |
| Product certifications | IEC |
| Brand Name | Schneider Electric |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to EN/IEC 60947-2 |
| Upside connection | front |
| Product name | EasyPact CVS |
| IP Rating | IP40 |
| Utilisation category | category A |
| Frequency | 50 - 60Hz |
| Net weight | 1.5 kg |
| Long time delay adjustment type | fixed |
| Product or component type | circuit breaker |
