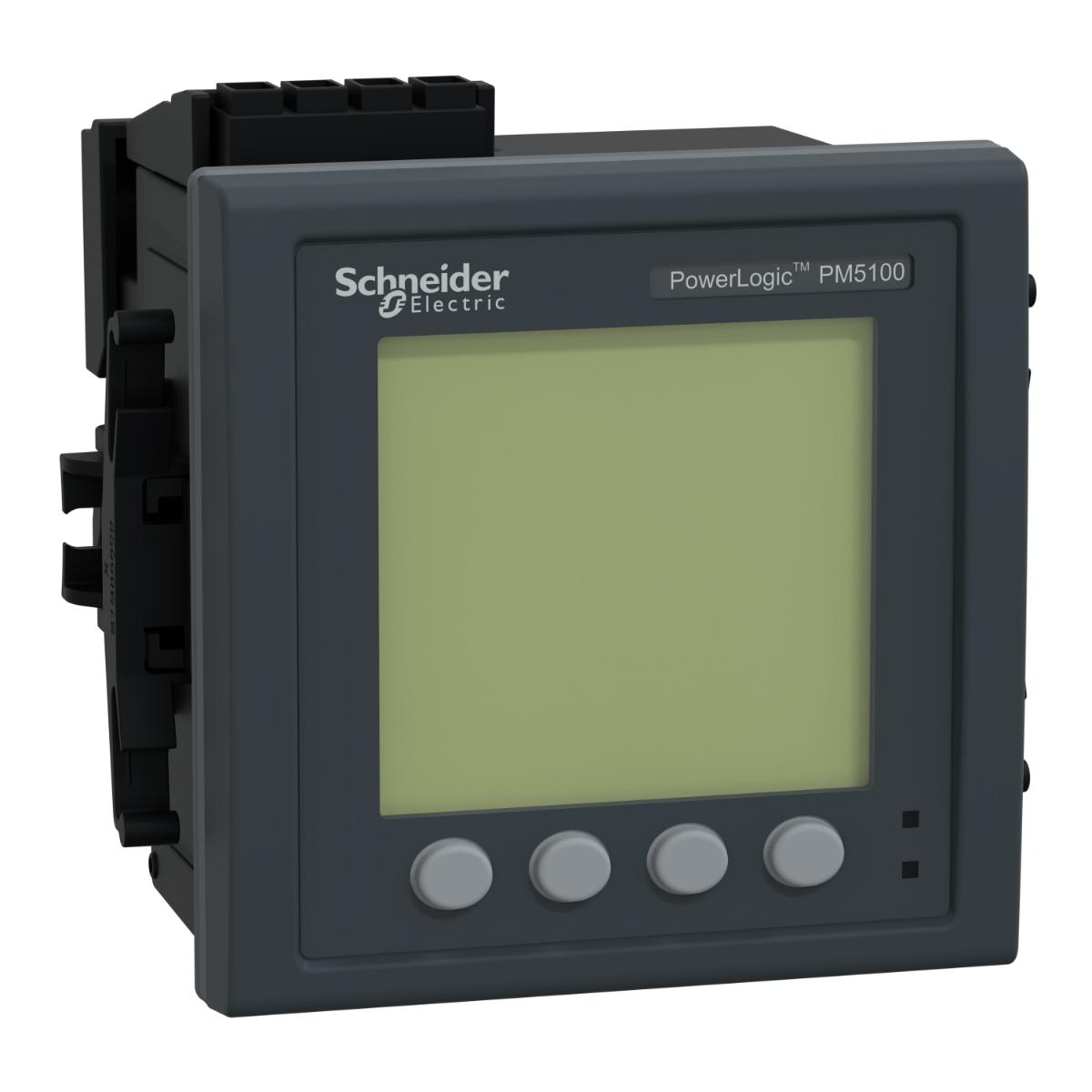

Schneider Electric METSEPM5110 power meter PowerLogic PM5110, modbus, up to 15th Harmonic, 1DO 33 alarms
Code: SCHMETSEPM5110
Unit of measure:
EACH
Description
PM5110 POWER METER 15TH H THD CL0.5 1DO
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 5-95 % at 50-50 °C non-condensing |
| [Us] rated supply voltage | 100...300 V DC |
| Frequency measurement range | 45-65 Hz |
| Data recording | min/max of instantaneous values |
| Electromagnetic compatibility | electrostatic discharge level 4 conforming to IEC 61000-4-2 |
| Accuracy class | class 0.5S active energy conforming to IEC 62053-22 |
| [In] rated current | 5 A |
| Ambient air temperature for operation | -20-70 °C display |
| Depth | 72mm |
| Mounting support | framework |
| Communication port support | RS485 |
| Mounting mode | flush-mounted |
| Type of measurement | voltage |
| Number of outputs | 1 digital |
| Supplier Code | METSEPM5110 |
| Power quality analysis | up to the 15th harmonic |
| Ambient air temperature for storage | -40-85 °C |
| Height | 96mm |
| Measurement current | 50-8500 mA |
| Poles description | 3P |
| Network frequency | 60 Hz |
| Number of inputs | 0 |
| Width | 96mm |
| Operating altitude | 2000 m CAT III |
| Ride-through time | 50 ms 125 V DC typical |
| Display type | monochrome graphic LCD |
| Device short name | PM5110 |
| Compatibility code | PM5110 |
| Analogue input type | current (impedance <= 0.3 mOhm) |
| Maximum power consumption in VA | 11 VA at 415 V |
| Device application | power monitoring |
| Communication port protocol | JBUS |
| IP degree of protection | IP30 rear: conforming to IEC 60529 |
| Range | PowerLogic |
| Measurement voltage | 20-440 V AC 45...65 Hz between phase and neutral |
| Standards | IEC 61557-12:2015 |
| Product certifications | cULus conforming to UL 61010-1 |
| Brand Name | Schneider Electric |
| Product name | PowerLogic PM5000 |
| Sampling rate | 64 samples/cycle |
| Pollution degree | 2 |
| Net weight | 380 g |
| Measurement accuracy | frequency +/- 0.05 % |
| Display resolution | 128 x 128 pixels |
| Market segment | industry cost management: cost allocation: main incomer |
| Product or component type | power meter |
| Connections - terminals | control circuit: screw terminal block2 |
