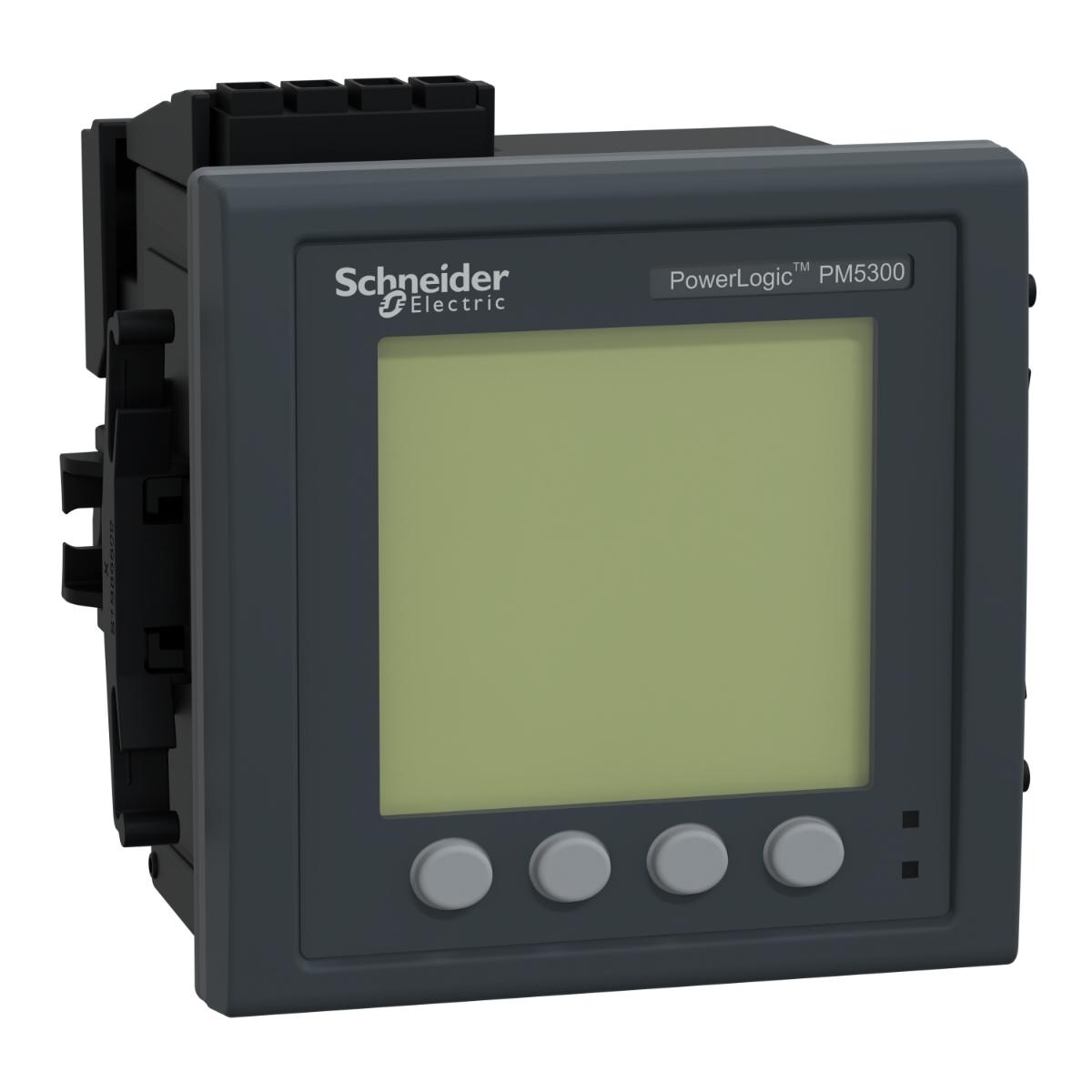

Schneider Electric METSEPM5310 power meter PowerLogic PM5310, modbus, up to 31st Harmonic, 256KB 2DI/2DO 35 alarms
Code: SCHMETSEPM5310
Unit of measure:
EACH
Description
PM5310 POWER METER 31ST H CL0.5 4T 2-IO
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 5-95 % at 50-50 °C non-condensing |
| [Us] rated supply voltage | 100...300 V DC |
| Frequency measurement range | 45-65 Hz |
| Data recording | data logs |
| Electromagnetic compatibility | voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Ambient air temperature for operation | -20-70 °C display |
| Communication port support | RS485 |
| Mounting mode | flush-mounted |
| Number of outputs | 2 digital |
| Supplier Code | METSEPM5310 |
| Ambient air temperature for storage | -40-85 °C |
| Network frequency | 60 Hz |
| Analogue input type | current (impedance <= 0.3 mOhm) |
| Maximum power consumption in VA | 11 VA at 415 V |
| Communication port protocol | JBUS |
| IP degree of protection | IP30 rear: conforming to IEC 60529 |
| Range | PowerLogic |
| Memory capacity | 256 kB |
| Pollution degree | 2 |
| Measurement accuracy | apparent energy +/- 0.5 % |
| Display resolution | 128 x 128 pixels |
| Market segment | buildings multi-site cost management: billing: sub feeder |
| Connections - terminals | relay output: screw terminal block4 |
| Accuracy class | class 0.5S active energy conforming to IEC 62053-22 |
| [In] rated current | 5 A |
| Depth | 72mm |
| Mounting support | framework |
| Type of measurement | active and reactive power |
| Power quality analysis | up to the 31st harmonic |
| Height | 96mm |
| Measurement current | 5-8500 mA |
| Poles description | 3P + N |
| Number of inputs | 2 digital |
| Width | 96mm |
| Operating altitude | 3000 m CAT II |
| Ride-through time | 100 ms 230 V AC typical |
| Display type | monochrome graphic LCD |
| Device short name | PM5310 |
| Compatibility code | PM5310 |
| Information displayed | tariff (4) |
| Device application | power monitoring |
| Measurement voltage | 20-440 V AC 45...65 Hz between phase and neutral |
| Standards | IEC 62052-31:2015 |
| Product certifications | cULus conforming to UL 61010-1 |
| Brand Name | Schneider Electric |
| Product name | PowerLogic PM5000 |
| Sampling rate | 64 samples/cycle |
| Net weight | 430 g |
| Product or component type | power meter |
