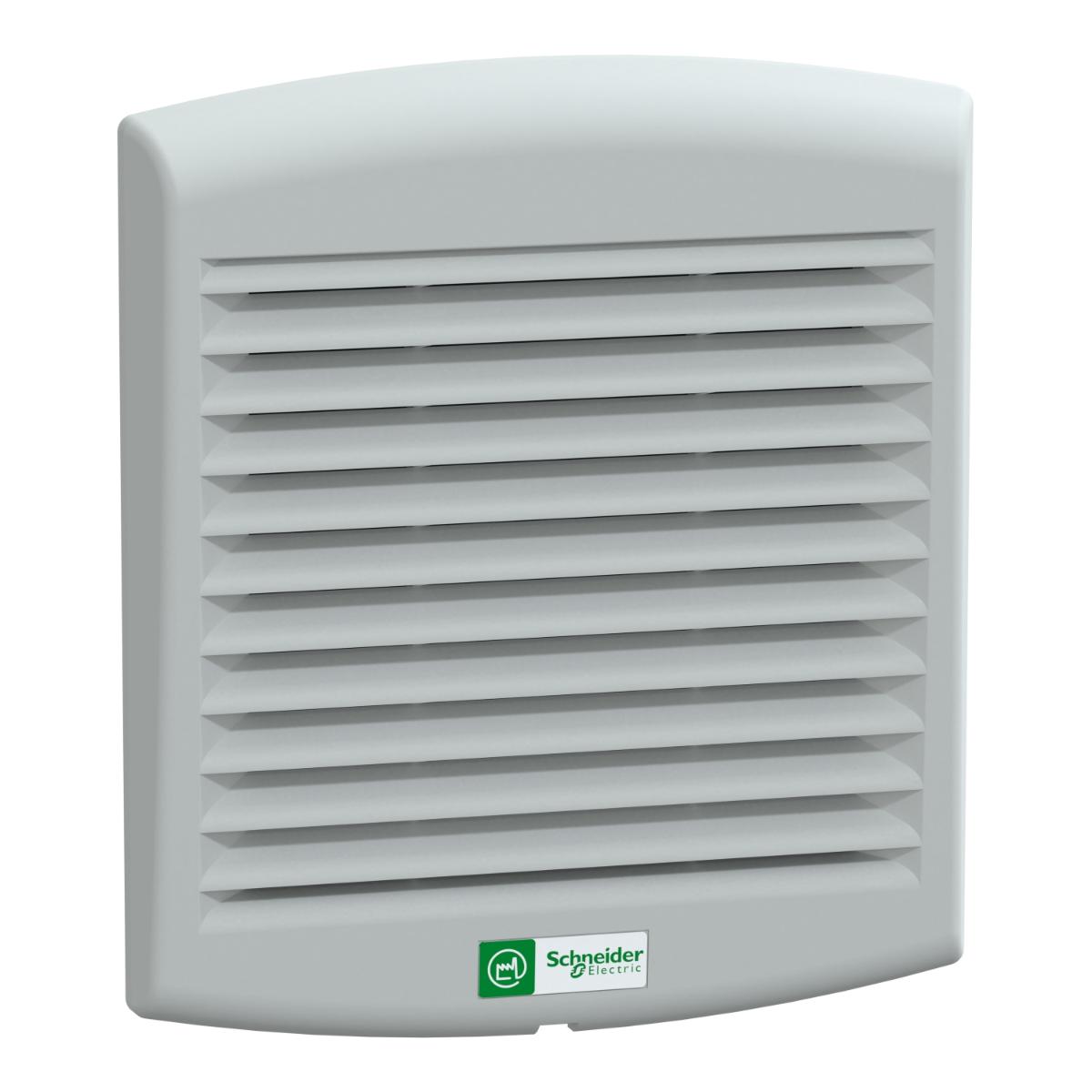

Schneider Electric NSYCVF85M230PF ClimaSys forced vent, ClimaSys, IP54, 85m3/h, 230V, with outlet grille and filter G2
Code: SCHNSYCVF85M230PF
Unit of measure:
EACH
Description
Filter Fan
Brand Name: Schneider
Width: 150 mm
Material: Thermoplastic
Voltage: 230 V
Degree of Protection: IP54
Dimensions: 170 mm Length
Air Flow Capacity: 85 cu-m/hr
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| [Us] rated supply voltage | 175...253 V |
| Input voltage | 230 V 50/60 Hz |
| Maximum pressure | 50 Pa flow rate 0 m³/h |
| Power range | 17 W 50 Hz |
| [In] rated current | 0.097-0.097 A 60 Hz |
| Ambient air temperature for operation | -20-60 °C |
| Depth | external : 62mm |
| Noise level | 46-49 dB |
| Colour | Grey |
| Bearing type | ball |
| Supplier Code | NSYCVF85M230PF |
| Voltage | 230V |
| Ambient air temperature for storage | -40-70 °C |
| Height | external: 170mm |
| Width | external: 150mm |
| Type of ventilation filter | standard |
| Cut-out dimensions | 125 x 125mm |
| Device composition | 1 outlet grille: front |
| Material | outlet grille: injected thermoplastic (ASA PC) |
| IP degree of protection | IP54 |
| Range | ClimaSys |
| Brand Name | Schneider Electric |
| Item Name | Filter Fan |
| Air flow | free flow rate with standard filter: 98 m3/h at 60 Hz |
| Product name | ClimaSys CV |
| Condition of use | filter must be cleaned and replaced regularly |
| Net weight | 0.78 kg |
| Connections - terminals | Faston connector |
| Product or component type | fan |
