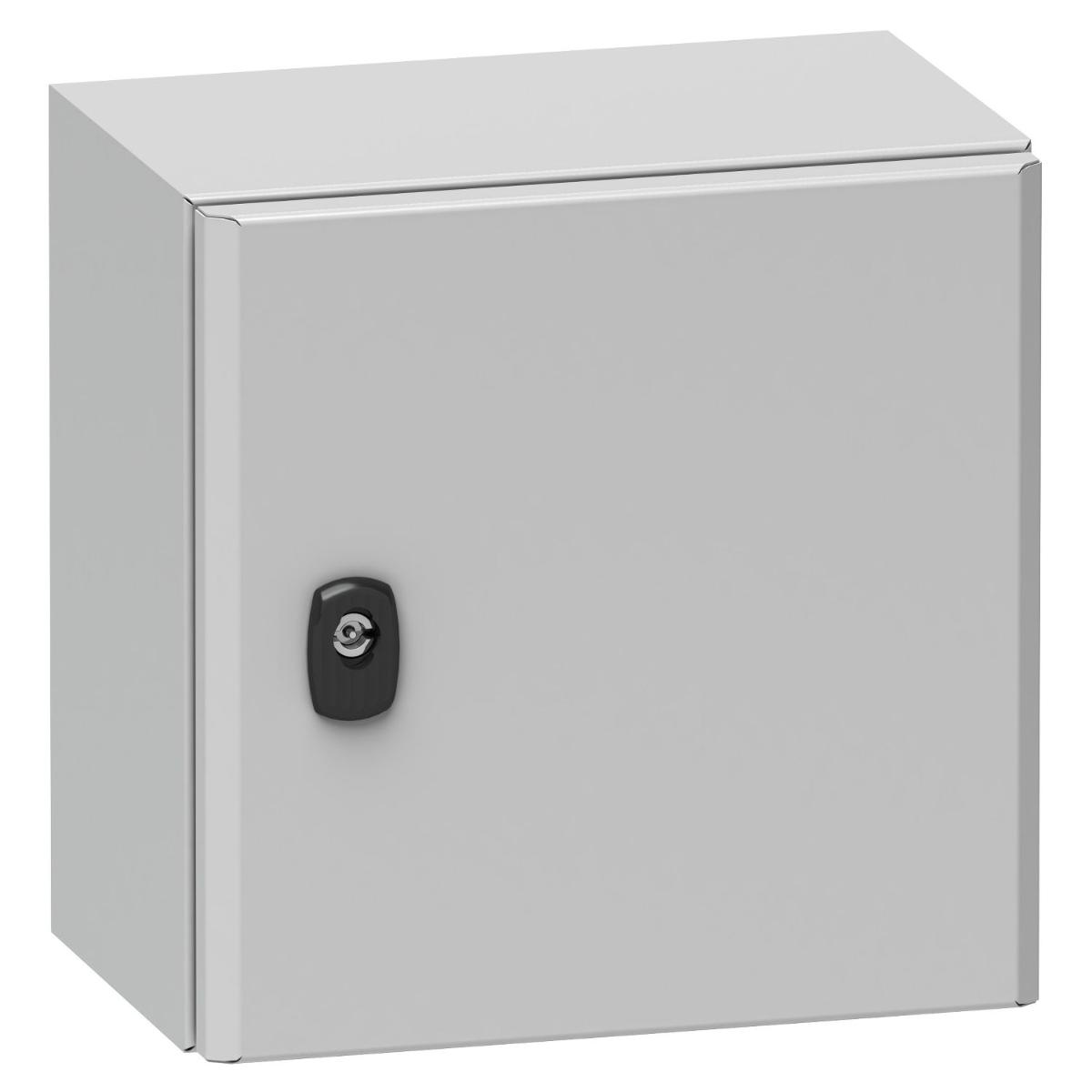

Schneider Electric NSYS3D10830P Wall mounted steel enclosure, Spacial S3D, plain door, with mounting plate, 1000x800x300mm, IP66, IK10
Code: SCHNSYS3D10830P
Unit of measure:
EACH
Description
Schneider Electric Spacial S3D Spacial S3D plain door with mount.plate. H1000xW800xD300 IP66 IK10 RAL7035.
Spacial S3D wall mounted steel enclosure with plain door. 1000 x 800 x 300 mm. Single piece body, mounting plate included. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| IK Rating | IK10 |
| Standard | IEC 62208 |
| Mounting plate description | plain |
| Depth | 300mm |
| Colour | Grey |
| Door opening side | reversible (120 °) |
| Type of gland plate | standard |
| Supplier Code | NSYS3D10830P |
| Height | 1000mm |
| Finish | Epoxy-polyester Powder |
| Width | 800mm |
| Finish/Color | Epoxy-polyester Powder |
| Lock type | 3 points lock- 3mm double-bar |
| NEMA degree of protection | NEMA 4X/13 |
| Enclosure nominal width | 800mm |
| Device application | multi-purpose |
| Device composition | 2 cable gland plate |
| Door type | plain |
| Removable parts | mounting plate by fixing element |
| Material | mounting plate: galvanised steel |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Range | PanelSeT |
| Accessibility for operation | front |
| Standards | IEC 62208 |
| Weight | 52kg |
| Variant particularity | single piece body |
| Product certifications | BV |
| Brand Name | Schneider Electric |
| Surface finish | enclosure: epoxy-polyester powder |
| Item Name | Enclosure |
| Installation accessory type | wall-mounting |
| Enclosure nominal depth | 300mm |
| Product name | PanelSeT S3D |
| IP Rating | IP66 |
| Enclosure nominal height | 1000mm |
| Net weight | 52 kg |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Number of doors | front face: 1 door(s) |
| Product or component type | compact enclosure |
