Description

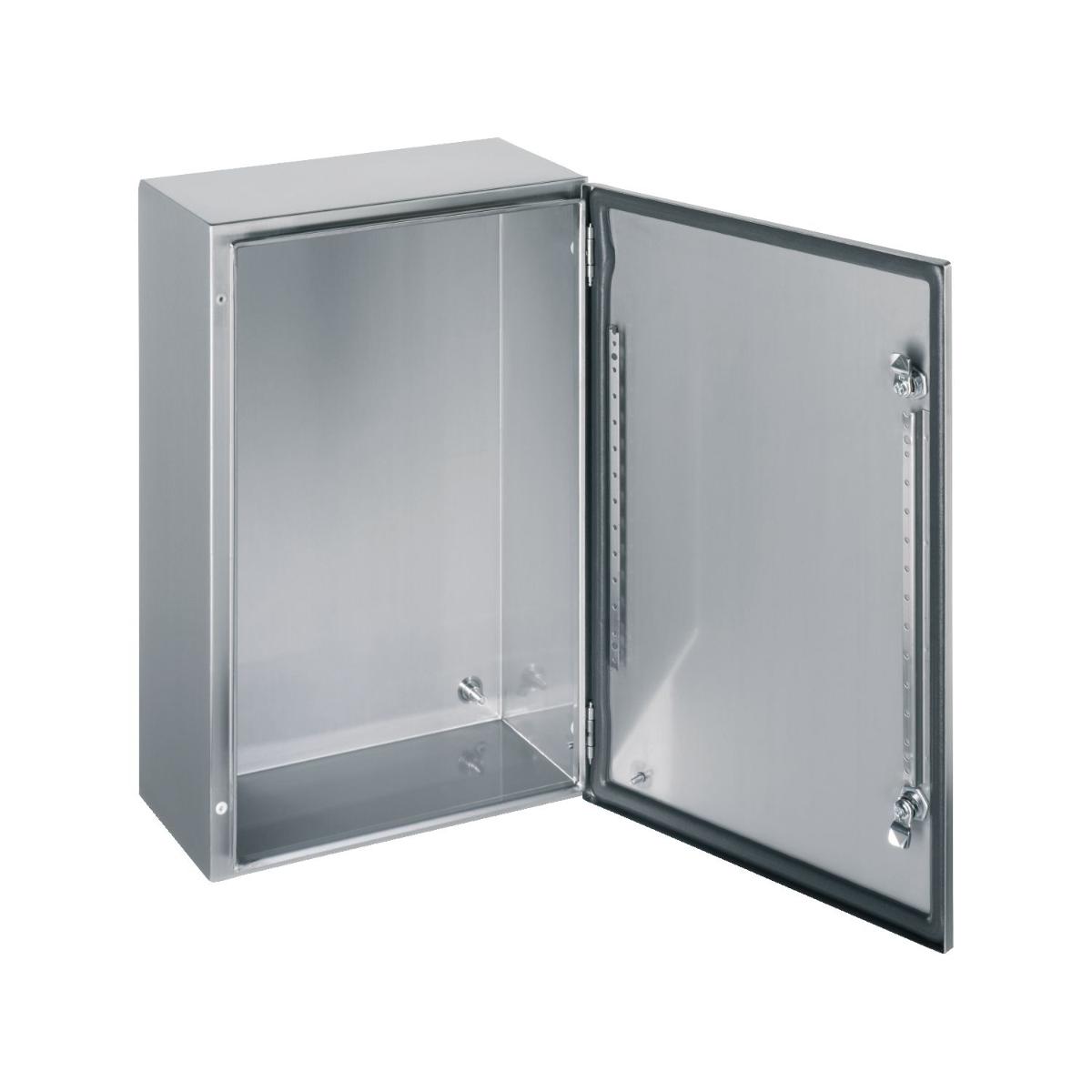

Schneider Electric Infraplus Small Office SPACIAL S3X stainless 304L, Scotch Brite® finish, H500xW400xD200 mm.
Spacial S3X compact steel enclosure with plain front door. 500 x 400 x 200 mm. Multi-purpose. Installation in wall-mounting. Gutter shaped front rail, single piece body with cross shaped structure. Without mounting plate. Handle double bar 3mm. Body and door stainless steel 304L. Protection IP 55, IK10. Enclosure Scotch-Brite® brushed finish.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| IK Rating | IK10 |
| Standard | IEC 62208 |
| Mounting plate description | without mounting plate |
| Depth | 200mm |
| Door opening side | reversible (120 °) |
| Type of gland plate | without gland plate |
| Supplier Code | NSYS3X5420 |
| Environmental characteristic | specific hygiene |
| Height | 500mm |
| Finish | Chrome |
| Width | 400mm |
| Finish/Color | Chrome |
| Lock type | 2 points lock- 3mm double-bar |
| Enclosure nominal width | 400mm |
| Device application | multi-purpose |
| Device composition | 1 lock: door |
| Door type | plain |
| Removable parts | door by hinges |
| Material | hinge: stainless steel |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Range | Spacial |
| Accessibility for operation | front |
| Standards | IEC 62208 |
| Weight | 8.05Kg |
| Product certifications | UL 508 type A |
| Brand Name | Schneider Electric |
| Thickness | 1.5mm |
| Surface finish | lock: chromium plated |
| Item Name | Panelboard |
| Body type | gutter shaped front rail |
| Installation accessory type | wall-mounting |
| Enclosure nominal depth | 200mm |
| Product name | Spacial S3X |
| IP Rating | IP66 |
| Enclosure nominal height | 500mm |
| Net weight | 8.05 kg |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Number of doors | front face: 1 door(s) |
| Product or component type | compact enclosure |
