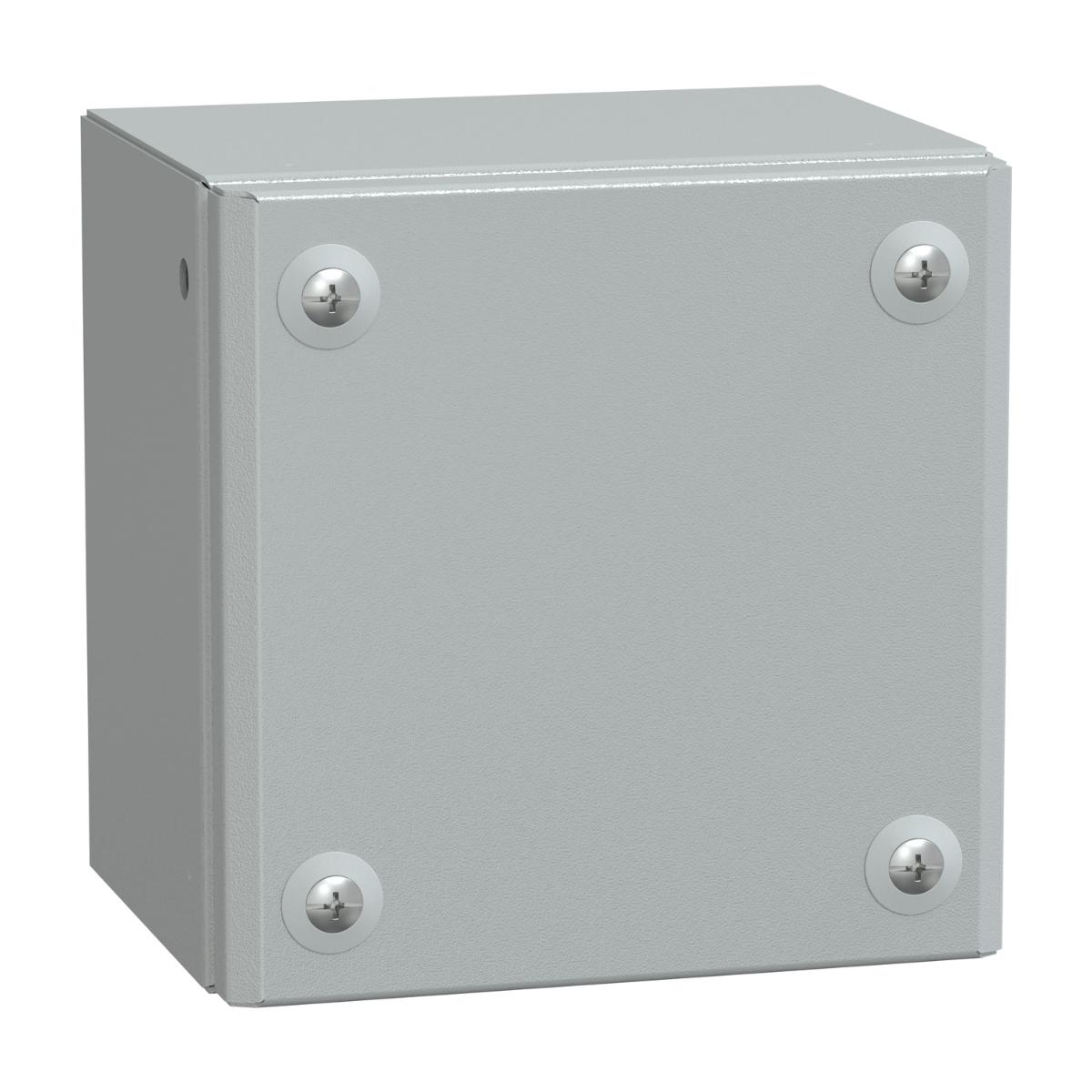

Schneider Electric NSYSBM151512 Metal industrial box plain door, Spacial SBM, H150xW150xD120 IP66 IK10 RAL 7035, Grey
Code: SCHNSYSBM151512
Unit of measure:
EACH
Description
METAL IND FLAT BOX 150X150X120
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Enclosure mounting | wall mounted |
| Cover fixing | half turn metal screw |
| Ambient air temperature for operation | -35-80 °C |
| Colour | Grey |
| Enclosure type | flat face box |
| Supplier Code | NSYSBM151512 |
| Ambient air temperature for storage | -35-60 °C |
| Lock type | captive screw PZ2 outside sealed area |
| Device short name | SBM |
| Enclosure nominal width | 150mm |
| Device application | multi-purpose |
| Device composition | 1 cover |
| Material | sheet steel |
| Removable parts | cover by captive screws |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Range | PanelSeT |
| Type of front cover | plain door |
| Standards | IEC 62208 |
| Product certifications | BV |
| Brand Name | Schneider Electric |
| Surface finish | polyester powder |
| Body type | single piece body folded and welded |
| Enclosure nominal depth | 120mm |
| Product name | PanelSeT SBM |
| Enclosure nominal height | 150mm |
| Net weight | 1.306 kg |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Product or component type | industrial box |
