THALASSA POLY ENCLOS 116X116X62MM GREY | Polycarbonate Enclosures | Enclosures & Cabinets | Industrial | All Categories

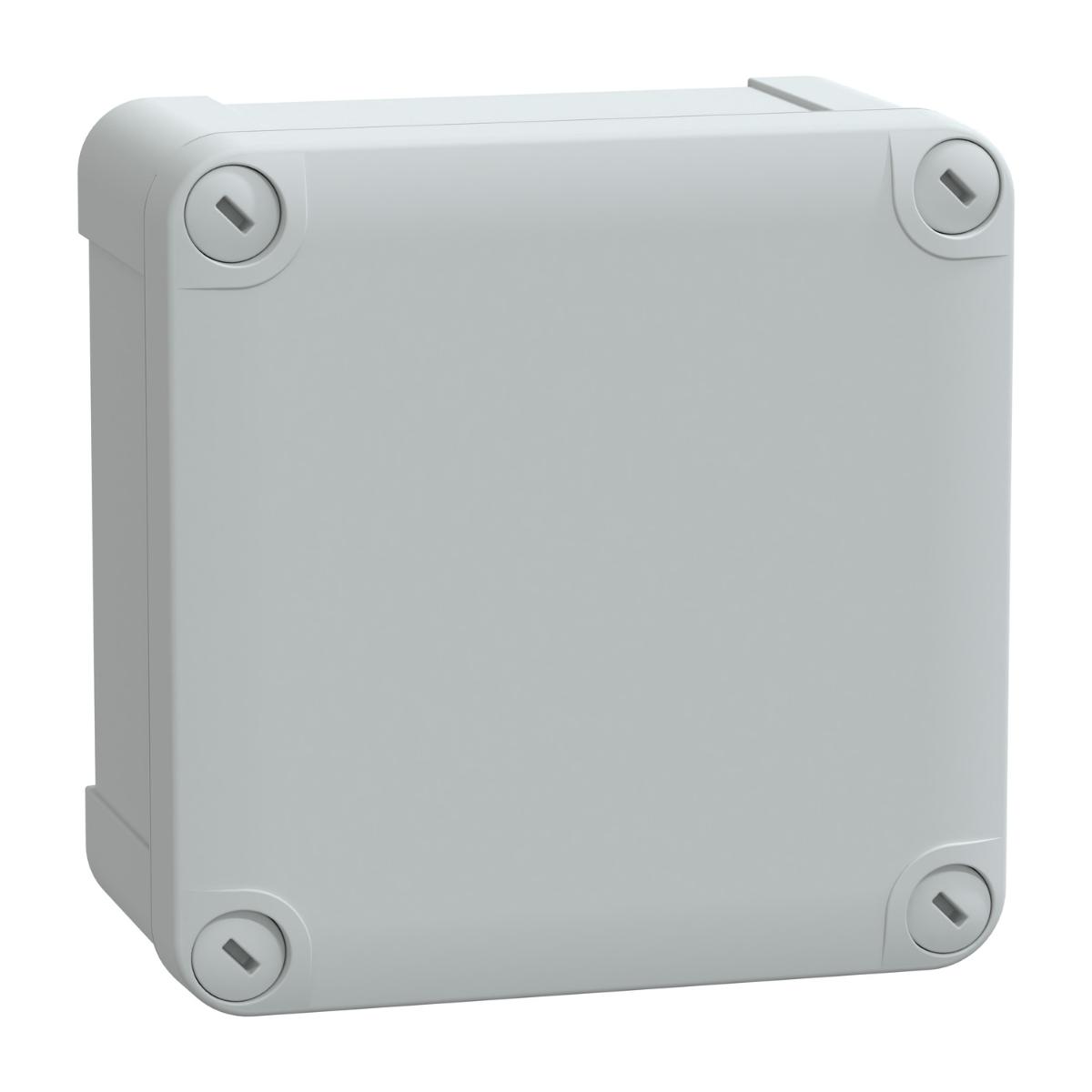

Schneider Electric NSYTBP11116 PC box, Thalassa, IP66 IK08 RAL7035 Int.H105W105D55 Ext.H116W116D62 opaque PC cover H10, Grey

Code: SCHNSYTBP11116

Brand: Schneider

Unit of measure: EACH

Description

Thalassa TBP industrial PC box with opaque PC cover H10. Int is 105 x 105 x 55 mm. Ext is 116 x 116 x 62 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

•
•

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Enclosure mounting	wall mounted
Cover fixing	plastic screws
Depth	62mm
Ambient air temperature for operation	-25-80 °C
Colour	Grey
Fire resistance	960 °C
Supplier Code	NSYTBP11116
Ambient air temperature for storage	-15-60 °C
GrosWeight	171.0 g
Height	116mm
Width	116mm
YoutubeVideo1	https://www.youtube.com/embed/yJBMWRh1S74?si=RJNjiwSvjZ6wgZu5
Internal depth	55mm
360Image	https://visuals.se.com/NSYTBP11116_360VH_ODA21/20211021T1144/360
Electrical insulation class	class II
Warranty	18 months
Lock type	captive screw flat outside sealed area
Device application	multi-purpose
Device composition	4 cover screw
Material	polycarbonate
Removable parts	cover by captive screws
Quantity per set	set of 5
IP degree of protection	IP66 conforming to NEMA 4.4X
Range	Thalassa
Internal height	105mm
Type of front cover	low plain cover
Standards	UL 508 A
Internal width	105mm
Product certifications	UL
Brand Name	Schneider Electric
Body type	one piece moulded
Volume	4831.199999999999 cm3
Length	33.0 cm
Product name	Thalassa TBP
Mounting location	outdoor (with canopy or shelter and anticondensation valve)
Net weight	0.171 kg
IK degree of protection	IK08 conforming to IEC 62262
Product or component type	industrial box
