Schneider Electric NSYTBP16128 PC box, Thalassa, IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 opaque PC cover H20, Grey

Code: SCHNSYTBP16128

Brand: Schneider

Unit of measure: EACH

Description

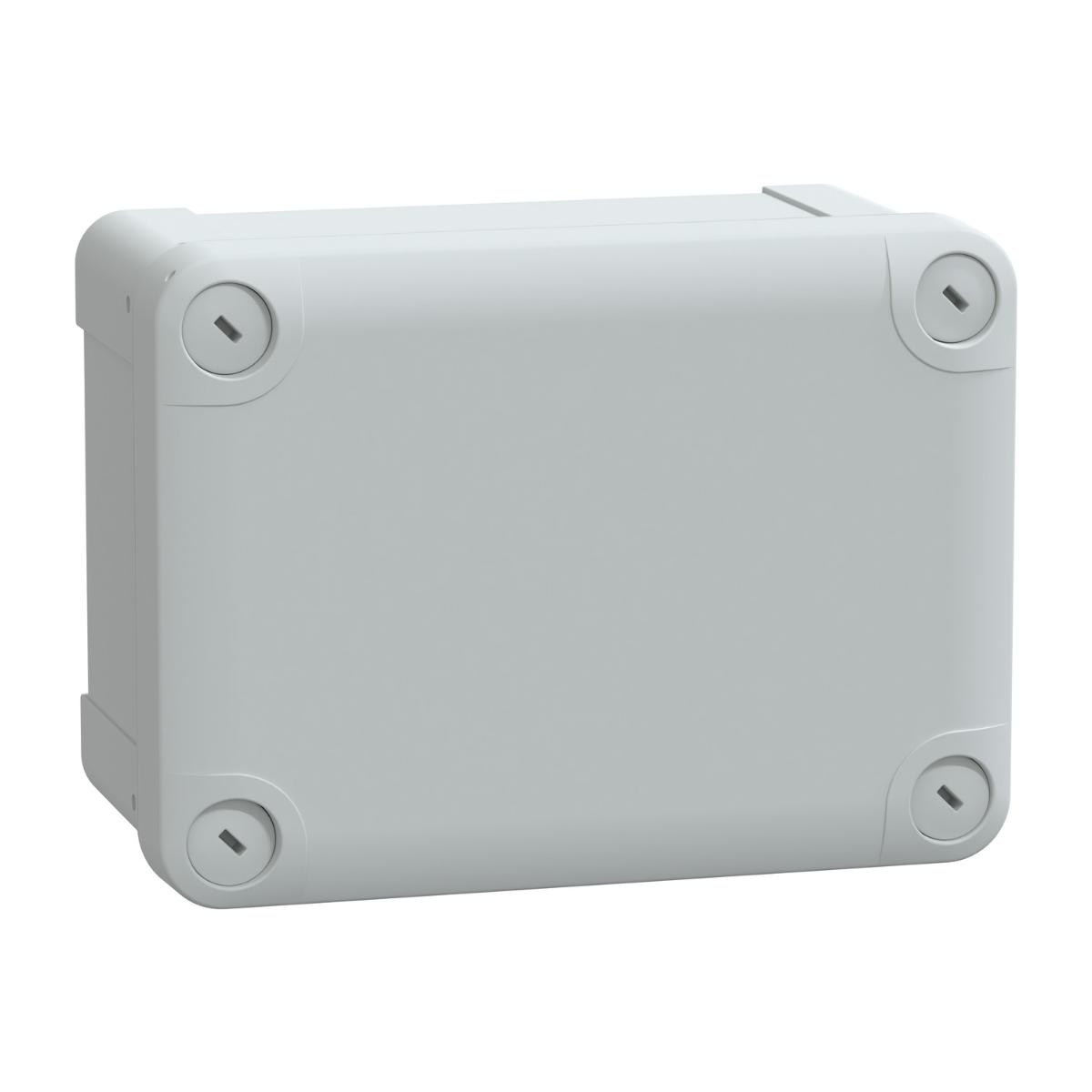

Schneider NSYTBP16128 PC box, Thalassa, IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 opaque PC cover H20

Thalassa TBP industrial PC box with opaque PC cover H20. Int is 150 x 105 x 80 mm. Ext is 164 x 121 x 87 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Features:
• Free of Substances of Very High Concern above the threshold

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Enclosure mounting	wall mounted
Cover fixing	plastic screws
Depth	87mm
Ambient air temperature for operation	-25-80 °C
Colour	Grey
Fire resistance	960 °C
Supplier Code	NSYTBP16128
Ambient air temperature for storage	-15-60 °C
Height	164mm
GrosWeight	330 g
Width	121mm
YoutubeVideo1	https://www.youtube.com/embed/yJBMWRh1S74?si=RJNjiwSvjZ6wgZu5
Internal depth	80mm
360Image	https://visuals.se.com/NSYTBP16128_360VH_ODA21/20211021T1144/360
Electrical insulation class	class II
Warranty	18 months
Lock type	captive screw flat outside sealed area
Device application	multi-purpose
Device composition	1 cover
Material	polycarbonate
Removable parts	cover by captive screws
Quantity per set	set of 2
IP degree of protection	IP66 conforming to NEMA 4.4X
Range	Thalassa
Internal height	150mm
Type of front cover	low plain cover
Standards	UL 508 A
Internal width	105mm
Product certifications	UL
Brand Name	Schneider Electric
Body type	one piece moulded
Length	16.4 cm
Volume	1726.4279999999997 cm3
Product name	Thalassa TBP
Mounting location	outdoor (with canopy or shelter and anticondensation valve)
Net weight	0.33 kg
IK degree of protection	IK08 conforming to IEC 62262
Product or component type	industrial box
