Description

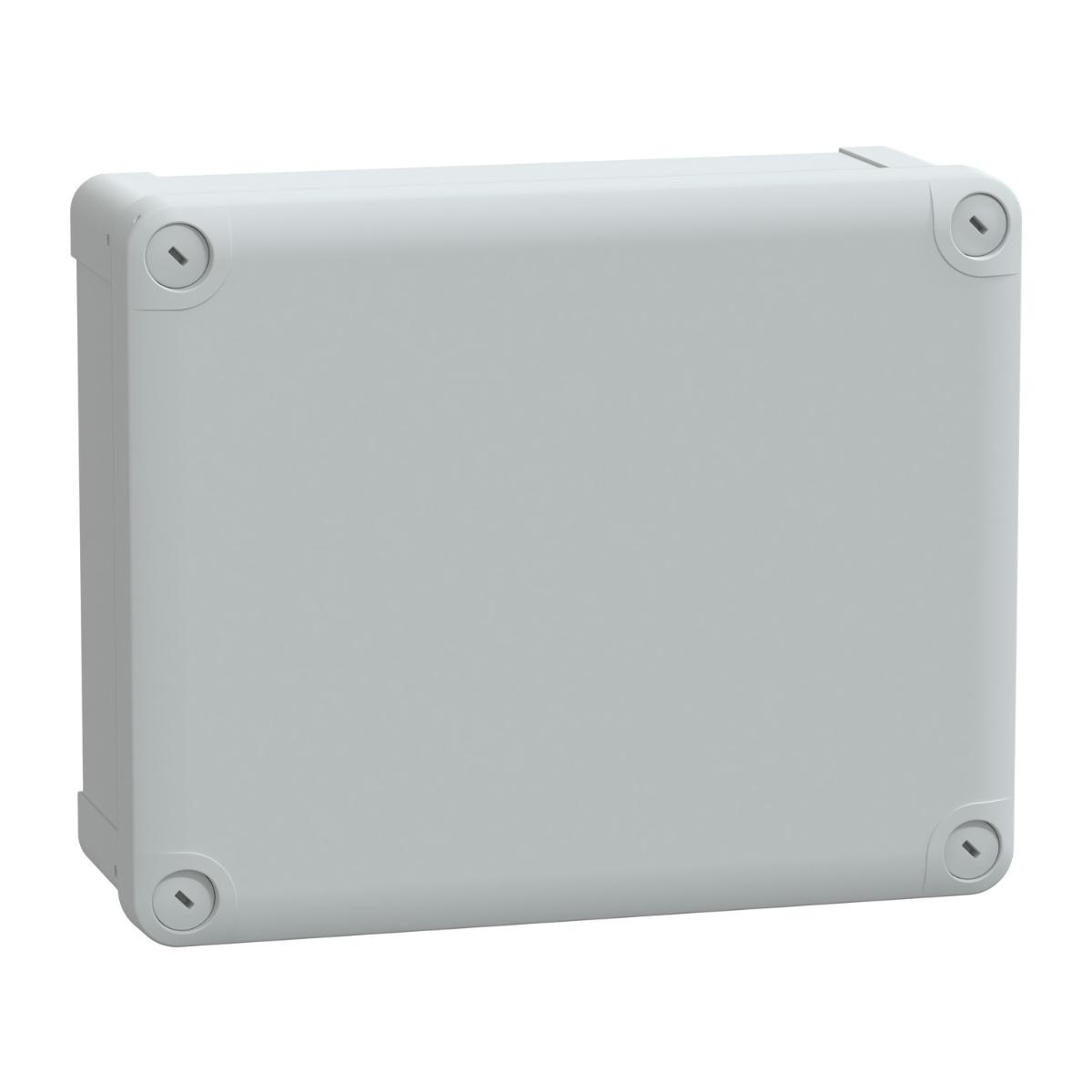

Thalassa TBP industrial PC box with opaque PC cover H20. Int is 225 x 175 x 80 mm. Ext is 241 x 194 x 194 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
Features:
• Free of Substances of Very High Concern above the threshold
•
•
•
•
•
•
•
•
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Enclosure mounting | wall mounted |
| Cover fixing | plastic screws |
| Depth | 87mm |
| Ambient air temperature for operation | -25-80 °C |
| Colour | Grey |
| Fire resistance | 960 °C |
| Supplier Code | NSYTBP24198 |
| Ambient air temperature for storage | -15-60 °C |
| GrosWeight | 699.0 g |
| Height | 241mm |
| Width | 194mm |
| Internal depth | 80mm |
| Electrical insulation class | class II |
| Warranty | 18 months |
| Lock type | captive screw flat outside sealed area |
| Device application | multi-purpose |
| Device composition | 4 cover screw |
| Material | polycarbonate |
| Removable parts | cover by captive screws |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| Range | Thalassa |
| Internal height | 225mm |
| Type of front cover | low plain cover |
| Standards | IEC 62208 |
| Internal width | 175mm |
| Product certifications | UL |
| Brand Name | Schneider Electric |
| Body type | one piece moulded |
| Volume | 5100 cm3 |
| Length | 25.5 cm |
| Product name | Thalassa TBP |
| Mounting location | outdoor (with canopy or shelter and anticondensation valve) |
| Net weight | 0.64 kg |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Product or component type | industrial box |
