THALASSA ABS ENCLOS 105X65X55MM GREY | Polycarbonate Enclosures | Enclosures & Cabinets | Industrial | All Categories

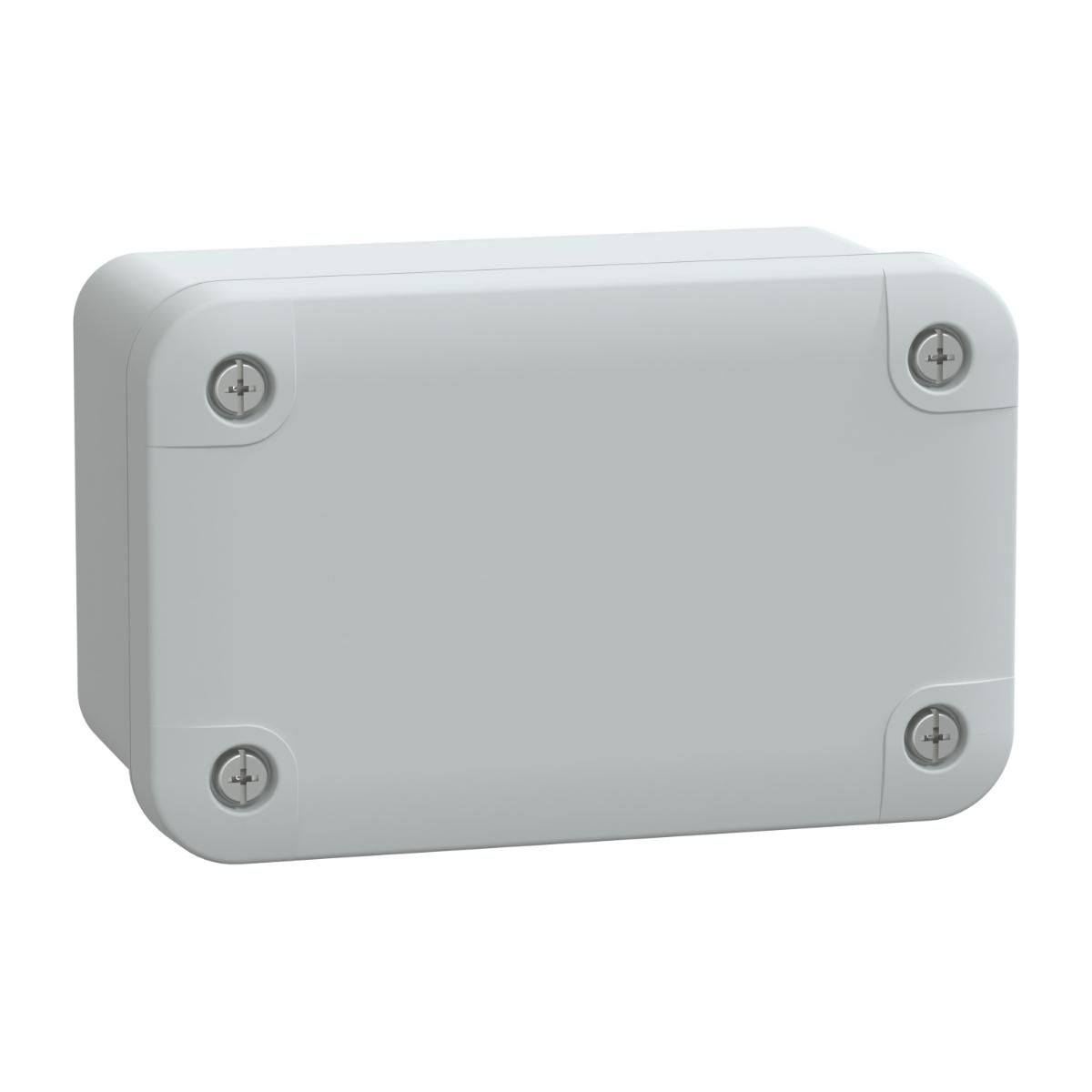

Schneider Electric NSYTBS1176 ABS box, Thalassa, IP66 IK07 RAL7035 Int.H105W65D55 Ext.H116W74D62 Opaque cover H10, Grey

Code: SCHNSYTBS1176

Brand: Schneider

Unit of measure: EACH

Description

Schneider NSYTBS1176 ABS box, Thalassa, IP66 IK07 RAL7035 Int.H105W65D55 Ext.H116W74D62 Opaque cover H10

Thalassa TBS industrial ABS box with opaque cover H10. Int is 105 x 65 x 55 mm. Ext is 116 x 74 x 62 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Features:
• Free of Substances of Very High Concern above the threshold
•
•
•
•
•
•
•
•

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Enclosure mounting	wall mounted
Standard	IEC 62208, DEMKO, SEMKO, TÃœV, RoHS
Cover fixing	metal screws
Depth	62mm
Ambient air temperature for operation	-25-60 °C
Colour	Grey
Fire resistance	650 °C conforming to IEC 60695-2-11
Supplier Code	NSYTBS1176
UNSPCS	39121324
Ambient air temperature for storage	-15-40 °C
GrosWeight	92 g
Height	116mm
Width	74mm
Internal depth	55mm
360Image	https://visuals.se.com/NSYTBS1176_360/20211001T1409/360
Electrical insulation class	class II
Warranty	18 months
Lock type	captive screw flat outside sealed area
Device application	multi-purpose
Device composition	1 cover
Removable parts	cover by captive screws
Quantity per set	set of 5
Material	ABS with 45% of post-industrial recycled content
IP degree of protection	IP66 conforming to NEMA 4.4X
Internal height	105mm
Range	Thalassa
Type of front cover	low plain cover
Standards	IEC 62208
Internal width	65mm
Product certifications	TÜV
Brand Name	Schneider Electric
Item Name	Mounting Block
Body type	one piece moulded
Volume	536.13 cm3
Length	11.5 cm
Product name	Thalassa TBS
Net weight	0.108 kg
IK degree of protection	IK07 conforming to IEC 62262
Product or component type	industrial box
