THALASSA ABS ENCLOS 138X93X72MM CLEAR | Polycarbonate Enclosures | Enclosures & Cabinets | Industrial | All Categories

Schneider Electric NSYTBS1397T ABS box, Thalassa, IP66 IK07 RAL7035 Int.H125W80D65 Ext.H138W93D72 Transp.cover H20, Transparent

Code: SCHNSYTBS1397T

Brand: Schneider

Unit of measure: EACH

Description

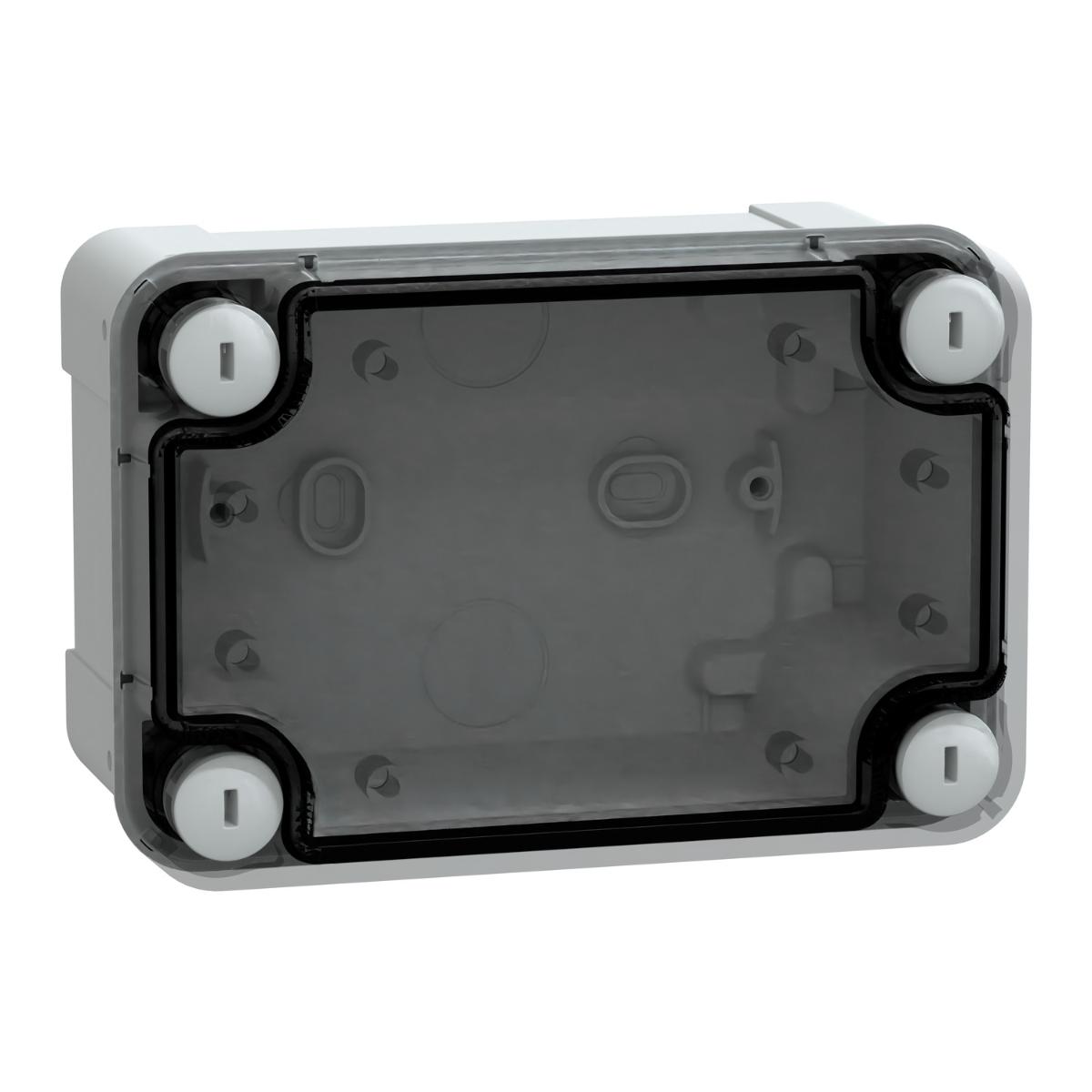

Thalassa TBS industrial ABS box with transparent cover H20. Int is 125 x 80 x 65 mm. Ext is 138 x 93 x 72 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

•
•

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Enclosure mounting	wall mounted
Cover fixing	plastic screws
Depth	72mm
Ambient air temperature for operation	-25-60 °C
Colour	Transparent
Fire resistance	650 °C conforming to IEC 60695-2-11
Supplier Code	NSYTBS1397T
Ambient air temperature for storage	-15-40 °C
Height	138mm
GrosWeight	230 g
Width	93mm
Internal depth	65mm
360Image	https://visuals.se.com/NSYTBS1397T_360/20211001T1409/360
Electrical insulation class	class II
Warranty	18 months
Lock type	captive screw flat outside sealed area
Device application	multi-purpose
Device composition	4 cover screw
Material	ABS with 45% of post-industrial recycled content
Removable parts	cover by captive screws
Quantity per set	set of 2
IP degree of protection	IP66 conforming to NEMA 4.4X
Range	Thalassa
Internal height	125mm
Type of front cover	low transparent cover
Standards	IEC 62208
Internal width	80mm
Product certifications	TÜV
Brand Name	Schneider Electric
Body type	one piece moulded
Volume	2320 cm3
Length	20 cm
Product name	Thalassa TBS
Net weight	0.23 kg
IK degree of protection	IK07 conforming to IEC 62262
Product or component type	industrial box
