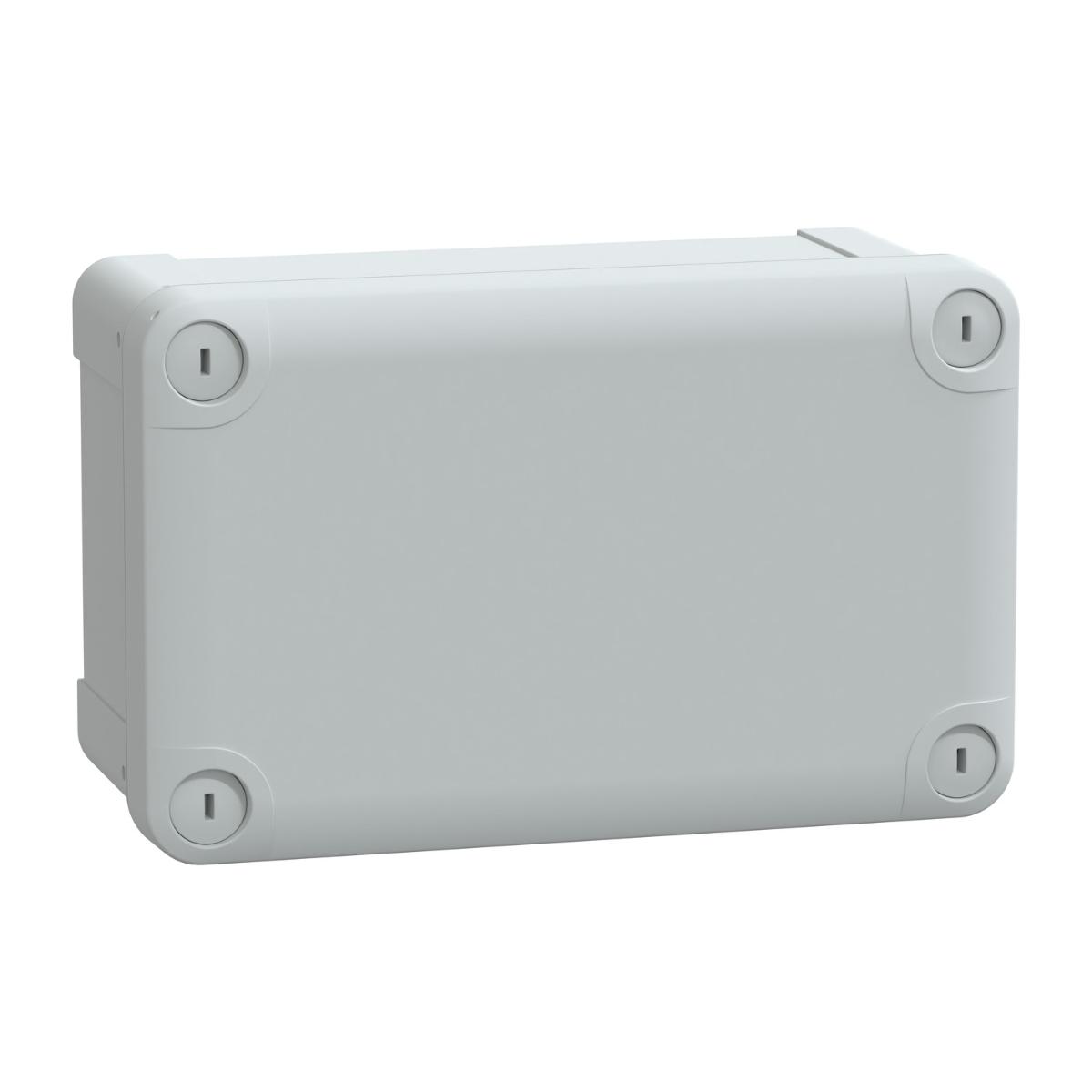

Schneider Electric NSYTBS19128 ABS box, Thalassa, IP66 IK07 RAL7035 Int.H175W105D80 Ext.H192W121D87 Opaque cover H20, Grey

Code: SCHNSYTBS19128

Brand: Schneider

Unit of measure: EACH

Description

Schneider NSYTBS19128 ABS box, Thalassa, IP66 IK07 RAL7035 Int.H175W105D80 Ext.H192W121D87 Opaque cover H20

Thalassa TBS industrial ABS box with opaque cover H20. Int is 175 x 105 x 80 mm. Ext is 192 x 121 x 87 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Features:
• Free of Substances of Very High Concern above the threshold

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Enclosure mounting	wall mounted
Standard	IEC 62208, DEMKO, SEMKO, TÃœV, RoHS
Cover fixing	plastic screws
Depth	87mm
Ambient air temperature for operation	-25-60 °C
Colour	Grey
Fire resistance	650 °C conforming to IEC 60695-2-11
Supplier ref	NSYTBS19128
Supplier Code	NSYTBS19128
Consist Of	4 x Cover Screw, 1 x Cover, 1 x Body
UNSPCS	39121324
Ambient air temperature for storage	-15-40 °C
Degree of Protection	IP66/IK07
Height	192mm
GrosWeight	335.000 g
Width	121mm
Internal depth	80mm
Temperature Rating	-25 to 60 deg C
360Image	https://visuals.se.com/NSYTBS19128_360/20211001T1409/360
Electrical insulation class	class II
Warranty	18 months
Lock type	captive screw flat outside sealed area
Device application	multi-purpose
Device composition	4 cover screw
Dimensions	192 mm Height x 121 mm Width x 87 mm Depth Outside/175 mm Height x 105 mm Width x 80 mm Depth Inside
Removable parts	cover by captive screws
Quantity per set	set of 2
Material	ABS with 45% of post-industrial recycled content
IP degree of protection	IP66 conforming to NEMA 4.4X
Internal height	175mm
Range	Thalassa
Mounting Type	Wall
Type of front cover	low plain cover
Standards	IEC 62208
Internal width	105mm
Product certifications	TÜV
Brand Name	Schneider Electric
Item Name	Industrial Box
Body type	one piece moulded
Type	RAL 7035, Multi-Purpose
Volume	2021.184 cm3
Length	19.200 cm
Product name	Thalassa TBS
Net weight	0.335 kg
Cover Type	Low Plain Opaque H20
IK degree of protection	IK07 conforming to IEC 62262
Environmental Conditions	-15 to 40 deg C
Product or component type	industrial box
