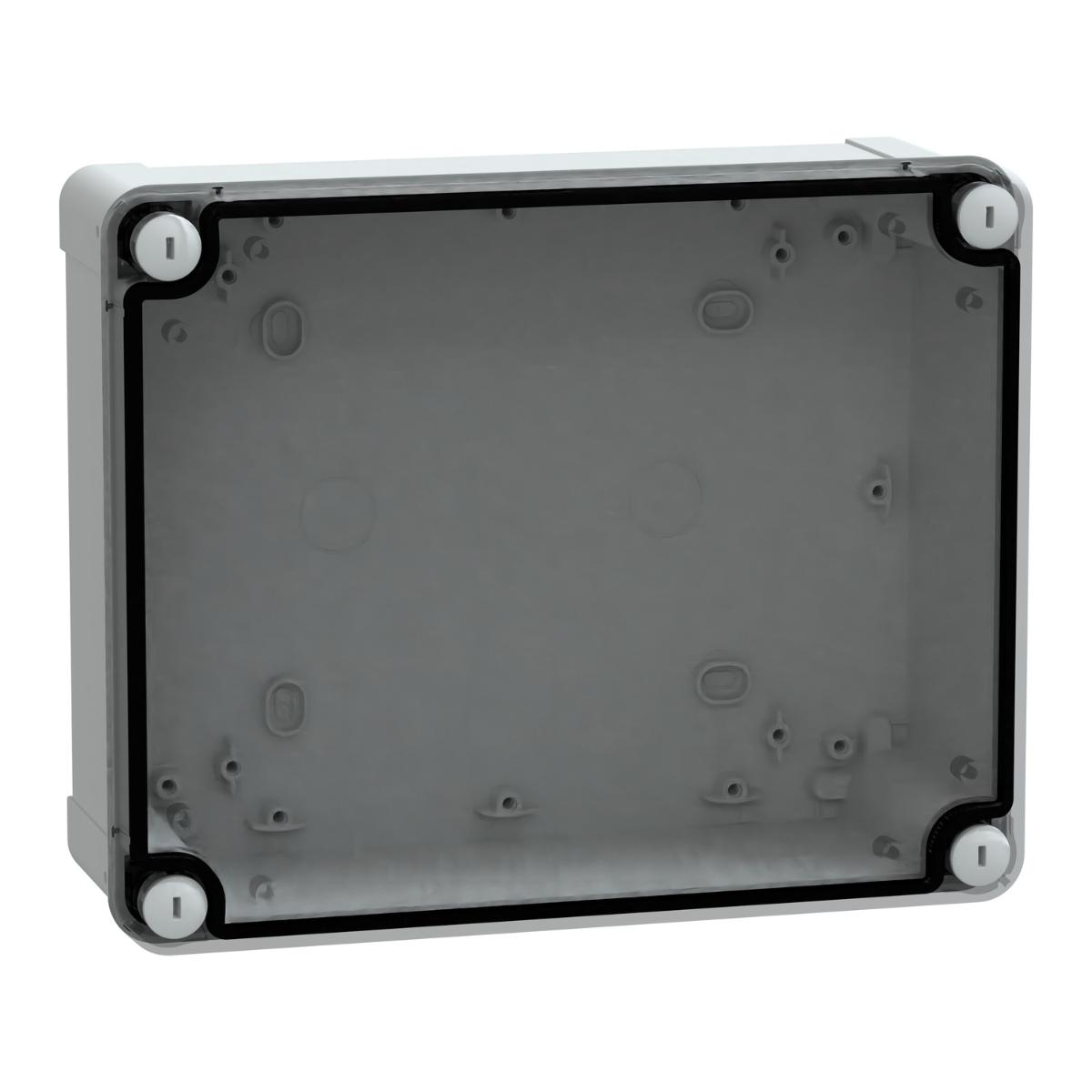

Schneider Electric NSYTBS24198T ABS box, Thalassa, IP66 IK07 RAL7035 Int.H225W175D80 Ext.H241W194D87 Transp.cover H20, Transparent
Code: SCHNSYTBS24198T
Unit of measure:
EACH
Description
ABS IND BOX 241X192X87 LO TR
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Enclosure mounting | wall mounted |
| Cover fixing | plastic screws |
| Depth | 87mm |
| Ambient air temperature for operation | -25-60 °C |
| Colour | Transparent |
| Fire resistance | 650 °C conforming to IEC 60695-2-11 |
| Supplier Code | NSYTBS24198T |
| Ambient air temperature for storage | -15-40 °C |
| Height | 241mm |
| Width | 194mm |
| Internal depth | 80mm |
| Electrical insulation class | class II |
| Lock type | captive screw flat outside sealed area |
| Device application | multi-purpose |
| Device composition | 1 cover |
| Material | ABS with 45% of post-industrial recycled content |
| Removable parts | cover by captive screws |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| Internal height | 225mm |
| Range | Thalassa |
| Type of front cover | low transparent cover |
| Standards | IEC 62208 |
| Internal width | 175mm |
| Product certifications | TÜV |
| Brand Name | Schneider Electric |
| Body type | one piece moulded |
| Product name | Thalassa TBS |
| Net weight | 0.64 kg |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Product or component type | industrial box |
