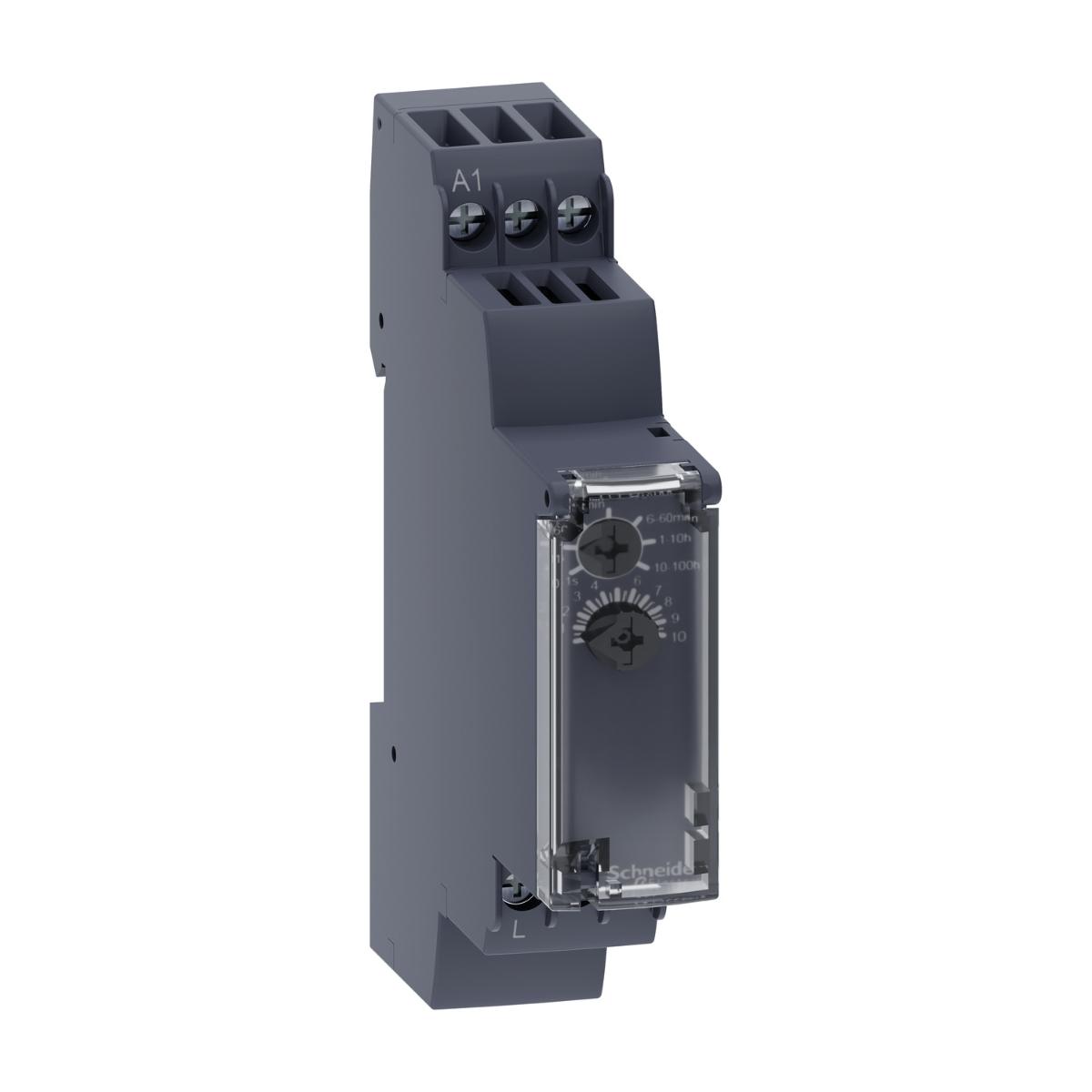

Schneider Electric RE17LAMW Modular timing relay, Harmony Timer Relays, 0.7A, 1CO, 0,1s..100h, on delay, solid state output, 24..240V AC DC
Code: SCHRE17LAMW
Unit of measure:
EACH
Description
ON DELAY TIMER 24 240 VAC
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Number of functions | 1 |
| Relative humidity | 93-93 % without condensation conforming to IEC 60068-2-30 |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Time delay type | power on-delay |
| Safety reliability data | B10d = 320000 |
| Maximum switching voltage | 250 V AC/DC |
| Electromagnetic compatibility | conducted and radiated emissions: - class B- conforming to EN 55022 |
| Creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| Ambient air temperature for operation | -20-60 °C |
| Minimum switching current | 10 mA |
| Supplier Code | RE17LAMW |
| Component name | RE17L |
| Impulse duration | 0.05 s typical |
| Output type | solid state |
| Ambient air temperature for storage | -30-60 °C |
| Discrete output type | solid state |
| Maximum leakage current | 5 mA |
| Vibration resistance | 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| Repeat accuracy | +/- 0.5 % conforming to IEC 61812-1 |
| Dielectric strength | 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1 |
| Function available | A- Power on-delay relay-1 solid state output |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Control type | without test button |
| Insulation resistance | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| IP degree of protection | IP40 (housing) conforming to IEC 60529 |
| Range | Harmony Timer Relays |
| Power consumption in VA | 0-3 VA at 240 V AC |
| Electrical durability | 100000000 cycles |
| Functionality | on-delay timing |
| Tightening torque | 0.6-1 N.m conforming to IEC 60947-1 |
| Mounting position | any position in relation to normal vertical mounting plane |
| Voltage drift | +/- 0.2 %/V |
| Derating factor | 5 mA/°C |
| Connections - terminals | screw terminals- 1 x 0.2...1 x 2.5mm² (AWG 24...AWG 14) flexible with cable end |
| Time delay range | 6...60 s |
| Maximum delay response | 100 ms |
| Setting accuracy of time delay | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Maximum output current | 20 A |
| [In] rated current | 0.7 A |
| Mounting support | 35mm DIN rail conforming to IEC 60715 |
| Maximum voltage drop | <8 V 2-wire |
| Breaking capacity | 0.7 A AC/DC at 20 °C |
| Housing material | self-extinguishing |
| Width | 17.5mm |
| Nominal output current | 0.7 A |
| Voltage range | 0.85...1.1 Us |
| [Uc] control circuit voltage | 24...240 V |
| Compatibility code | RE17 |
| Operating rate in Hz | 10 Hz |
| Marking | CE |
| Standards | 2004/108/EC |
| Product certifications | cULus |
| Temperature drift | +/- 0.05 %/°C |
| Brand Name | Schneider Electric |
| On-load factor | 100 % |
| Supply frequency | 50...60 Hz +/- 5 % |
| [Uimp] rated impulse withstand voltage | 5 kV during 1.2/50 µs |
| Reset time | 350 ms on de-energisation typical |
| Immunity to microbreaks | 20 ms |
| Maximum power consumption in W | 1.5 W at 240 V DC |
| Net weight | 0.068 kg |
| Product or component type | single function relay |
