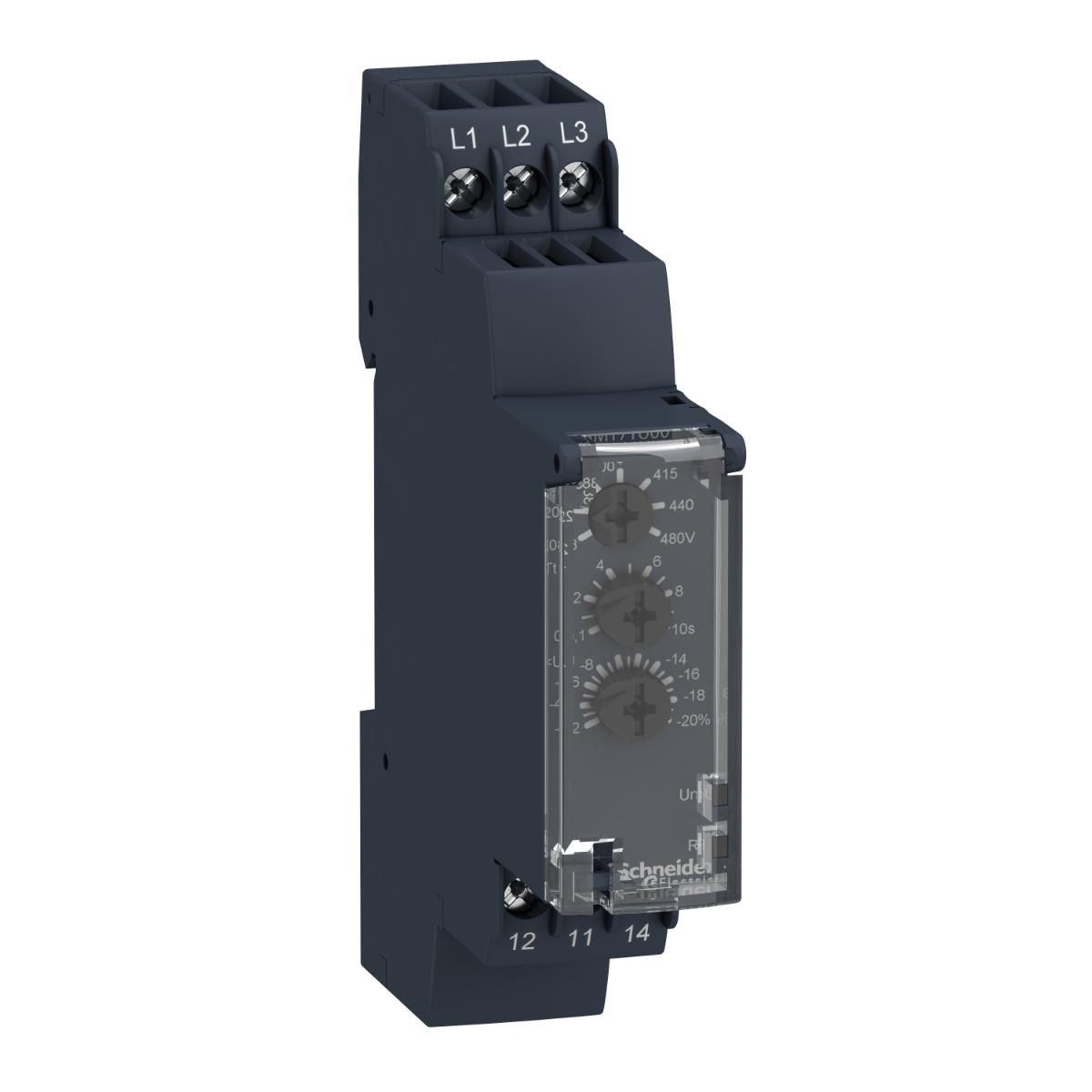

Schneider Electric RM17TA00 Modular multifunction 3-phase supply Control Relay, Harmony Control Relays, 5 A, 1 CO, 208...480 V AC
Code: SCHRM17TA00
Unit of measure:
EACH
Description
RELAY PHASE SEQ/FAIL ASYMM 208-480VAC
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 95-95 % at 55-55 °C conforming to IEC 60068-2-30 |
| [Us] rated supply voltage | - self-powered |
| Dielectric test voltage | 2 kV- 1 min AC 50 Hz conforming to IEC 60664-1 |
| Operating position | any position without derating |
| Time delay type | adjustable 0.1...10 s- +/- 10 % of the full scale value Tt- time delay upon fault |
| Safety reliability data | B10d = 470000 |
| Maximum switching voltage | 250 V AC |
| Electromagnetic compatibility | immunity for industrial environments conforming to IEC 61000-6-2 |
| Ambient air temperature for operation | -20-50 °C |
| Minimum switching current | 10 mA at 5 V DC |
| Supplier ref | RM17TA00 |
| Directives | 73/23/EEC - low voltage directive |
| Supplier Code | RM17TA00 |
| Supply voltage limits | 183-528 V AC |
| Ambient air temperature for storage | -40-70 °C |
| Hysteresis | 2-2 % |
| Vibration resistance | 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1 |
| Repeat accuracy | 3 % for time delay |
| Non-dissipating shock wave | 4 kV conforming to IEC 61000-4-5 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60255-21-1 |
| Contacts type and composition | 1 C/O |
| Control type | without test button |
| Insulation resistance | > 500 MOhm at 500 V DC conforming to IEC 60664-1 |
| IP degree of protection | IP30 (casing) conforming to IEC 60529 |
| Range | Harmony Control Relays |
| Overvoltage category | III conforming to IEC 60664-1 |
| Measurement range | 208...480 V AC |
| Power consumption in VA | 0-22 VA at 400 V AC 50 Hz |
| Electrical durability | 100000 cycles |
| Response time | < 200 ms (in the event of a fault) |
| Functionality | asymmetry |
| Local signalling | LED (yellow) for relay ON |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Tightening torque | 0.6-1 N.m conforming to IEC 60947-1 |
| Relay type | multifunction control relay |
| Connections - terminals | screw terminals- 2 x 0.2...2 x 1.5mm² (AWG 24...AWG 16) flexible with cable end |
| Output contacts | 1 C/O |
| Control circuit frequency | 50...60 Hz +/- 10 % |
| Measurement voltage limits | 183-528 V AC |
| Maximum measuring cycle | 150 ms measurement cycle as true rms value |
| Product specific application | for 3-phase supply |
| [In] rated current | 5 A |
| Mounting support | 35mm symmetrical DIN rail conforming to IEC 60715 |
| Mechanical durability | 30000000 cycles |
| Relay monitored parameters | phase failure detection |
| Maximum switching current | 5 A DC |
| Switching capacity in VA | 1250 VA |
| Housing material | self-extinguishing plastic |
| Width | 17.5mm |
| Measurement error | < 1 % over the whole range with voltage variation |
| Voltage range | 208...480 V phase to phase |
| Nominal output current | 5 A |
| [Uc] control circuit voltage | 208...480 V |
| Phase failure sensitivity | 0.7 Un |
| Compatibility code | RM17 |
| Relay name | RM17TA |
| Marking | CE |
| [Ui] rated insulation voltage | 400 V conforming to IEC 60664-1 |
| Standards | IEC 60255-1 |
| Control circuit voltage limits | - 12 % + 10 % Un |
| Product certifications | CSA |
| Brand Name | Schneider Electric |
| Supply frequency | 50/60 Hz +/- 10 % |
| Operating rate | <= 360 operations/hour full load |
| Reset time | 1500 ms time delay |
| Utilisation category | DC-13 conforming to IEC 60947-5-1 |
| Adjustment of asymmetry threshold | 5...15 % of Un selected |
| Net weight | 0.13 kg |
| Product or component type | 3-phase control relay |
| Run-up delay at power-up | 650 ms |
