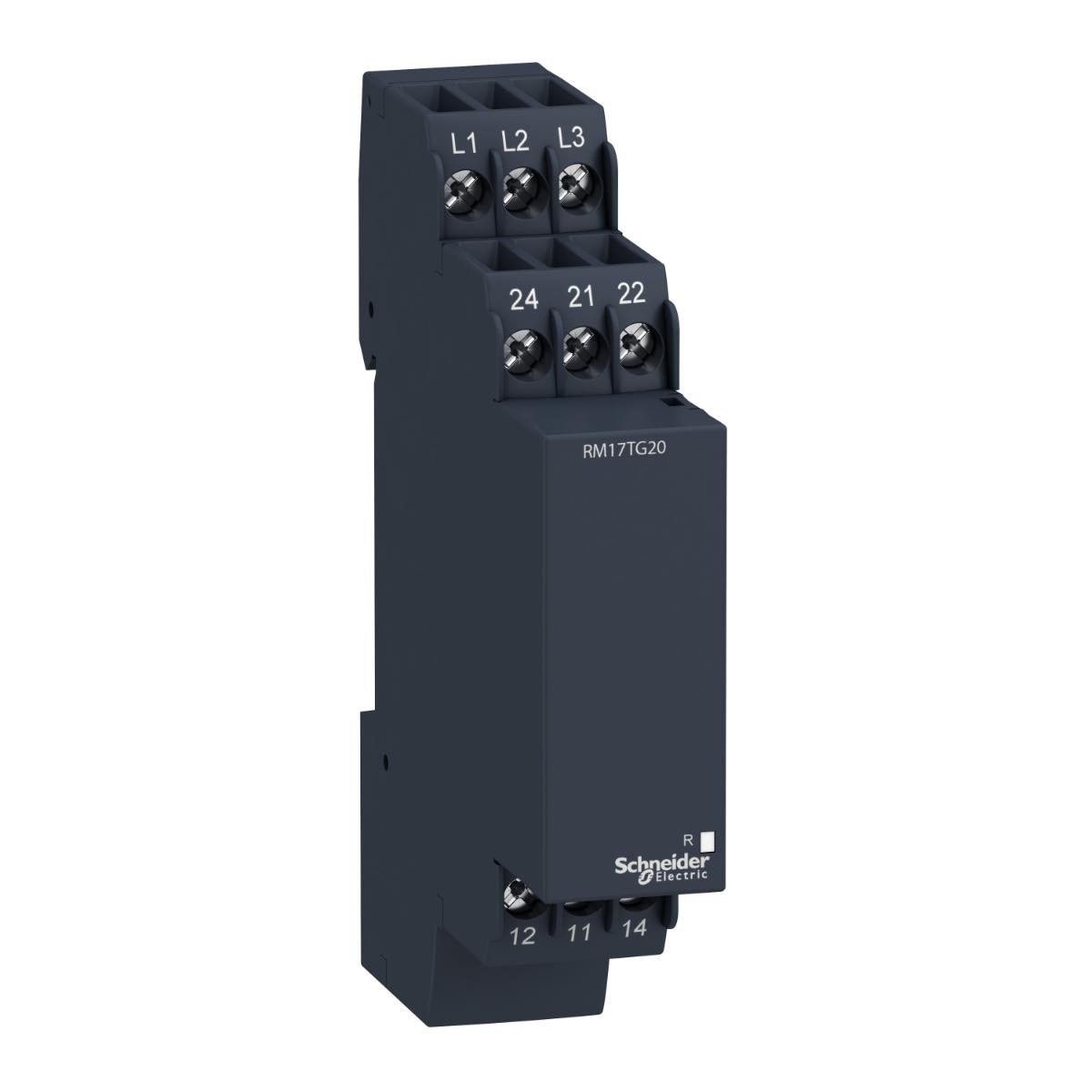

Schneider Electric RM17TG20 Modular 3 phase supply Control Relay, Harmony Control Relays, 5A, 2CO, 208...440V AC

Code: SCHRM17TG20

Brand: Schneider

Unit of measure: EACH

Description

This Harmony RM17-TG relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Features:
• Reference contains Substances of Very High Concern above the threshold
•
•

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Relative humidity	95-95 % at 55-55 °C conforming to IEC 60068-2-30
[Us] rated supply voltage	- self-powered
Dielectric test voltage	2 kV- 1 min AC 50 Hz
Operating position	any position without derating
Time delay type	without
Safety reliability data	MTTFd = 924.6 years
Maximum switching voltage	250 V DC
Electromagnetic compatibility	immunity for industrial environments conforming to IEC 61000-6-2
Ambient air temperature for operation	-20-50 °C
Minimum switching current	10 mA at 5 V DC
Current Type	AC
Supplier ref	RM17TG20
Directives	89/336/EEC - electromagnetic compatibility
Supplier Code	RM17TG20
Supply voltage limits	183-484 V AC
Ambient air temperature for storage	-40-70 °C
GrosWeight	90.000 g
YoutubeVideo1	https://www.youtube.com/embed/2fJJKGUbG-s?si=_IafyjQ9A1o6dRkj
Vibration resistance	1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1
360Image	https://visuals.se.com/RM_528_GHSCT17004/20200510T0233/360
Non-dissipating shock wave	4 kV
Warranty	18 months
Shock resistance	15 gn for 11 ms conforming to IEC 60255-21-1
Contacts type and composition	2 C/O
Control type	without test button
Insulation resistance	> 500 MOhm at 500 V DC conforming to IEC 60664-1
IP degree of protection	IP30 (casing) conforming to IEC 60529
Range	Harmony Control Relays
Overvoltage category	III conforming to IEC 60664-1
Frequency Rating	50/60 Hz
Power consumption in VA	0-22 VA at 400 V AC 50 Hz
Measurement range	208...480 V AC
Electrical durability	10000 cycles
Item Name	Control Relay
Response time	<= 130 ms (in the event of a fault)
Volume	174.018 cm3
Local signalling	LED (yellow) for relay ON
Pollution degree	3 conforming to IEC 60664-1
Tightening torque	0.6-1 N.m conforming to IEC 60947-1
Relay type	control relay
Current	5A
Connections - terminals	screw terminals- 1 x 0.2...1 x 2.5mm² (AWG 24...AWG 12) flexible with cable end
Output contacts	2 C/O
Control circuit frequency	50...60 Hz +/- 10 %
Phase	3
Measurement voltage limits	183-484 V AC
Product specific application	for 3-phase supply
Standard	CSA, UL Listed
[In] rated current	5 A
Mounting support	35mm symmetrical DIN rail conforming to IEC 60715
Mechanical durability	30000000 cycles
Voltage	208 - 480 VAC
Relay monitored parameters	phase failure detection (2 or more phase cut)
Height	2.300 cm
Switching capacity in VA	1250 VA
Housing material	self-extinguishing plastic
Width	17.5mm
Voltage range	183...484 V
Voltage detection threshold	< 100 V AC
Nominal output current	5 A
[Uc] control circuit voltage	208...440 V
Compatibility code	RM17
Relay name	RM17TG
Marking	CE
[Ui] rated insulation voltage	400 V conforming to IEC 60664-1
Standards	IEC 60255-1
Control circuit voltage limits	- 12 % + 10 % Un
Product certifications	GL
Brand Name	Schneider Electric
EAN/UPC	3389119405072
Supply frequency	50/60 Hz +/- 10 %
Type	Phase Sequence and Loss
Operating rate	<= 360 operations/hour full load
Contact Configuration	2 CO
Length	9.700 cm
Utilisation category	AC-15 conforming to IEC 60947-5-1
Net weight	0.13 kg
Product or component type	3-phase control relay
Run-up delay at power-up	650 ms
