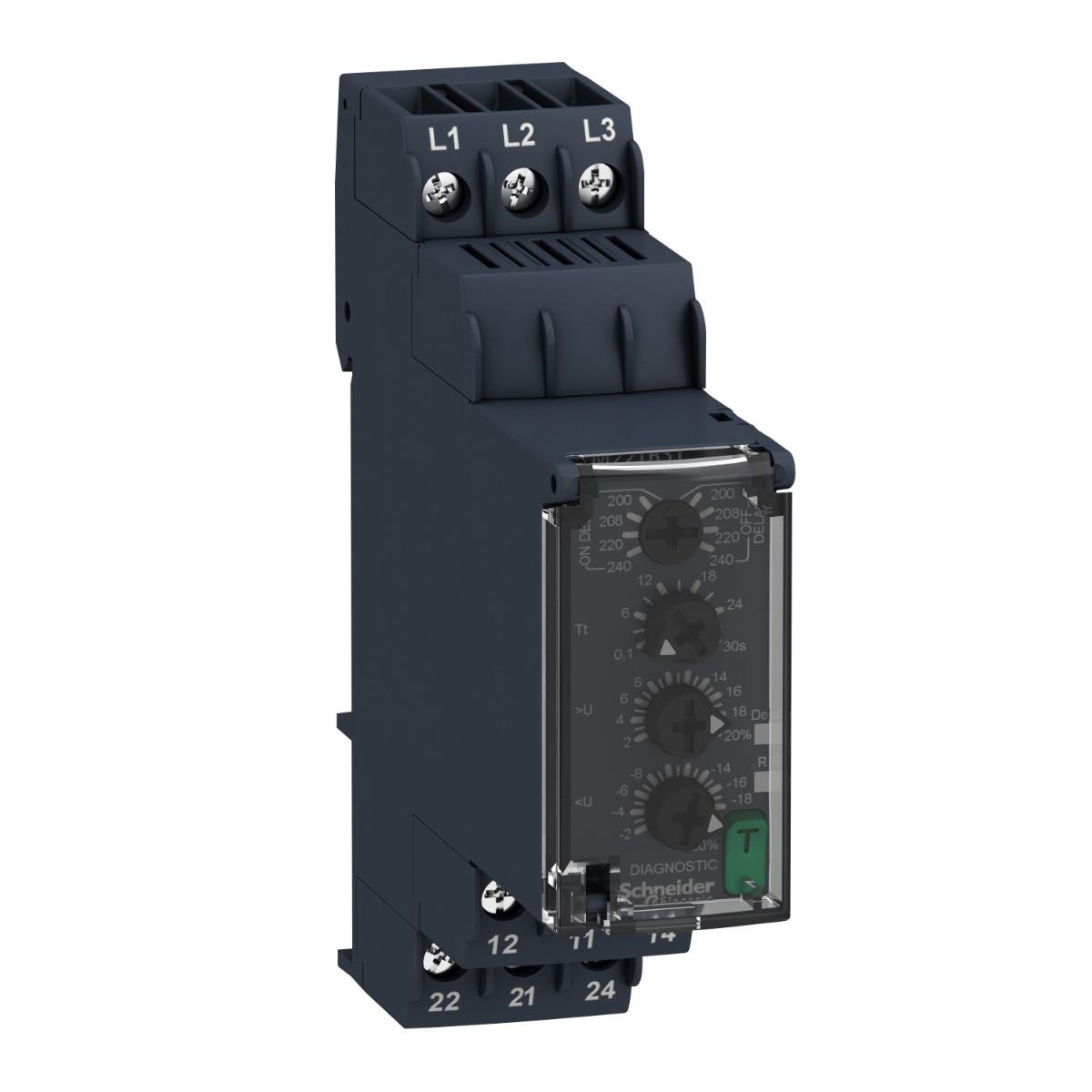

Schneider Electric RM22TR31 Harmony Control Relays 3 Phase Supply Control Relay 200-240Vac

Code: SCHRM22TR31

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider Electric RM22TR31 Harmony Control Relays 3 Phase Supply Control Relay 200-240Vac

This Harmony RM22TR control relay allows monitoring of voltage control in 3-phase networks. This modular 3-phase control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Output contacts	2 C/O
Relative humidity	93-97 % at 25-55 °C conforming to IEC 60068-2-30
Dielectric test voltage	2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27
Maximum measuring cycle	150 ms measurement cycle as true rms value
[In] rated current	8 A
Minimum switching current	10 mA at 5 V DC
Supplier Code	RM22TR31
Mechanical durability	10000000 cycles
Ambient air temperature for storage	-40-70 °C
Supply voltage limits	160-288 V AC
Switching capacity in VA	2000 VA
Width	22.5mm
YoutubeVideo1	https://www.youtube.com/embed/2fJJKGUbG-s?si=_IafyjQ9A1o6dRkj
360Image	https://visuals.se.com/RM22TR31_360/20220225T1453/360
[Uc] control circuit voltage	200...240 V
Compatibility code	RM22
Network number of phases	3 phases
Contacts type and composition	2 C/O
Contacts material	cadmium free
Control type	with test button
Insulation resistance	> 100 MOhm at 500 V DC conforming to IEC 60255-27
Range	Harmony Control Relays
Brand Name	Schneider Electric
Power consumption in VA	10-10 VA at 240 V AC 60 Hz
Threshold adjustment voltage	2...20 % of Un selected
Electrical durability	100000 cycles
Supply frequency	50...60 Hz +/- 10 %
Immunity to microbreaks	10 ms
Reset time	1500 ms at maximum voltage
Response time	<= 300 ms
IP Rating	IP50 (front panel) conforming to IEC 60529
Mounting position	any position
Tightening torque	0.6-1 N.m conforming to IEC 60947-1
Net weight	0.09 kg
Product or component type	3-phase control relay
Run-up delay at power-up	650 ms
