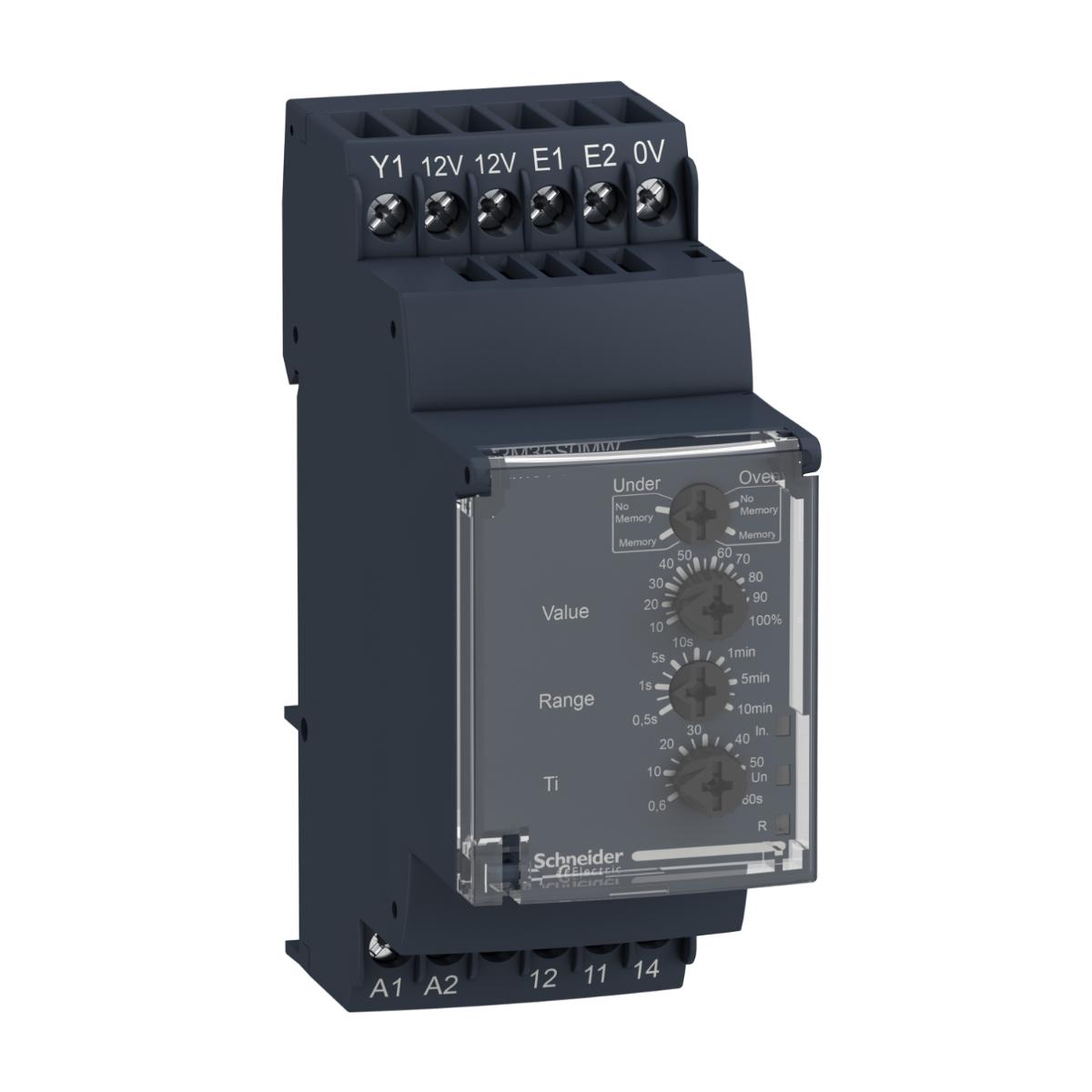

Schneider Electric RM35S0MW Modular speed Control Relay, Harmony Control Relays, 5A, 1CO, 24…240V AC DC
Code: SCHRM35S0MW
Unit of measure:
EACH
Description
SPEED CONTROL RELAY 24-240VAC/DC
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 95-95 % at 55-55 °C conforming to IEC 60068-2-30 |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz- non self-powered |
| Dielectric test voltage | 2 kV AC 50 Hz |
| Operating position | any position without derating |
| Time delay type | adjustable 0.6...60 s Ti- inhibition time delay upon startup |
| Maximum switching voltage | 250 V AC/DC |
| Electromagnetic compatibility | emission standard for residential- commercial and light-industrial environments conforming to IEC 61000-6-3 |
| Ambient air temperature for operation | -20-50 °C |
| Minimum switching current | 10 mA at 5 V DC |
| Supplier Code | RM35S0MW |
| Impulse duration | >= 5 ms low state |
| Ambient air temperature for storage | -40-70 °C |
| Supply voltage limits | 20.4-264 V AC/DC |
| Hysteresis | 5-5 % of threshold |
| Vibration resistance | 1 gn (f= 57.6-150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 |
| Repeat accuracy | +/- 0.5 % for time delay |
| Non-dissipating shock wave | 4 kV |
| Maximum power consumption in VA | 5 VA AC |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60255-21-1 |
| Contacts type and composition | 1 C/O |
| Insulation resistance | > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1 |
| Control type | without test button |
| IP degree of protection | IP30 (casing) conforming to IEC 60529 |
| Range | Harmony Control Relays |
| Overvoltage category | III conforming to IEC 60664-1 |
| Measurement range | 0.05...600 s |
| Electrical durability | 100000 cycles |
| Response time | 15 ms max (on crossing the threshold) |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Tightening torque | 0.6-1 N.m conforming to IEC 60947-1 |
| Maximum supply current for sensors | 40 mA for < 24 V DC at 25 °C |
| Measurement accuracy | +/- 10 % of the full scale value |
| Relay type | speed control relays |
| Connections - terminals | screw terminals- 1 x 0.2...1 x 2.5mm² (AWG 24...AWG 12) flexible with cable end |
| Time delay range | 0.6...60 s adjustable on energisation delay (tolerance: 0...10 % of the full scale value) |
| Output contacts | 1 C/O |
| Input compatibility | voltage input (E1)- 0...30 V- 9.5 kOhm- high state >= 4.5 V low state <= 1 V |
| [In] rated current | 5 A |
| Mounting support | 35mm symmetrical DIN rail conforming to IEC 60715 |
| Mechanical durability | 30000000 cycles |
| Polarity | reversible polarity on DC supply |
| Relay monitored parameters | underspeed |
| Threshold setting | 10...100 % |
| Switching capacity in VA | 1250 VA |
| Housing material | self-extinguishing plastic |
| Width | 35mm |
| Measurement error | < +/- 1 % over the whole range with voltage variation |
| Status LED | 1 LED yellow for relay (R) |
| Input frequency | 0.0017-20 Hz |
| Nominal output current | 5 A |
| [Uc] control circuit voltage | 24...240 V |
| Compatibility code | RM3 |
| Contacts material | cadmium free |
| Relay name | RM35S |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60664-1 |
| Marking | CE : 73/23/EEC |
| Standards | IEC 60255-6 |
| Control circuit voltage limits | - 15 % + 10 % Un |
| Product certifications | GL |
| Brand Name | Schneider Electric |
| Supply frequency | 50/60 Hz +/- 10 % |
| Operating rate | <= 360 operations/hour full load |
| Reset time | 1 s supply Un in memory mode on time delay |
| Immunity to microbreaks | 50 ms |
| Utilisation category | DC-14 conforming to IEC 60947-5-1 |
| Maximum power consumption in W | 3 W DC |
| Product or component type | speed control relay |
| Run-up delay at power-up | 0.05 s |
