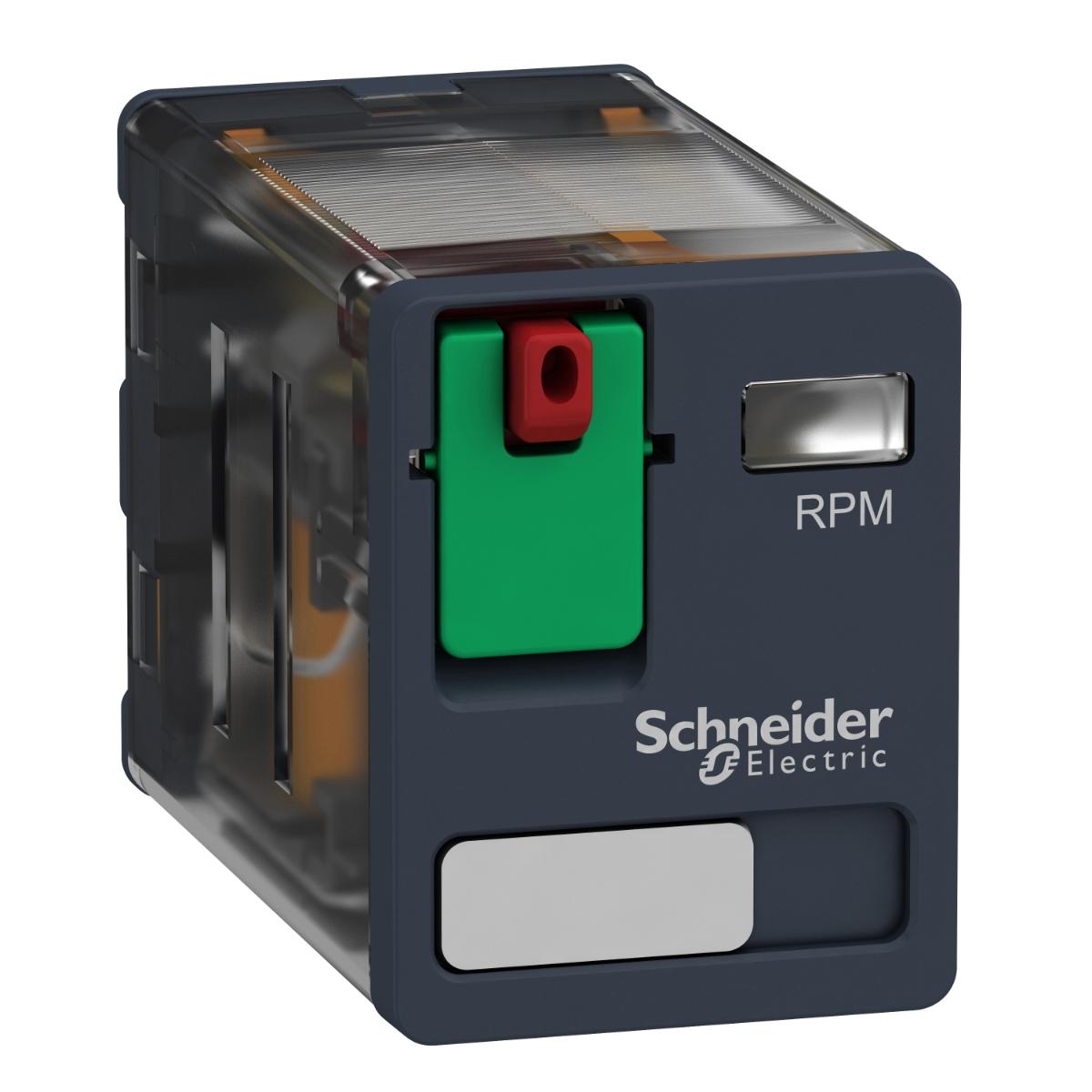

Schneider Electric RPM21P7 plug-in relay, Harmony electromechanical relays, 15A, 2CO, lockable test button, 230V AC

Enter postcode to see stock

Code: SCHRPM21P7

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider Electric RPM21P7 plug-in relay, Harmony electromechanical relays, 15A, 2CO, lockable test button, 230V AC

This Harmony RPM power plug-in relay has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs).

Features:
• Flexibility to meets most industrial applications
• Pre-assembled to simplify selection and installation
• Simplicity of use with test button and visual indicators
• Mechanical durability of 10 million cycles

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Drop-out voltage threshold	>= 0.15 Uc AC
Rated operational voltage limits	184...253 V AC
Safety reliability data	B10d = 100000
Operating position	any position
Maximum switching voltage	250 V conforming to IEC
Series name	Power
Protection category	RT I
[In] rated current	15 A
Ambient air temperature for operation	-40-55 °C
Utilisation coefficient	20 %
Supplier Code	RPM21P7
Mechanical durability	10000000 cycles
Ambient air temperature for storage	-40-85 °C
Load current	15 A at 28 V DC
Vibration resistance	5 gn- amplitude = +/- 1mm (f = 10-150 Hz)5 cycles not operating
Status LED	without
[Ithe] conventional enclosed thermal current	15 A at -40-55 °C
Operating time	20 ms at nominal voltage
Average resistance	16270 Ohm at 20 °C +/- 15 %
Dielectric strength	2000 V AC between coil and contact with reinforced
[Uc] control circuit voltage	230 V
Device short name	RPM
Compatibility code	RPM
Shock resistance	30 gn for not operating
Contacts type and composition	2 C/O
Contacts material	AgNi
YoutubeVideo	https://www.youtube.com/embed/tBG9lxwItqk?si=ti_fFv5ro9C8jg2y
Control type	lockable test button
[Ui] rated insulation voltage	300 V conforming to UL
IP degree of protection	IP40 conforming to IEC 60529
Range	Harmony Electromechanical Relays
Standards	CSA C22.2 No 14
Product certifications	CSA
Shape of pin	flat
Brand Name	Schneider Electric
Electrical durability	100000 cycles for resistive load
Device presentation	complete product
[Uimp] rated impulse withstand voltage	4 kV during 1.2/50 µs
Operating rate	<= 18000 cycles/hour no-load
Reset time	20 ms at nominal voltage
Minimum switching capacity	170 mW at 10 mA- 17 V
Average coil consumption in VA	1.1 at 60 Hz
Maximum switching capacity	420 W
Pollution degree	3
Net weight	0.036 kg
Test levels	level A group mounting
[Ie] rated operational current	7.5 A at 250 V (AC) NC conforming to IEC
Product or component type	plug-in relay
