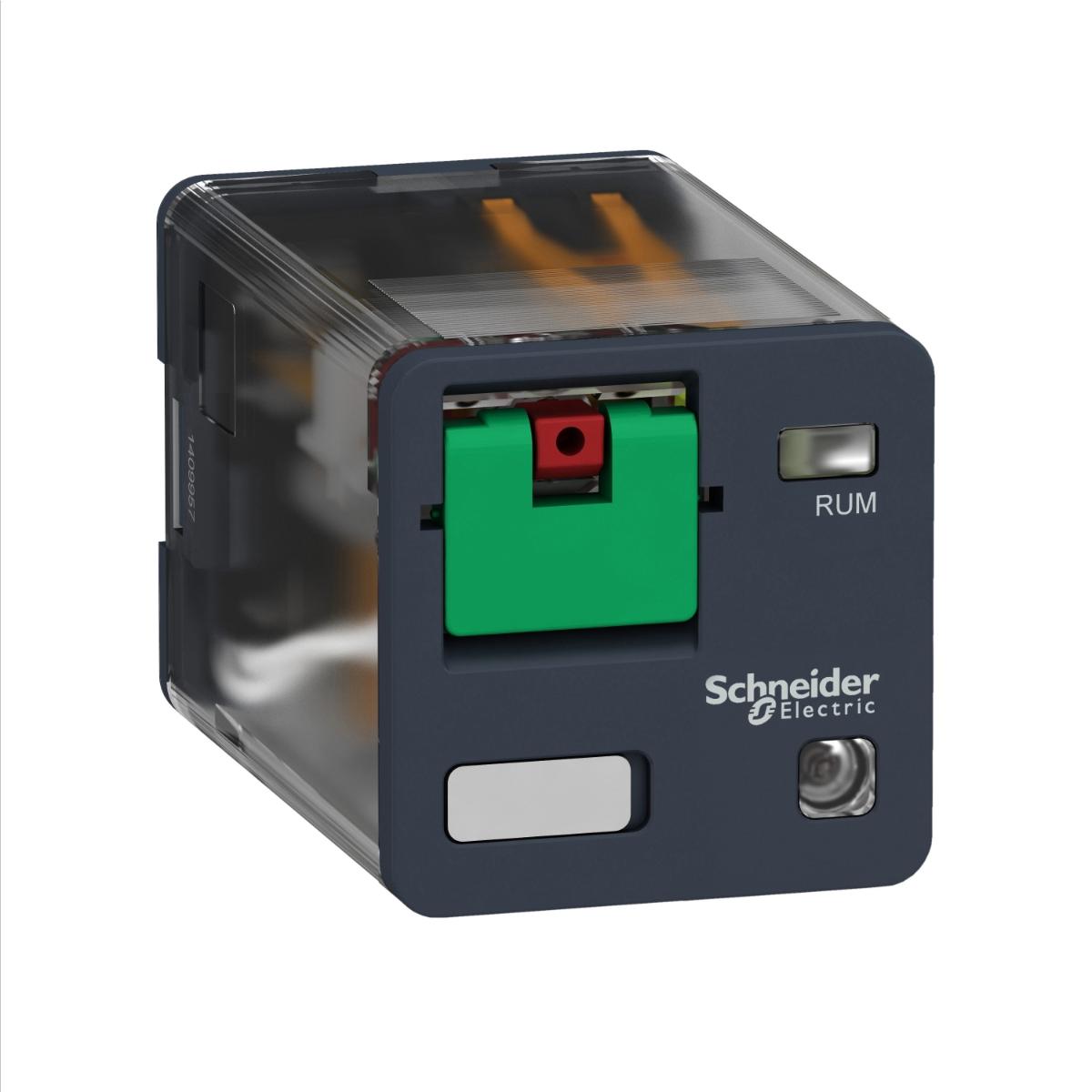

Schneider Electric RUMC32P7 Universal plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test button, 230V AC

Enter postcode to see stock

Code: SCHRUMC32P7

Brand: Generic Brand

Unit of measure: EACH

Description

Schneider Electric RUMC32P7 Universal plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test button, 230V AC

This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 230V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night.

Features:
• Provides economical solution for the implementation of many switching functions with large number of contacts
• It is a flexible design for space-saving
• Plug in type allows for easy installation and maintenance
• Latest interface relay with single-step loackable testing function for user securey confident

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Rated operational voltage limits	184...253 V AC
Safety reliability data	B10d = 100000
Operating position	any position
Maximum switching voltage	250 V conforming to IEC
Series name	Universal
Protection category	RT I
Ambient air temperature for operation	-40-55 °C
Utilisation coefficient	20 %
Supplier Code	RUMC32P7
Ambient air temperature for storage	-40-85 °C
Load current	10 A at 28 V DC
YoutubeVideo1	https://www.youtube.com/embed/2fJJKGUbG-s?si=_IafyjQ9A1o6dRkj
Vibration resistance	4 gn- amplitude = +/- 1mm (f = 10-150 Hz)5 cycles not operating
Average resistance	6800 Ohm at 20 °C +/- 15 %
360Image	https://visuals.se.com/RUMC32P7_360/20211210T0026/360
Dielectric strength	2500 V AC between coil and contact with reinforced
Shock resistance	10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27
Contacts type and composition	3 C/O
Control type	lockable test button
IP degree of protection	IP40
Range	Harmony Electromechanical Relays
Shape of pin	cylindrical
Electrical durability	100000 cycles for resistive load
Device presentation	complete product
Average coil consumption in VA	3-3 at 60 Hz
Maximum switching capacity	2500 VA/280 W
Pollution degree	2
Test levels	level A group mounting
[Ie] rated operational current	10 A at 250 V AC (NO) conforming to IEC
Drop-out voltage threshold	>= 0.15 Uc AC
[In] rated current	10 A
Mechanical durability	5000000 cycles
Status LED	with
[Ithe] conventional enclosed thermal current	10 A at -40-55 °C
Operating time	20 ms at nominal voltage
[Uc] control circuit voltage	230 V
Device short name	RUM
Compatibility code	RUM
Contacts material	AgNi
[Ui] rated insulation voltage	250 V conforming to IEC
Standards	CSA C22.2 No 14
Product certifications	EAC
Brand Name	Schneider Electric
[Uimp] rated impulse withstand voltage	4 kV (1.2/50 µs)
Operating rate	<= 1200 cycles/hour under load
Reset time	20 ms at nominal voltage
Minimum switching capacity	170 mW at 10 mA- 17 V
Net weight	0.086 kg
Product or component type	plug-in relay
