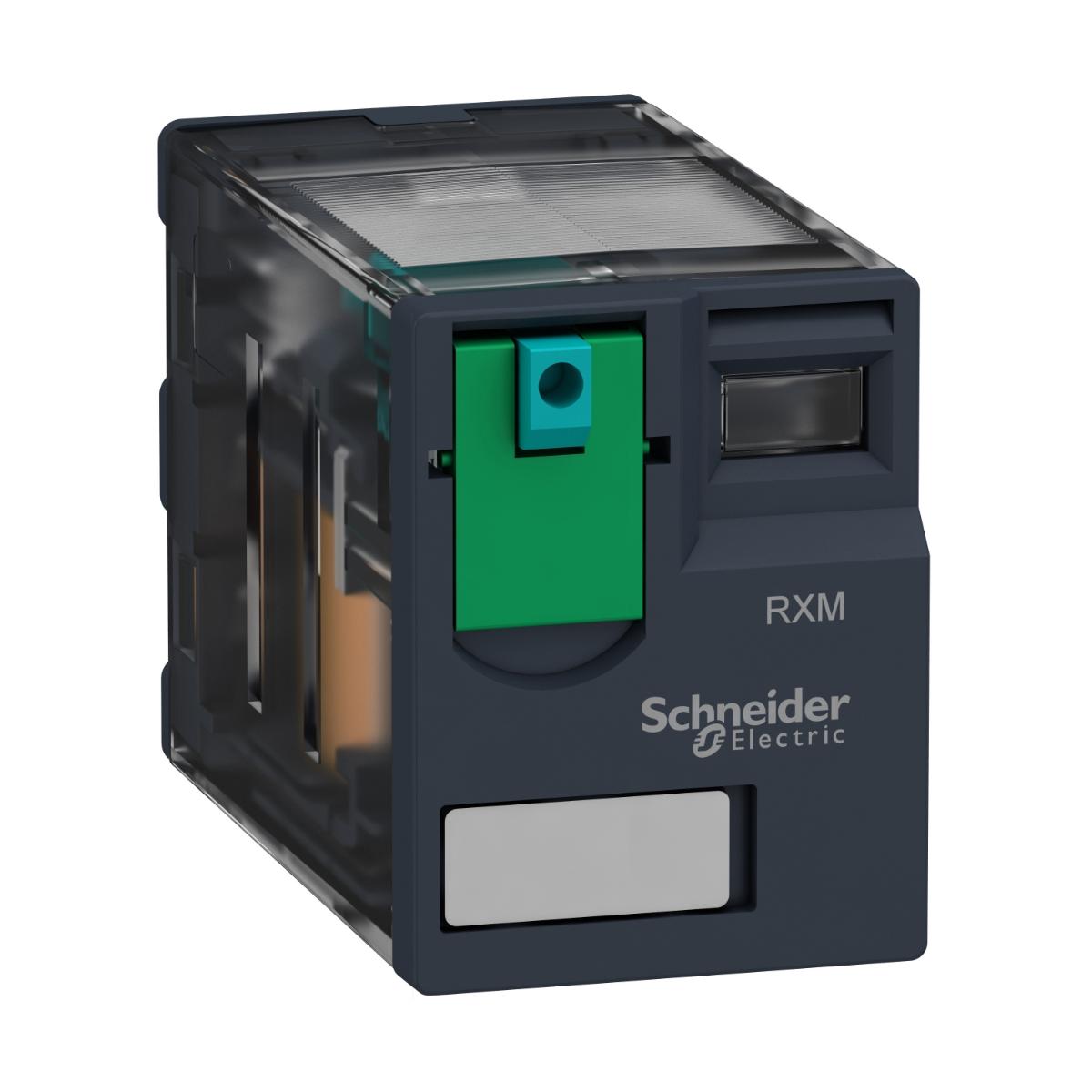

Schneider Electric RXM3AB1BD miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 24V DC
Code: SCHRXM3AB1BD
Unit of measure:
EACH
Description
MINIATURE RELAY 3C/O 24VDC
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Rated operational voltage limits | 19.2...26.4 V DC |
| Safety reliability data | B10d = 100000 |
| Operating position | any position |
| Maximum switching voltage | 250 V conforming to IEC |
| Series name | Miniature |
| Protection category | RT I |
| Ambient air temperature for operation | -40-55 °C |
| Utilisation coefficient | 20 % |
| Supplier Code | RXM3AB1BD |
| Ambient air temperature for storage | -40-85 °C |
| Load current | 10 A at 28 V DC |
| Vibration resistance | 5 gn- amplitude = +/- 1mm (f = 10-150 Hz)5 cycles not operating |
| Average resistance | 650 Ohm at 20 °C +/- 10 % |
| Dielectric strength | 2000 V AC between coil and contact |
| Shock resistance | 30 gn for not operating |
| Contacts type and composition | 3 C/O |
| Control type | lockable test button |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Range | Harmony Electromechanical Relays |
| Shape of pin | flat |
| Electrical durability | 100000 cycles for resistive load |
| Device presentation | complete product |
| Maximum switching capacity | 2500 VA/280 W |
| Pollution degree | 2 |
| Test levels | level A group mounting |
| [Ie] rated operational current | 5 A at 28 V (DC) NC conforming to IEC |
| CAD overall height | 82.8mm |
| Drop-out voltage threshold | >= 0.1 Uc |
| CAD overall depth | 80.35mm |
| [In] rated current | 10 A |
| Mechanical durability | 10000000 cycles |
| Continuous output current | 6.7 A |
| Status LED | without |
| Operating time | 20 ms |
| [Uc] control circuit voltage | 24 V |
| Device short name | RXM |
| Compatibility code | RXM |
| Contacts material | AgNi |
| [Ui] rated insulation voltage | 300 V conforming to CSA |
| Standards | UL 508 |
| Product certifications | Lloyd's |
| Brand Name | Schneider Electric |
| Average coil consumption | 0.9 W |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| Operating rate | <= 18000 cycles/hour no-load |
| Reset time | 20 ms |
| Minimum switching capacity | 170 mW at 10 mA- 17 V |
| Net weight | 0.037 kg |
| Product or component type | plug-in relay |
