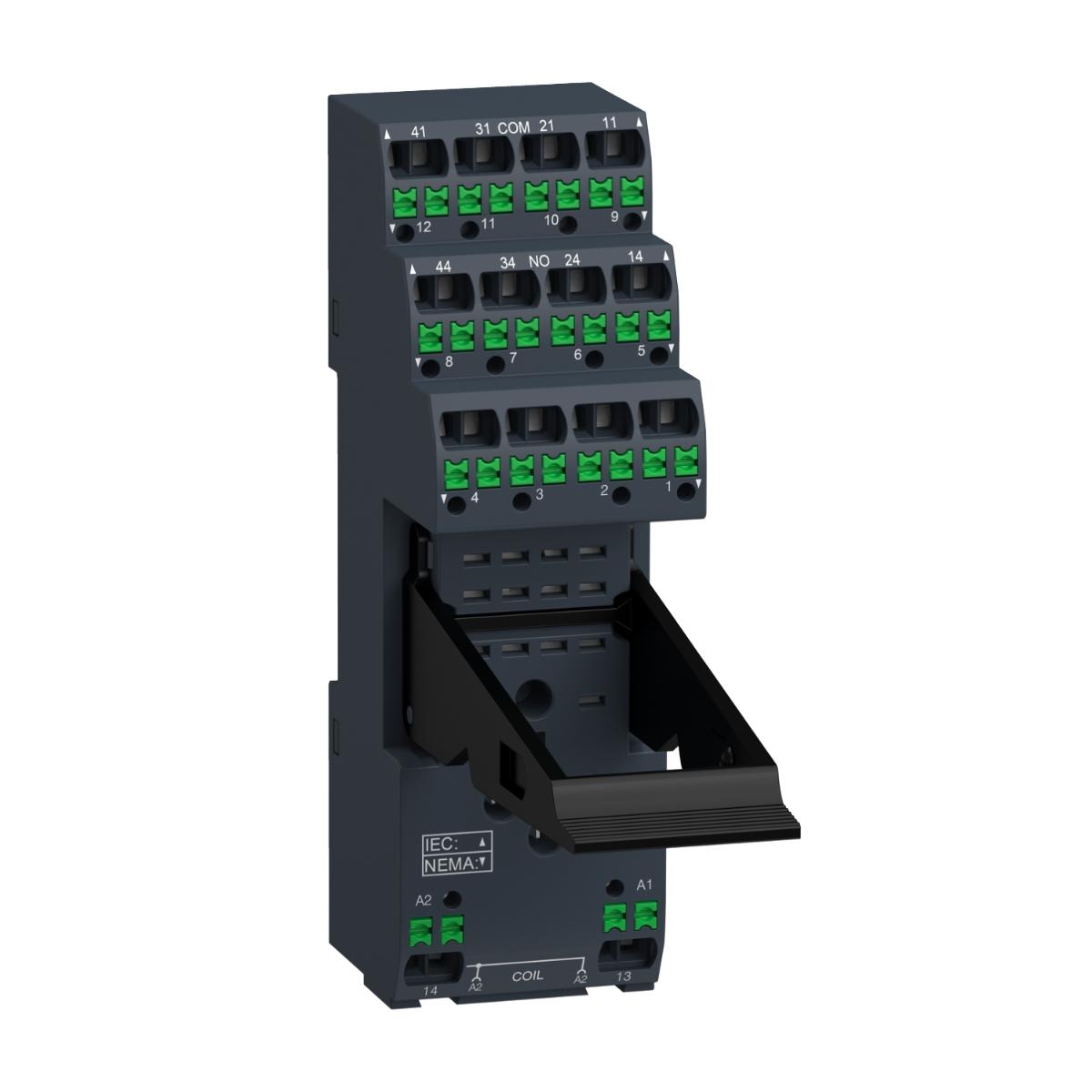

Schneider Electric RXZE14P push in socket with clamp, Harmony Electromechanical Relays, for RXM relays, 12A 2CO, 6A 4CO, push in terminals, separate contact
Code: SCHRXZE14P
Unit of measure:
EACH
Description
PUSH-IN SOCKET WITH CLAMP FOR RXM2 RXM4
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| [In] rated current | 12 A |
| Ambient air temperature for operation | -40-55 °C |
| Group of product | RXM_2-4_C/O_CON_SEP_FLAT |
| [Ith] conventional free air thermal current | 6 A 4 C/O relays |
| Supplier Code | RXZE14P |
| Output type | relay |
| Sale per indivisible quantity | 10 |
| Ambient air temperature for storage | -40-85 °C |
| Height | 85mm |
| Width | 31mm |
| Dielectric strength | 2500 V |
| Device short name | RXZ |
| Contacts type and composition | 4 C/O |
| Product compatibility | plug-in relay RXM with 4 C/O contact |
| Fixing mode | clip-on (35mm symmetrical DIN rail) |
| [Ue] rated operational voltage | 300 V conforming to UL |
| Contact terminal arrangement | separate |
| [Ui] rated insulation voltage | 250 V |
| Marking | CE |
| IP degree of protection | IP20 |
| Range | Harmony Timer Relays |
| Standards | IEC 61984 |
| Overvoltage category | III |
| Product certifications | EAC |
| Shape of pin | flat |
| Brand Name | Schneider Electric |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Length | 98mm |
| Pollution degree | 3 |
| Net weight | 0.080 kg |
| Connections - terminals | spring clamp terminals (push 'n stay)- 1 x 0.5...1 x 1.5mm² (AWG 20...AWG 16) flexible with cable end |
| Product or component type | socket |
