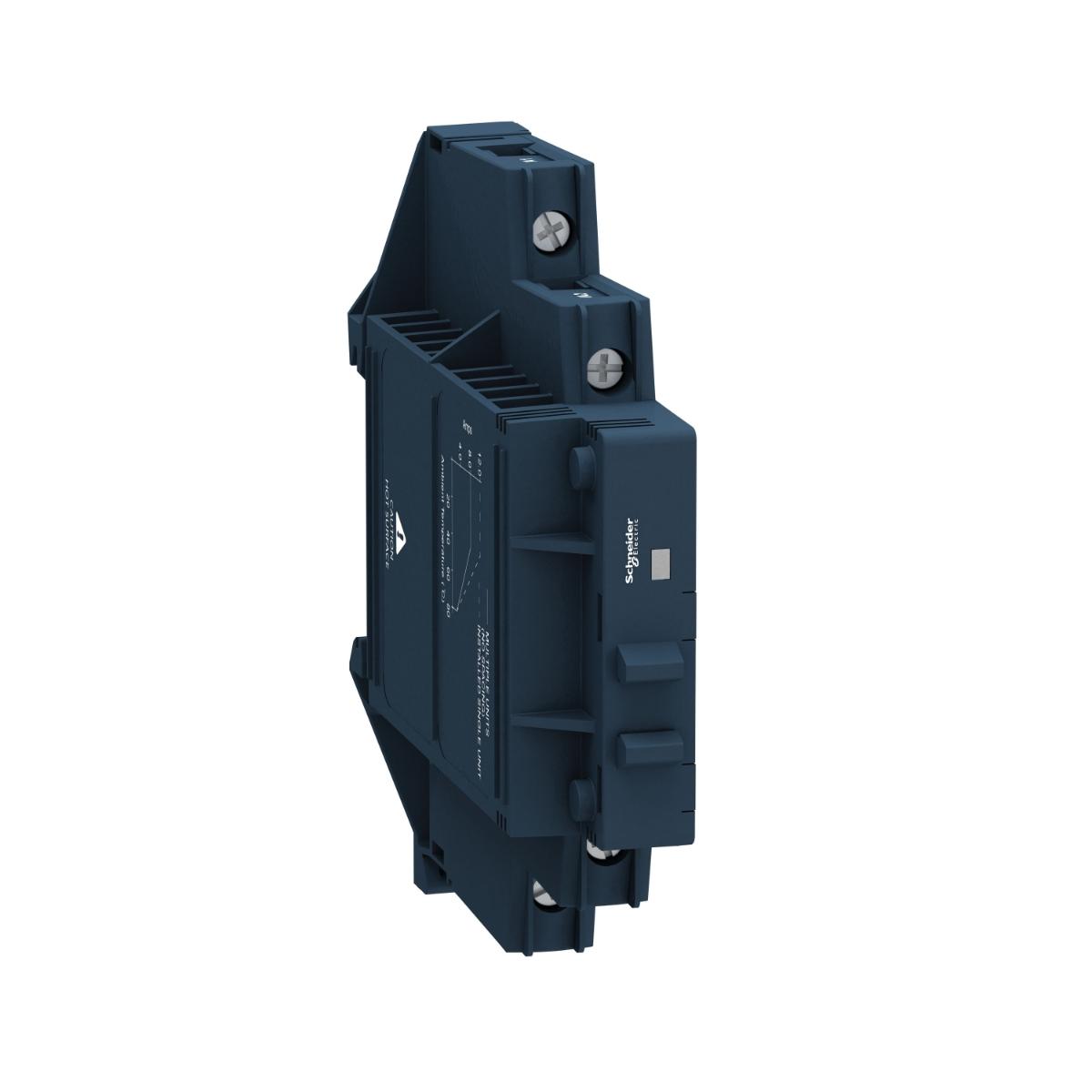

Schneider Electric SSM1D212BD Solid state modular relay, Harmony Solid State Relays, 12A, DIN rail mount, DC switching, input 4...32V DC, output 1…60V DC, 1NO

Code: SCHSSM1D212BD

Brand: Generic Brand

Unit of measure: EACH

Description

Schneider Electric SSM1D212BD Solid state modular relay, Harmony Solid State Relays, 12A, DIN rail mount, DC switching, input 4...32V DC, output 1…60V DC, 1NO

This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 60V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance.

Features:
• Silent and reliable due to the absence of moving contacts
• Resistant to shocks, vibration and pollution, which makes it ideal for harsh industrial environments
• Unlimited electrical endurance: reduce your maintenance and downtime costs
• Visual indicator LED for a simpler troubleshooting and commissioning

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Surge current	100 A for 10 ms
Maximum switching voltage	1 V DC turn-off
Solid state output type	Mosfet output
[In] rated current	12 A
Capacitance unbalance	10 pF for input/output
Depth	83.7mm
Ambient air temperature for operation	-30-80 °C
Mounting support	symmetrical DIN rail
Output voltage	1...60 V DC
Supplier Code	SSM1D212BD
Maximum voltage drop	<0.5 V on-state
Load current	0.0025-12 A
Ambient air temperature for storage	-30-100 °C
Height	90.3mm
Minimum switching voltage	4 V DC turn-on
Maximum leakage current	0.1 mA off-state
Width	18mm
Number of channels	1
Dielectric strength	4 kV DC for input or output to case
360Image	https://visuals.se.com/RS_532_GHSCT18022/20200509T0116/360
[Uc] control circuit voltage	4...32 V
Output switching mode	DC switching
Product configuration type	relay configuration
Device short name	SSM
Network number of phases	1 phase
Insulation resistance	1000 MOhm at 500 V DC
Control type	without test button
Marking	CE
IP degree of protection	IP20
Range	Harmony Solid State Relays
Flame retardance	V0 conforming to UL 94
Standards	IEC 62314
Overvoltage category	III
Product certifications	UL
Resistance	0.045 Ohm on-state
Brand Name	Schneider Electric
Device presentation	complete product
Response time	0.3 ms (turn-off)
Local signalling	LED (green) for input status
Tightening torque	0.5...0.8 N.m for output
Pollution degree	2
Net weight	0.09 kg
Absolute maximum voltage	60 V
Input current limits	9-11 mA
Connections - terminals	screw terminals: 1 x 0.3...1 x 2.5mm²- (AWG 22...AWG 14) for output
Product or component type	modular DIN rail relay
