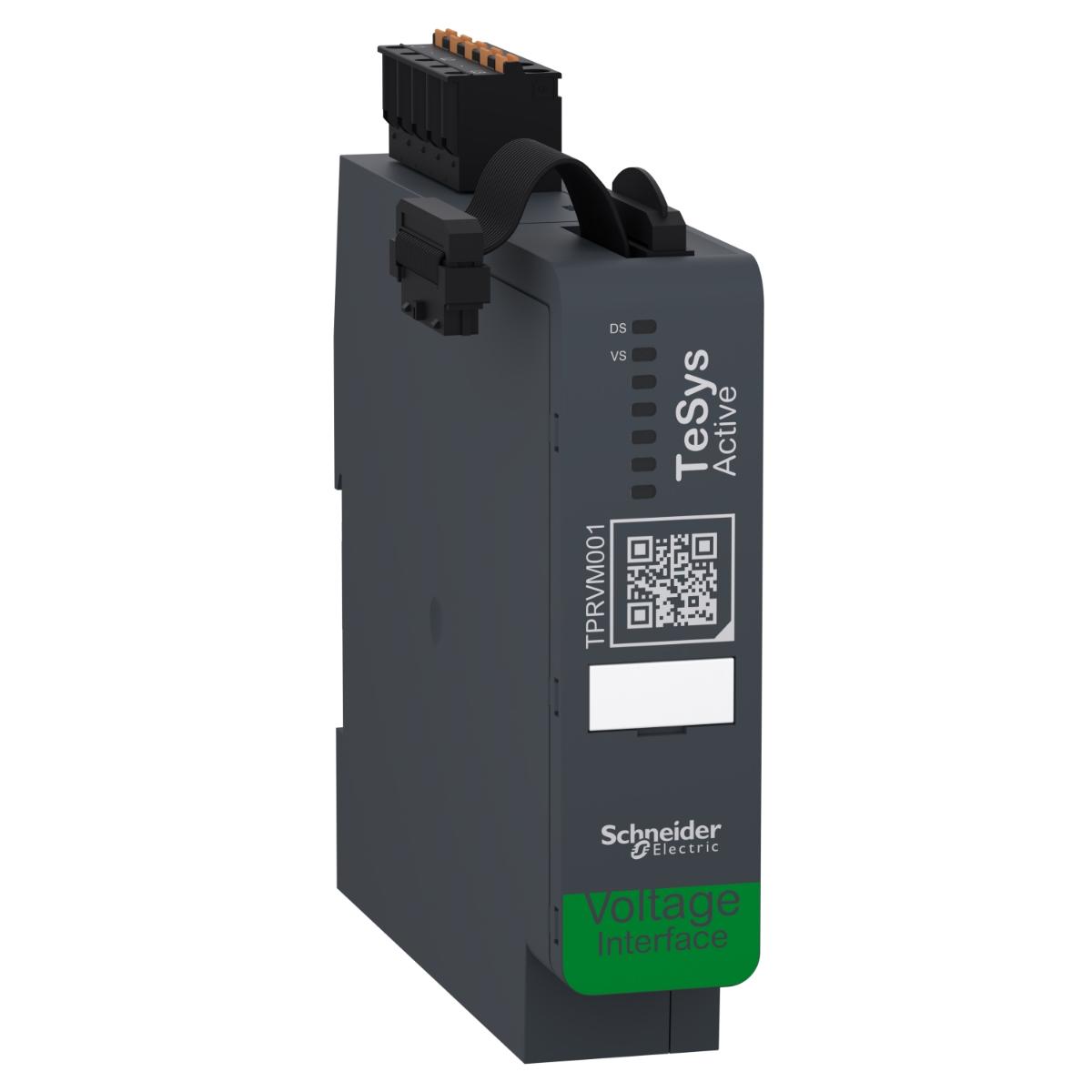

Schneider Electric TPRVM001 Voltage interface module, TeSys island, 690VAC 47-63 Hz, Isolated switching input for safe stop
Code: SCHTPRVM001
Unit of measure:
EACH
Description
TESYS ISLAND VOLTAGE INTERFACE
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 5-95 % |
| [Us] rated supply voltage | 24 V DC supplied by the bus coupler |
| Electromagnetic compatibility | line voltage circuit: surge immunity test (common mode)- level 3- 2 kV- conforming to EN/IEC 61000-4-5 |
| Depth | 114mm |
| Ambient air temperature for operation | -10-60 °C |
| Fire resistance | 960 °C conforming to UL 94 |
| Mounting mode | horizontal and vertical (35mm symmetrical rail) |
| Current consumption | 2 mA |
| Function of module | identification of dip and swell events level and duration |
| Supplier Code | TPRVM001 |
| Ambient air temperature for storage | -25-70 °C |
| Height | 118mm |
| Power dissipation in W | 0.5 W maximum |
| Width | 25mm |
| Vibration resistance | 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6 |
| Operating altitude | 0...2000 m without derating |
| Device short name | TPRVM |
| Shock resistance | 15 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Product compatibility | TPRBC bus coupler |
| [Ue] rated operational voltage | 690 V AC 47...63 Hz |
| [Ui] rated insulation voltage | 690 V conforming to IEC 61010-1 |
| IP degree of protection | IP20 |
| Range | TeSys |
| Overvoltage category | III |
| Standards | UL 61010-2-201 |
| Product certifications | EAC (pending) |
| Brand Name | Schneider Electric |
| Device presentation | reporting of the voltage to the bus coupler to enable power & energy monitoring |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 61010-1 |
| Product name | TeSys island |
| Protective treatment | TC |
| Local signalling | 1 LED (green/red) for VS (voltage status) |
| Pollution degree | 2 |
| Metering type | phase frequency 47...63 Hz |
| Net weight | 0.159 kg |
| Measurement accuracy | frequency: +/- 1 Hz- |
| Product or component type | voltage interface module |
| Connections - terminals | measuring input: removable spring terminal block 3 cable(s) 0.25-2.5mm² (AWG 22...AWG 14) flexible with cable end |
