Schneider Electric VCF1 3 Pole Disconnect Switch, 690VAC, 32A

Code: SCHVCF1

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider Electric VCF1 3 Pole Disconnect Switch, 690VAC, 32A

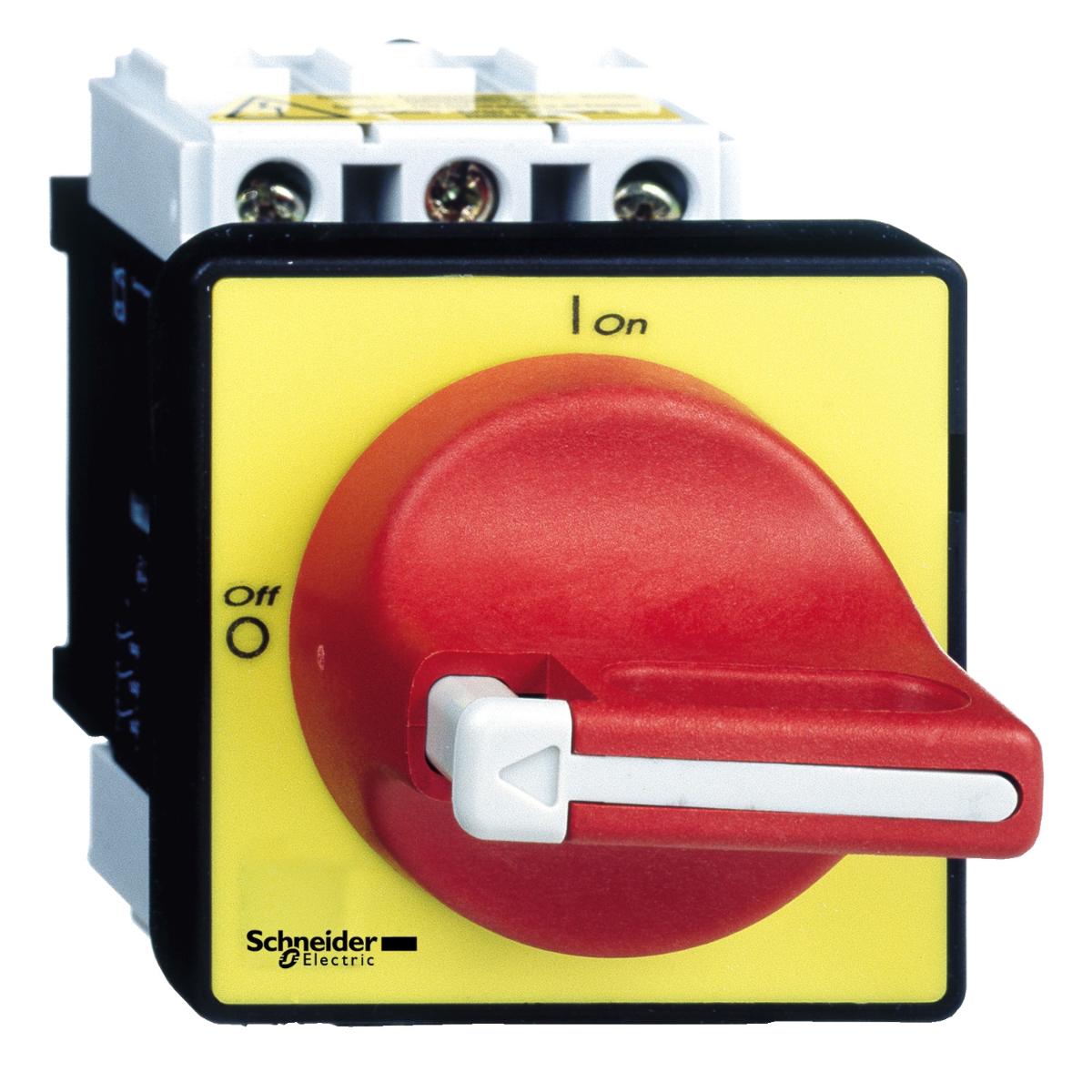

TeSys Vario switch disconnector for door mounting, 3 poles, 32A/690V, for motor switching applications up to 11kW@400V AC-23. Complete unit composed of a switch body V1, a red handle with yellow 60x60mm front plate KCF1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

[Icm] rated short-circuit making capacity	1 kA at 400 V at Ipeak
Standard	IEC 60947-3
Suitability for isolation	yes
Ambient air temperature for operation	-20-50 °C
Fire resistance	960 °C conforming to IEC 60695-2-1
[Ith] conventional free air thermal current	32 A
control type	rotary handle
Supplier Code	VCF1
Voltage	690V
Mechanical durability	100000 cycles
Performance level	high performance
UNSPCS	39122233
Height	74mm
Poles description	3P
Width	60mm
[Icw] rated short-time withstand current	384 A at 400 V duration: 1 s
[Ithe] conventional enclosed thermal current	25 A
Device short name	VCF
Compatibility code	main switch disconnector
Contacts type and composition	3 NO
Fixing mode	by 4 screws for handle
[Ue] rated operational voltage	690 V AC 50/60 Hz
Marking	0 - 1
Range	TeSys
Standards	IEC 60947-3
Brand Name	Schneider Electric
Item Name	Disconnect Switch
[Uimp] rated impulse withstand voltage	8 kV
Rotary handle padlocking	1 to 3 padlocks 4-8 mm
Base dimension	60 x 60 mm
IP Rating	IP65
Product name	TeSys VARIO
Protective treatment	TC
Tightening torque	power circuit: 2.1-2.1 N.m - on screw clamp terminals
Net weight	0.25 kg
Handle front plate colour	yellow
Current	32A
[Ie] rated operational current	21.8 A AC-23 Ue: 400 V
Handle colour	red
Intermittent duty class	30
Rotary handle mounting style	direct
Product or component type	emergency stop switch disconnector
