Description

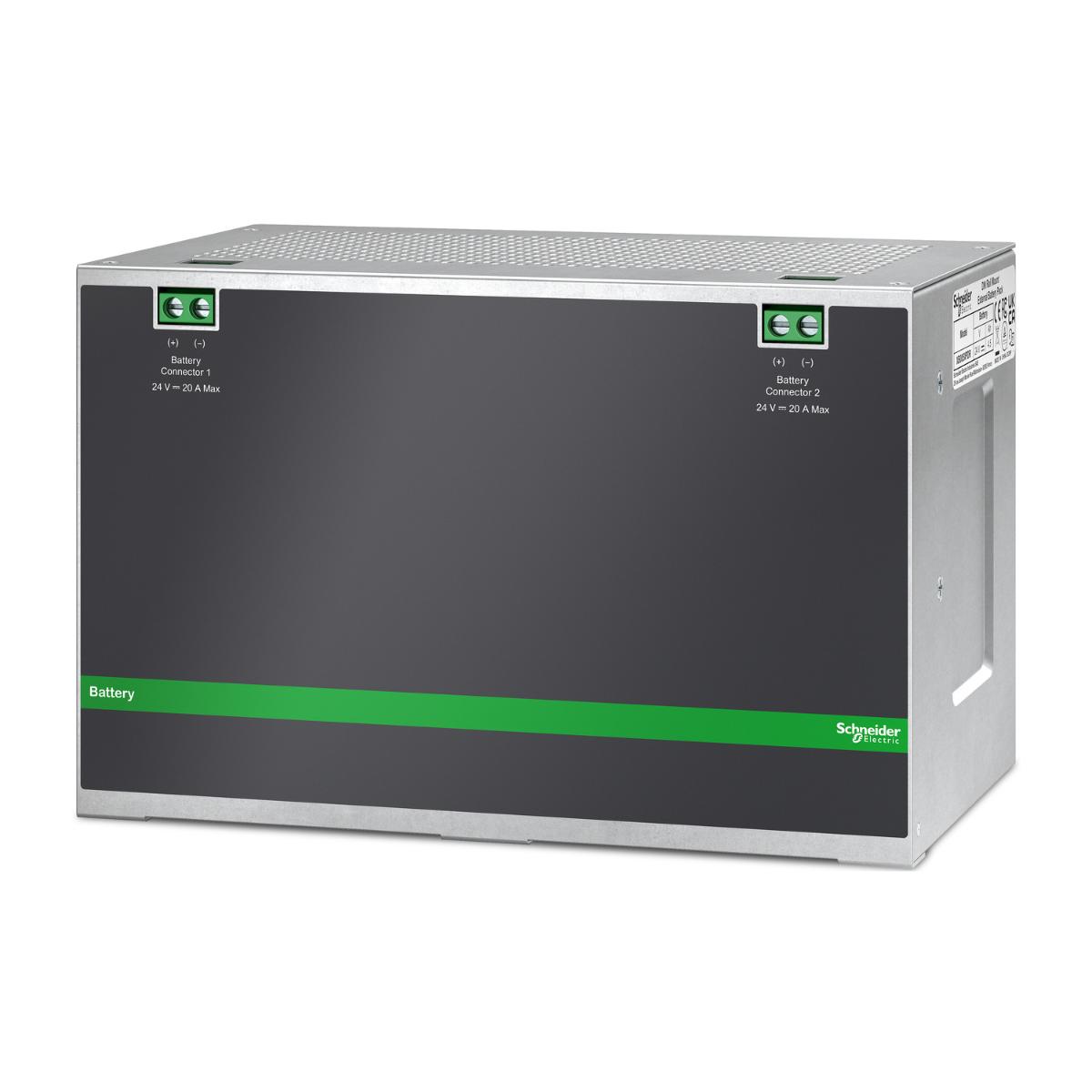

Schneider Electric XB005XPDR Easy UPS battery module, 24V DC-DC, DIN Rail, Industrial, 4.5Ah, metal Grey
The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. The XB005XPDR is an external battery pack designed for the BVS240XDPDR and BVS480XDPDR Industrial UPS models. It allows for daisy chaining of up to a total of 4 battery packs. It offers 10 mins of runtime at 10A of load and 5 mins of runtime at 20A load. It comes with a 2-year standard warranty.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 0-95 % |
| Battery type | VRLA |
| Show note OP temperature | No |
| Battery capacity | 4.5 Ah |
| Depth | 119mm |
| Ambient air temperature for operation | -15-50 °C |
| Colour | Metal Grey |
| Output voltage | 24 V DC |
| Battery location | battery cabinet |
| Supplier Code | XB005XPDR |
| USB compatible | No |
| Redundant | No |
| Ambient air temperature for storage | -15-70 °C |
| Height | 129mm |
| Width | 192mm |
| Operating altitude | 0...3000 m |
| Mounting preference | no preference |
| Standards | IEC 62368-1 |
| Product certifications | TÜV |
| Brand Name | Schneider Electric |
| Device mounting | DIN rail |
| Main Input Voltage | 24 V DC |
| Storage Relative Humidity | 0-95 % |
| Provided equipment | user manual |
| Net weight | 4.5 kg |
| Battery voltage | 24 V |
| Storage altitude | 0-3000 m |
| Product or component type | uninterruptible power supply (UPS) |
