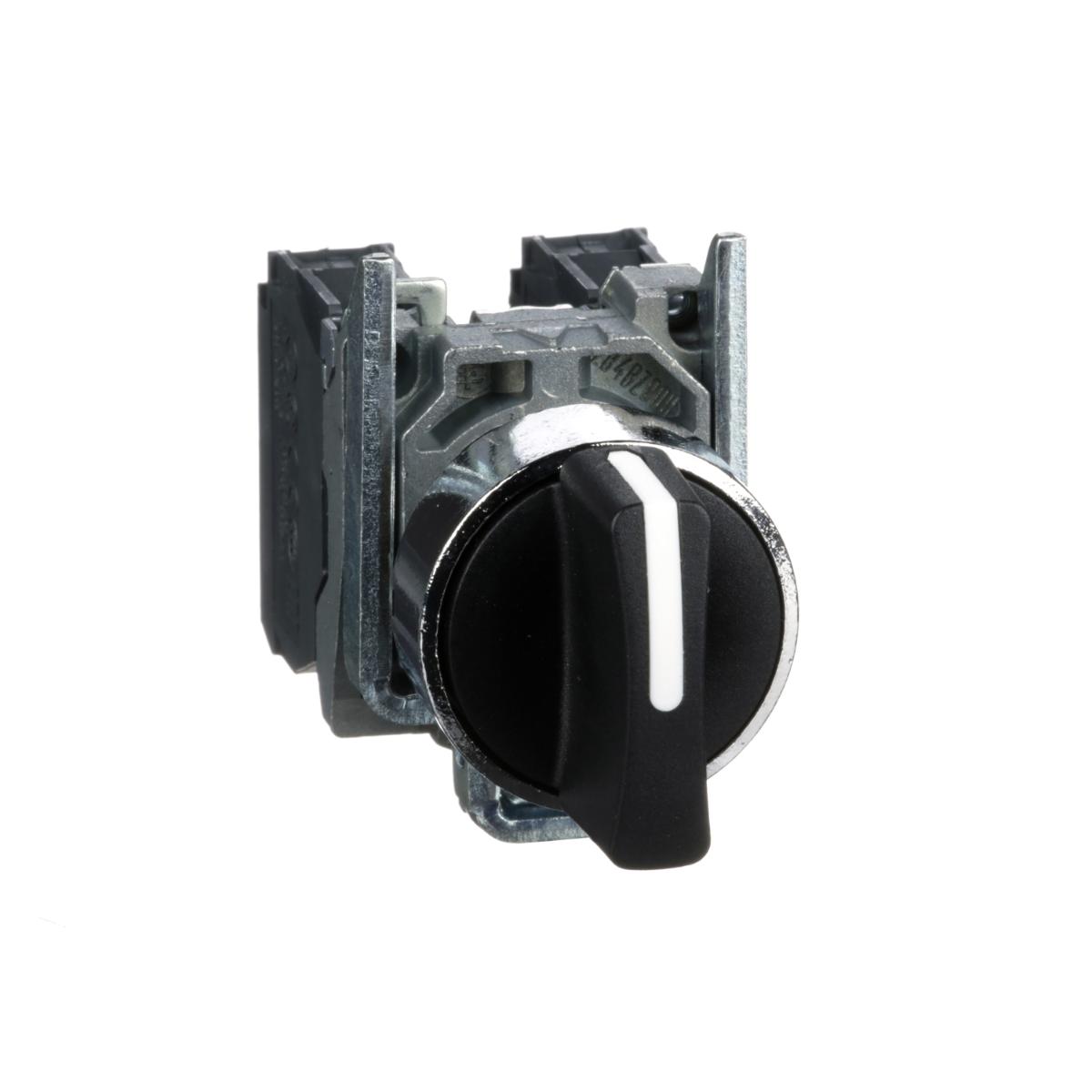

Schneider Electric XB4BD33 Selector switch, Harmony XB4, metal, Black, 22mm, 3 positions, stay put, 2NO

Code: SCHXB4BD33

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider XB4BD25 Selector switch, Harmony XB4, metal, black, 22mm, 2 positions, stay put, 1NO+1NC

This Harmony XB4 modular black selector switch has 3 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

[Us] rated supply voltage	600 V
Shape of screw head	slotted compatible with flat Ø 4mm screwdriver
Ambient air temperature for operation	-40-70 °C
[Ith] conventional free air thermal current	10 A conforming to IEC 60947-5-1
Supplier Code	XB4BD33
Torque value	0.14 N.m NO changing electrical state
Ambient air temperature for storage	-40-70 °C
Operator position information	3 positions +/- 45°
Mounting diameter	22.5mm
Operator profile	black standard handle
YoutubeVideo1	https://www.youtube.com/embed/9zC9OPsk2fw?si=7JDO5Do9pIOvt0pR
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
360Image	https://visuals.se.com/XB4BD33_360/20210222T1418/360
Type of operator	stay put
Shock resistance	50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Contacts type and composition	2 NO
Head type	standard
IP degree of protection	IP69K
Range	Harmony XB4
Weight	0.105 kg
Shape of signaling unit head	round
Overvoltage category	class I conforming to IEC 60536
Short-circuit protection	10 A cartridge fuse type gG conforming to IEC 60947-5-1
Electrical durability	1000000 cycles- DC-13- 0.2 A at 110 V- operating rate <3600 cyc/h- load factor: 0.5 conforming to EN 60947-5-1 appendix C
Device presentation	complete product
Protective treatment	TH
Bezel material	chromium plated metal
Tightening torque	0.8-1.2 N.m conforming to IEC 60947-1
Fixing collar material	zamak
[Ie] rated operational current	0.55 A at 125 V- DC-13- Q600 conforming to IEC 60947-5-1
Connections - terminals	screw clamp terminals- >= 1 x 0.22mm² without cable end conforming to IEC 60947-1
Positive opening	without
Cap/operator or lens colour	black
Depth	68mm
Mechanical durability	1000000 cycles
Sale per indivisible quantity	1
Height	47mm
Width	30mm
Device short name	XB4
NEMA degree of protection	NEMA 4X
Customizable	0
Compatibility code	XB4
Contacts usage	standard contacts
Contacts material	silver alloy (Ag/Ni)
[Ui] rated insulation voltage	600 V (pollution degree 3) conforming to IEC 60947-1
Terminals description ISO n°1	(13-14)NO
Standards	JIS C8201-5-1
Product certifications	CSA
Brand Name	Schneider Electric
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
IP Rating	IP69
Resistance to high pressure washer	7000000 Pa at 55 °C- distance : 0.1 m
Net weight	0.105 kg
Contact operation	slow-break
Electrical reliability	λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4
Product or component type	selector switch
