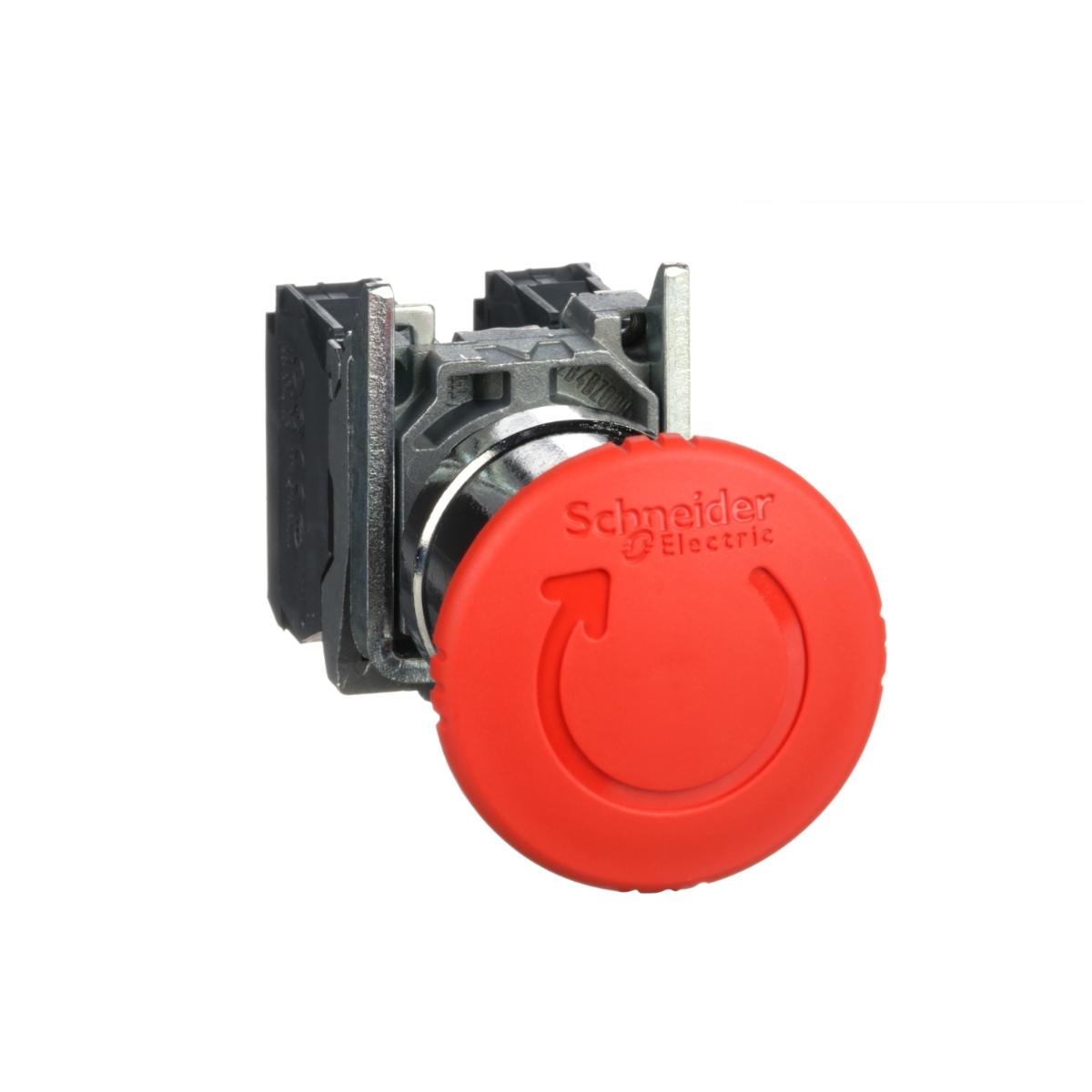

Schneider Electric XB4BS8445 Emergency stop switching off, Harmony XB4, metal, Red mushroom, 40mm, 22mm, trigger latching turn to release, 1NO+1NC

Code: SCHXB4BS8445

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider XB4BS8444 Emergency stop push button, Harmony XB4, metal, red mushroom, 40mm, 22mm, trigger latching turn to release, 2NC

This Harmony XB4 emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched-turn-to-release mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Shape of screw head	slotted compatible with flat Ø 5.5mm screwdriver
Ambient air temperature for operation	-40-70 °C
[Ith] conventional free air thermal current	10 A conforming to IEC 60947-5-1
Supplier Code	XB4BS8445
Ambient air temperature for storage	-40-70 °C
Mounting diameter	22.5mm
Operator profile	red mushroom Ø 40mm- unmarked
Reset	turn to release
YoutubeVideo1	https://www.youtube.com/embed/9zC9OPsk2fw?si=7JDO5Do9pIOvt0pR
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
360Image	https://visuals.se.com/XB4BS8445_360/20210222T2355/360
Type of operator	trigger action and mechanical latching
Shock resistance	50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Contacts type and composition	1 NO + 1 NC
Head type	standard
IP degree of protection	IP69
Range	Harmony XB4
Weight	0.13 kg
Shape of signaling unit head	round
Short-circuit protection	10 A cartridge fuse type gG conforming to IEC 60947-5-1
Electrical shock protection class	class I conforming to IEC 60536
Electrical durability	1000000 cycles- AC-15- 4 A at 24 V- operating rate <3600 cyc/h- load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation	complete product
Protective treatment	TH
Bezel material	chromium plated metal
Tightening torque	0.8-1.2 N.m conforming to IEC 60947-1
Fixing collar material	zamak
[Ie] rated operational current	0.55 A at 125 V- DC-13- Q600 conforming to IEC 60947-5-1
Connections - terminals	screw clamp terminals- >= 1 x 0.22mm² without cable end conforming to IEC 60947-1
Positive opening	with conforming to IEC 60947-5-1 appendix K
Cap/operator or lens colour	red
Depth	82mm
Mechanical durability	300000 cycles
Sale per indivisible quantity	1
Height	47mm
Width	40mm
NEMA degree of protection	NEMA 4X
Customizable	0
Operating travel	2.6mm (NO changing electrical state)
Device short name	XB4
Compatibility code	XB4
Contacts usage	standard contacts
Contacts material	silver alloy (Ag/Ni)
[Ui] rated insulation voltage	600 V (pollution degree 3) conforming to IEC 60947-1
Terminals description ISO n°1	(13-14)NO
Standards	IEC 60947-5-4
Product certifications	BV
Brand Name	Schneider Electric
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
IP Rating	IP66
Resistance to high pressure washer	7000000 Pa at 55 °C- distance : 0.1 m
Operating force	44 N
Net weight	0.13 kg
Contact operation	slow-break
IK degree of protection	IK06 conforming to IEC 50102
Electrical reliability	λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4
Product or component type	emergency stop push-button
