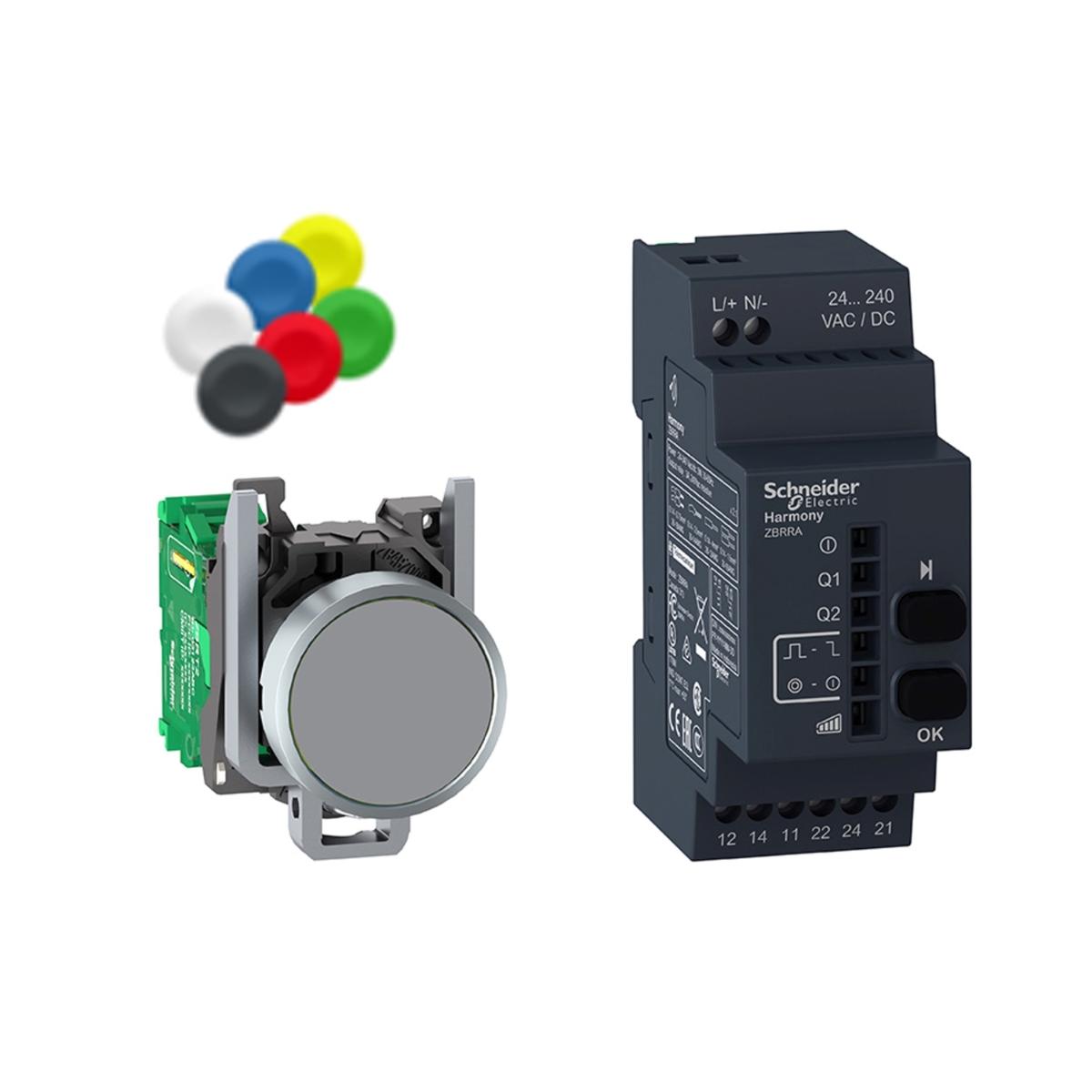

Schneider Electric XB4RFA02 Wireless push button and configurable receiver with 10 coloRed caps, Harmony XB5R, metal, Ø22, 24...240 V AC/DC
Code: SCHXB4RFA02
Unit of measure:
EACH
Description
PACK SPS ZB4 22MM ADVANCE RECEIVER AC/DC
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| [Us] rated supply voltage | 24...240 V |
| Antenna type | omnidirectional |
| Max power consumption in W | 1 mW |
| Kit composition | 1 receiver |
| Antenna gain | 0 dBi |
| Type of receiver | programmable receiver (2 relays) |
| Supplier Code | XB4RFA02 |
| Bandwidth | 5-5 MHz |
| Radio agreement | ANATEL |
| Number of channels | 1 |
| Status LED | 1 LED green and yellow for reception signal |
| Customizable | 0 |
| Device short name | XB4R |
| Compatibility code | XB4R |
| Control type | wireless and batteryless push-button Ø 22mm assembled on fixing collar |
| Communication port protocol | Zigbee conforming to IEEE 802.15.4 |
| Marking | CE |
| Range | Harmony XB4R |
| Standards | CSA C22.2 No 14 |
| Head material | metal |
| Level or class | 5M00G7W |
| Product certifications | CCC |
| Brand Name | Schneider Electric |
| Transmission frequency | 2405 MHz for receiver |
| Modulation Technique | O-QPSK |
| Product or component type | wireless and batteryless package |
