Schneider Electric XB5AS8442 Emergency stop switching off, Harmony XB5, plastic, Red mushroom 40mm, 22mm, trigger latching turn to release, 1NC

Code: SCHXB5AS8442

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider LC1D32D7 TeSys D, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 42VAC 50/60Hz coil

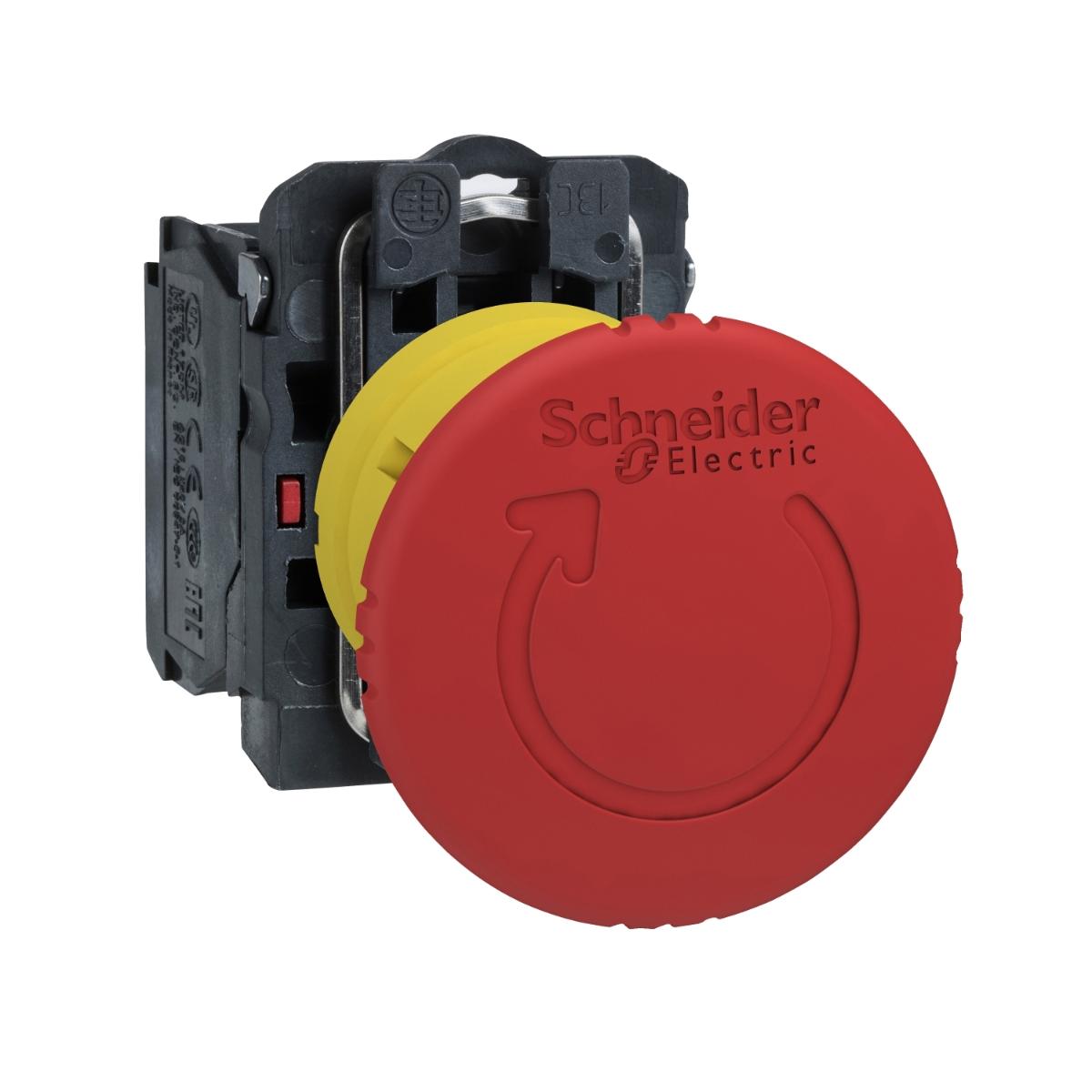

This Harmony XB5 emergency stop mushroom head modular push button operates with a latched-turn-to-release mechanism. It has a plastic bezel and is supplied with a red mushroom diameter 40 mm, unmarked. It features 1 x NC slow break contact and screw-clamp terminals connection type. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is easily installed into a standard 22mm diameter panel cut-out. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. It weighs 60g. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Shape of screw head	slotted compatible with flat Ø 5.5mm screwdriver
Ambient air temperature for operation	-40-70 °C
[Ith] conventional free air thermal current	10 A conforming to IEC 60947-5-1
Supplier Code	XB5AS8442
Ambient air temperature for storage	-40-70 °C
Mounting diameter	22mm
Operator profile	red mushroom Ø 40mm- unmarked
Reset	turn to release
YoutubeVideo1	https://www.youtube.com/embed/boihG16v3fE?si=DFzNr8BBQpVSuykL
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
360Image	https://visuals.se.com/XB5AS8442_360/20210222T2355/360
Type of operator	trigger action and mechanical latching
Shock resistance	50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Contacts type and composition	1 NC
Head type	standard
IP degree of protection	IP67
Range	Harmony XB5
Overvoltage category	class II conforming to IEC 60536
Shape of signaling unit head	round
Short-circuit protection	10 A cartridge fuse type gG conforming to IEC 60947-5-1
Electrical durability	1000000 cycles- AC-15- 3 A at 120 V- operating rate <3600 cyc/h- load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation	complete product
Protective treatment	TH
Bezel material	dark grey plastic
Tightening torque	0.8-1.2 N.m conforming to IEC 60947-1
Fixing collar material	plastic
[Ie] rated operational current	1.2 A at 600 V- AC-15- A600 conforming to IEC 60947-5-1
Connections - terminals	screw clamp terminals- >= 1 x 0.22mm² without cable end conforming to IEC 60947-1
Positive opening	with conforming to IEC 60947-5-1 appendix K
Cap/operator or lens colour	red
Depth	82mm
Mechanical durability	300000 cycles
Sale per indivisible quantity	1
Height	43mm
Width	40mm
Operating travel	4.3mm (total travel)
Device short name	XB5
NEMA degree of protection	NEMA 4X
Customizable	0
Compatibility code	XB5
Contacts usage	standard contacts
Contacts material	silver alloy (Ag/Ni)
[Ui] rated insulation voltage	600 V (pollution degree 3) conforming to IEC 60947-1
Terminals description ISO n°1	(11-12)NC
Standards	IEC 60947-1
Product certifications	UL listed
Brand Name	Schneider Electric
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
IP Rating	IP66
Resistance to high pressure washer	7000000 Pa at 55 °C- distance : 0.1 m
Contact operation	slow-break
IK degree of protection	IK03 conforming to IEC 50102
Electrical reliability	λ < 10exp(-8) at 17 V- 5 mA in clean environment conforming to IEC 60947-5-4
Product or component type	emergency stop push-button
