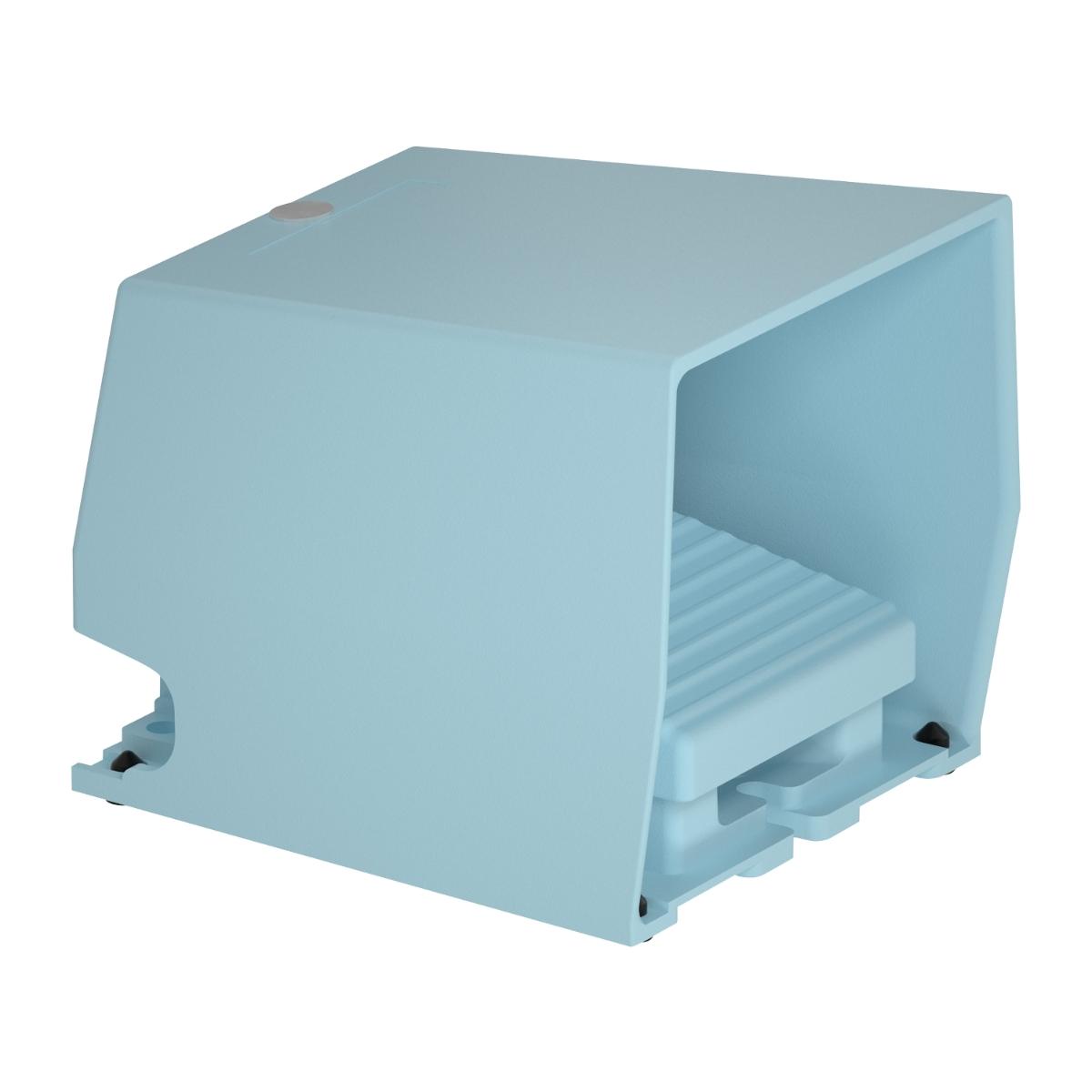

Schneider Electric XPEM510 Single foot switch, Harmony XPE, metal, Blue, with cover, trigger mechanism, 1 step, 1 contact 1NC+NO, IP66
Code: SCHXPEM510
Unit of measure:
EACH
Description
FOOT SWITCH 1STEP IP66 XPEM GUARDED
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Positive opening | with conforming to IEC 60947-5-1 appendix K |
| Ambient air temperature for operation | -25-70 °C |
| Colour | Blue |
| Trigger mechanism | with trigger mechanism |
| Supplier Code | XPEM510 |
| Mechanical durability | 15000000 cycles |
| Ambient air temperature for storage | -40-70 °C |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Foot switch type | single foot switch |
| Device short name | XPEM |
| Compatibility code | XPEM |
| Contacts type and composition | 1 NC + 1 NO |
| Shock resistance | 20 gn conforming to IEC 60068-2-27 |
| Material | metal |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to VDE 0110 group C |
| IP degree of protection | IP669 conforming to IEC 60529 |
| Range | Harmony XPE |
| Standards | NF E 09-031 |
| Overvoltage category | class I conforming to NF C 20-030 |
| Maximum resistance across terminals | 25 MOhm conforming to NF C 93-050 method A |
| Product certifications | FIMKO |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to VDE 0660-200 |
| Brand Name | Schneider Electric |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Protective treatment | TC |
| Provided equipment | cover |
| Net weight | 2.57 kg |
| Contact operation | 1 step |
| Cable entry | 2 entries tapped for Pg 16 cable gland |
| Rated operational power in W | 4 W DC-13- operating rate <60 cyc/mn- 5000000 cycles- 120 V- load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| [Ie] rated operational current | 0.27 A- 250 V- DC-13- Q300 conforming to IEC 60947-5-1 appendix A |
| Product or component type | foot switch |
| Connections - terminals | screw clamp terminal- <= 2 x 1.5mm² with or without cable end |
