Description

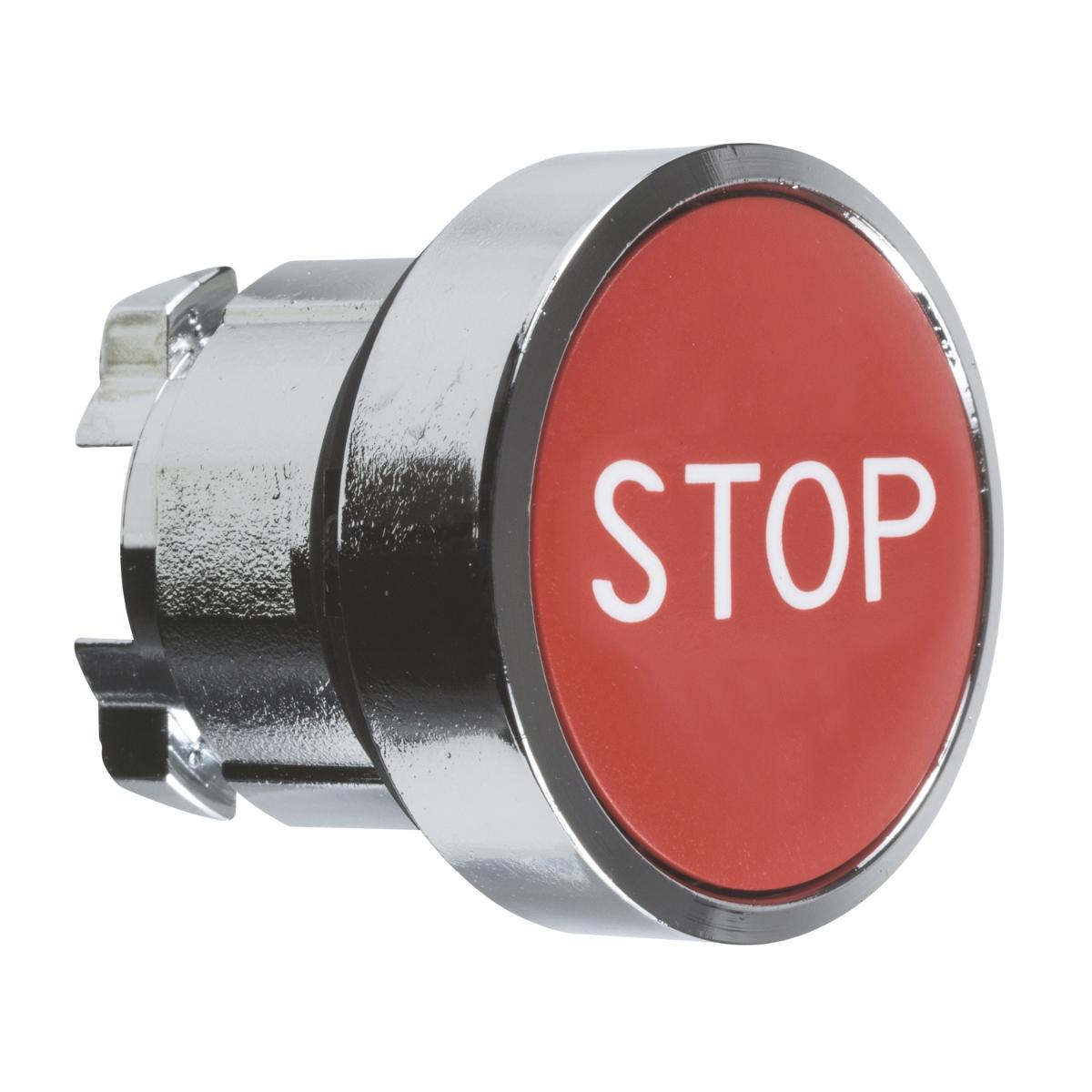

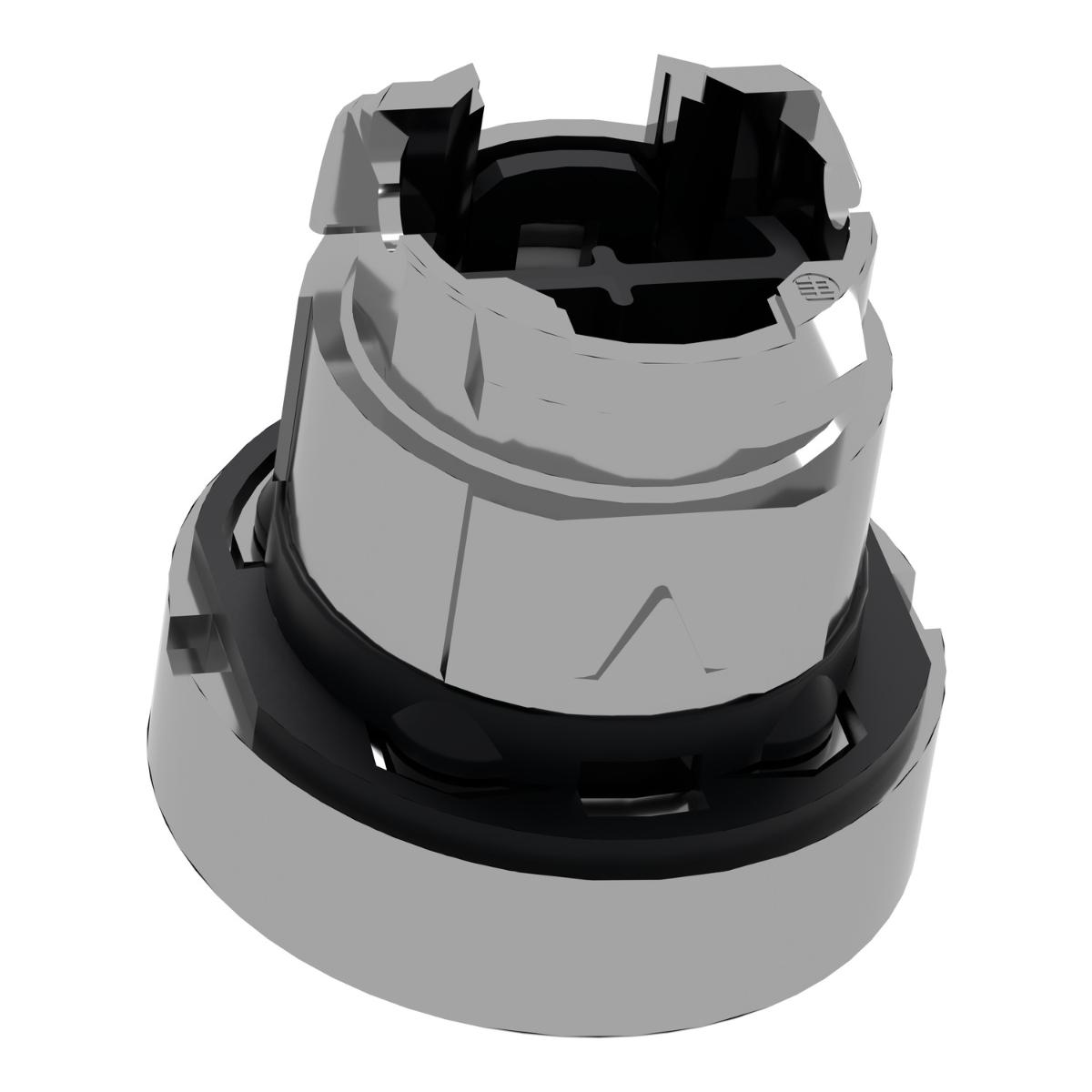

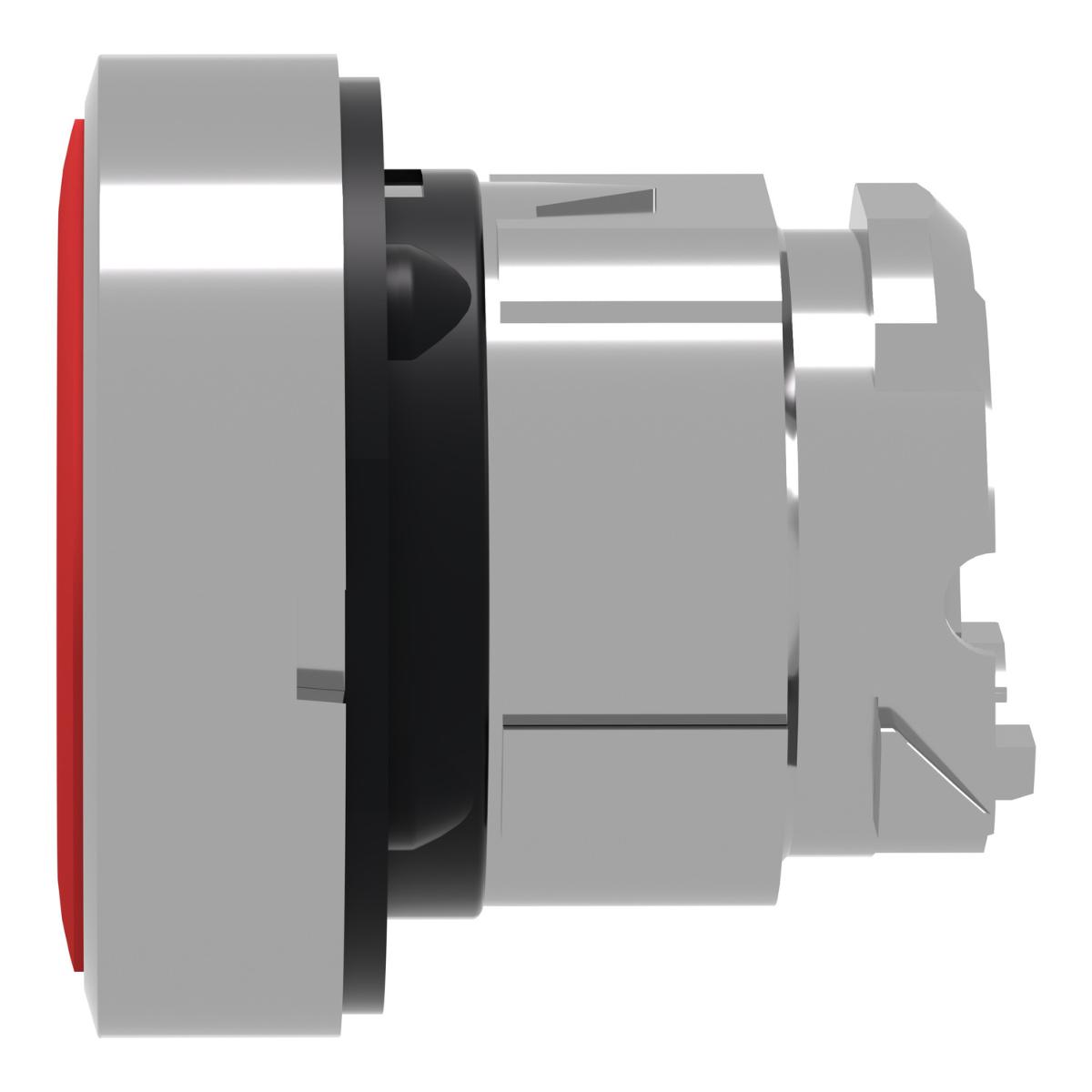

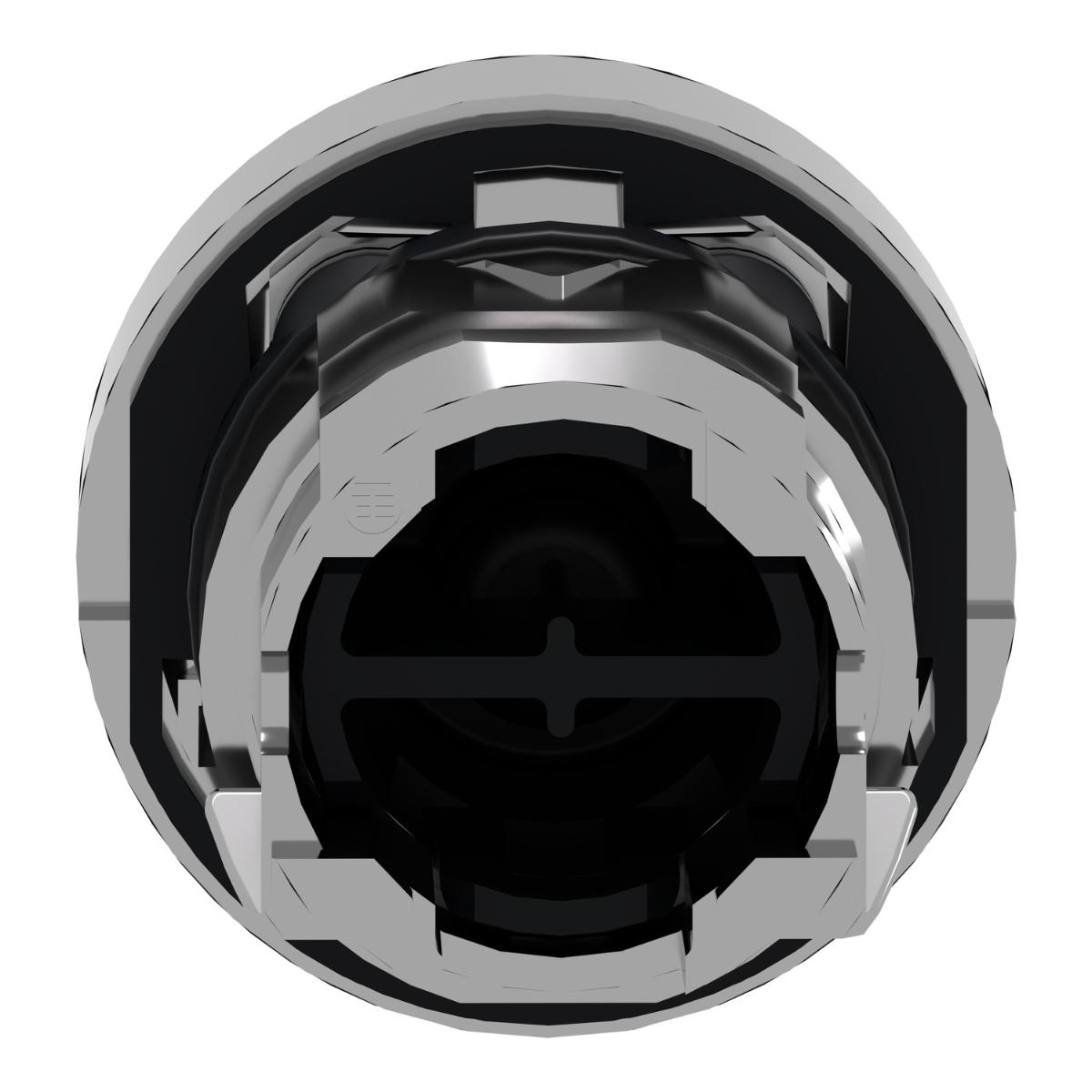

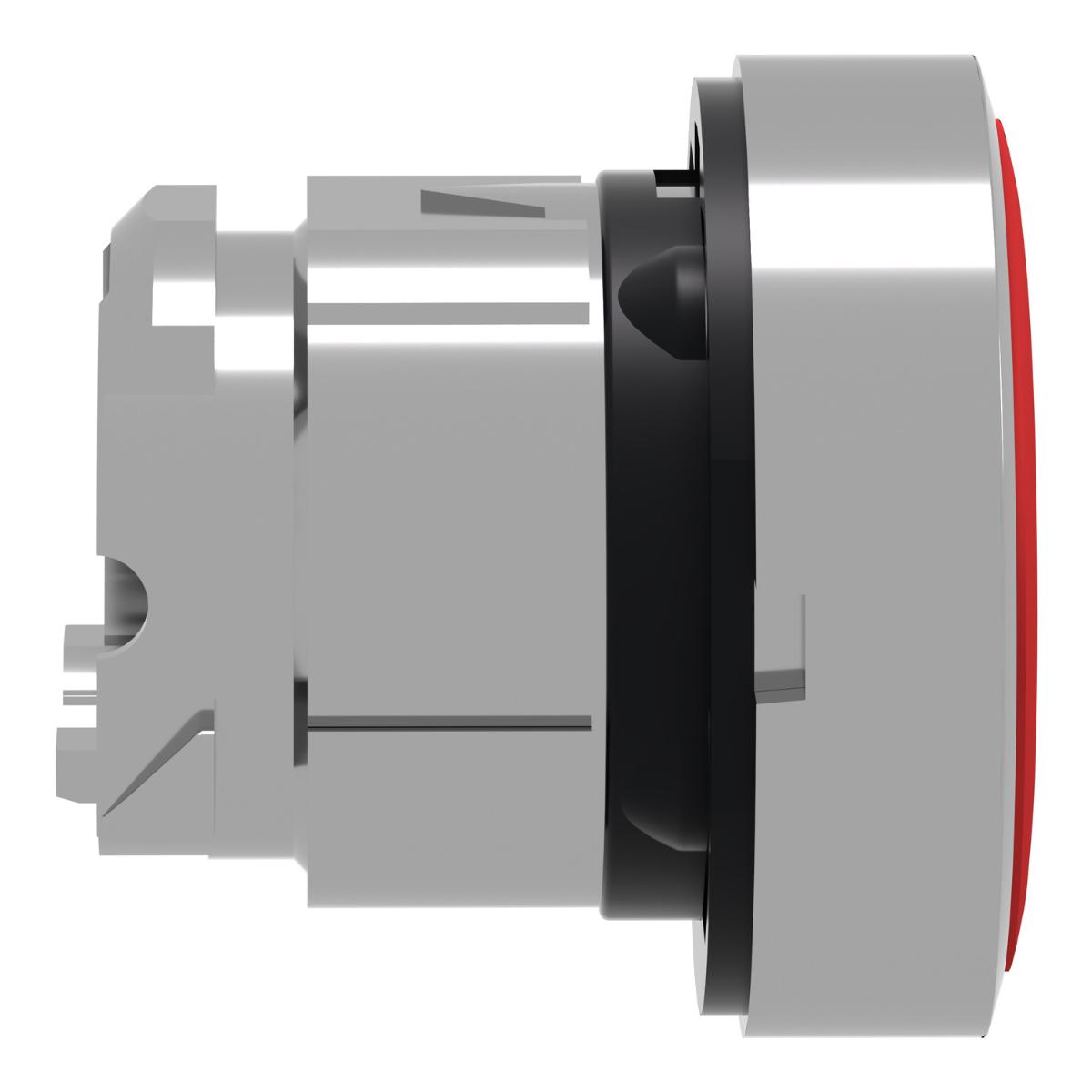

This Harmony XB4, flush red button head operates with a spring return / impulse mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
•
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Number of Contacts Blocks | 9 |
| Ambient air temperature for operation | -40-70 °C |
| NEMA Rating | NEMA 1/2/3/4/4X/13 |
| Supplier ref | ZB4BA434 |
| Supplier Code | ZB4BA434 |
| Ambient air temperature for storage | -40-70 °C |
| GrosWeight | 28.000 g |
| Mounting diameter | 22.5mm |
| Head Type | standard |
| Operator profile | red flush- STOP (white) |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Type of operator | spring return |
| Warranty | 18 months |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Colour of marking | white |
| Range | Harmony XB4 |
| Shape of signaling unit head | round |
| Overvoltage category | class I conforming to IEC 60536 |
| CAD overall width | 29mm |
| Main group | push-button |
| Item Name | Push Button Head |
| Device presentation | basic element |
| Bezel Material | chromium plated metal |
| Volume | 80.784 cm3 |
| Protective treatment | TH |
| CAD overall height | 29mm |
| Standard | RoHS, CE, CSA LR44087 Class 3211 03, UL E164353 CCN NKCR |
| CAD overall depth | 28mm |
| Cap/operator or lens colour | red |
| Colour | Red |
| Group of product | flush push with marking |
| Button Marking | Stop |
| Mechanical durability | 10000000 cycles |
| UNSPCS | 39122221 |
| Sale per indivisible quantity | 1 |
| Degree of Protection | IP66 |
| Height | 5.400 cm |
| Width | 3.400 cm |
| Diameter | 22 mm |
| Device short name | ZB4 |
| NEMA degree of protection | NEMA 4X |
| Customizable | 0 |
| Compatibility code | ZB4 |
| Operator Type | Non-Illuminated |
| Marking | STOP |
| Button Type | Flush |
| Standards | IEC 60947-5-1 |
| Product certifications | UL listed |
| Brand Name | Schneider Electric |
| Electrical composition code | C11 for <3 contacts using single blocks in front mounting |
| IP Rating | IP66 |
| Length | 4.400 cm |
| Operator Action | Momentary |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Product or component type | head for non-illuminated push-button |
