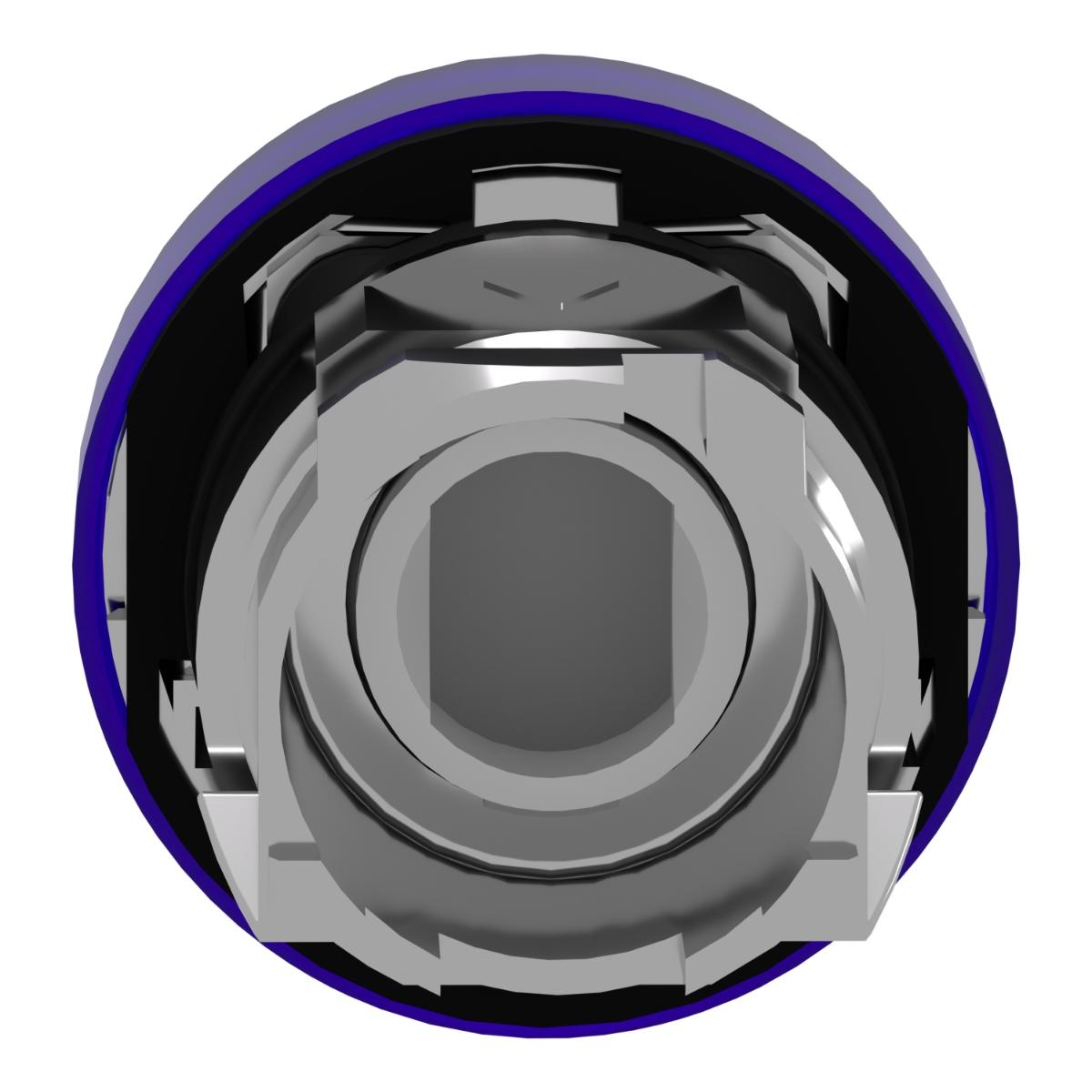

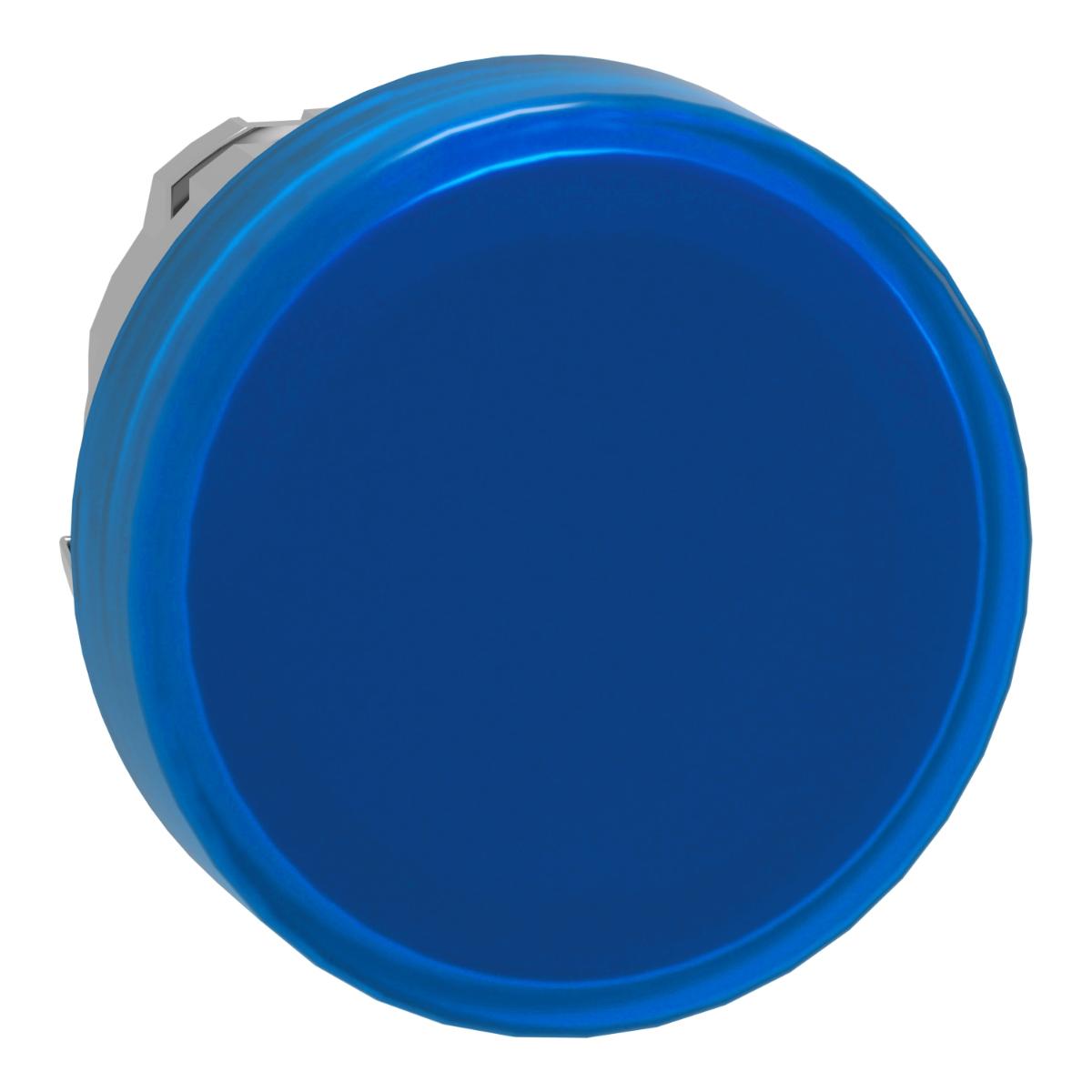

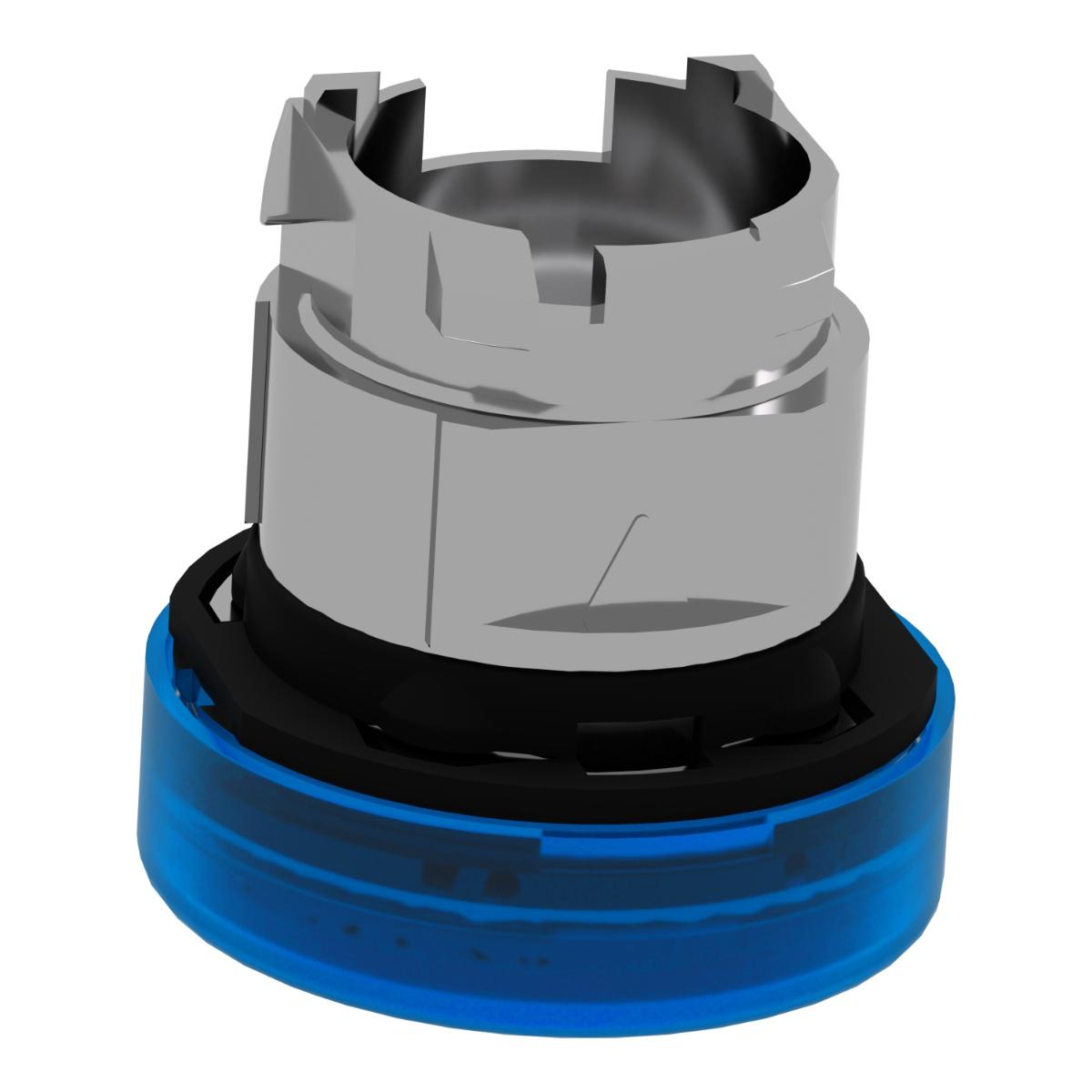

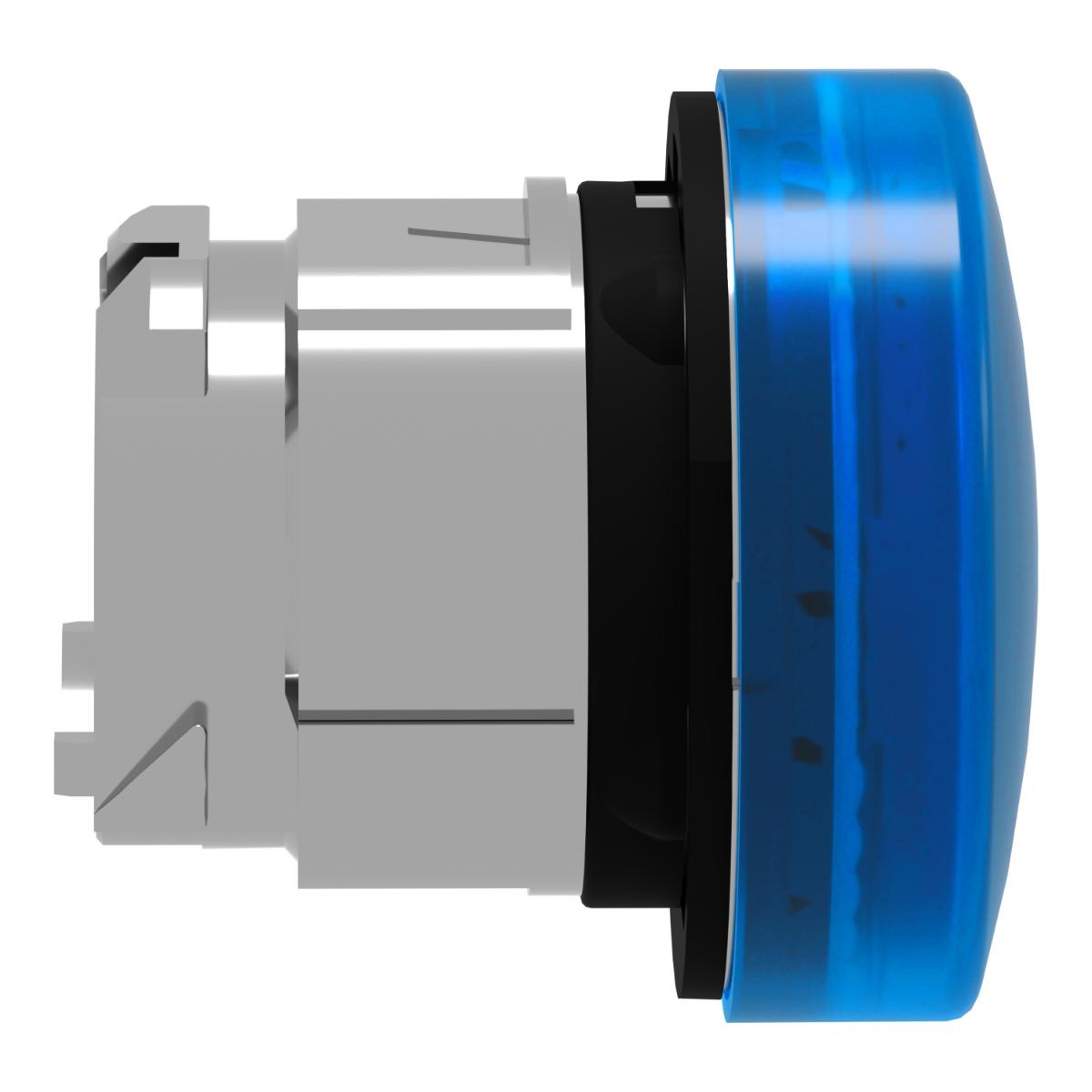

Schneider Electric ZB4BV063 Head for Pilot Light, Harmony XB4, metal, Blue, 22mm, universal LED, plain lens

Code: SCHZB4BV063

Brand: Schneider

Unit of measure: EACH

Description

Schneider ZB4BV063 Head for Pilot light, Harmony XB4, metal, blue, 22mm, universal LED, plain lens

This Harmony XB4, plain lens head for pilot light with integral LED is blue. This head for integral LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Features:
• Free of Substances of Very High Concern above the threshold
•
•
•
•
•
•
•
•

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

GCR BRIDGE	ZB4BVCUST01
Mount	Panel
Ambient air temperature for operation	-40-70 °C
Supplier ref	ZB4BV063
Supplier Code	ZB4BV063
Ambient air temperature for storage	-40-70 °C
GrosWeight	28.000 g
Mounting diameter	22mm
YoutubeVideo1	https://www.youtube.com/embed/9pxL9u54fN0?si=GoKwCoZfxeextNVw
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
360Image	https://visuals.se.com/ZB4BV063_360/20220622T1620/360
Warranty	18 months
Shock resistance	50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Head type	standard
IP degree of protection	IP69K
Range	Harmony XB4
Weight	0.026 kg
Shape of signaling unit head	round
Overvoltage category	class I conforming to IEC 60536
CAD overall width	29mm
Main group	pilot light
Item Name	Push Button Lens
Device presentation	basic element
Volume	80.784 cm3
Protective treatment	TH
Bezel material	chromium plated metal
CAD overall height	29mm
Operator additional information	with plain lens
Standard	EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C 4520, UL 508, CSA C22.2 No 14
CAD overall depth	30mm
Cap/operator or lens colour	blue
Colour	Blue
Group of product	lens fitted integral LED
Sale per indivisible quantity	1
Degree of Protection	IP66
Height	5.400 cm
Width	3.400 cm
Diameter	22 mm
NEMA degree of protection	NEMA 4X
Customizable	1
Device short name	ZB4
Compatibility code	ZB4
Product compatibility	universal LED
Dimensions	29 mm Height x 29 mm Width x 30 mm Depth
Material	Chrome Plated Metal
Standards	UL 508
Brand Name	Schneider Electric
EAN/UPC	3389110895018
Type	Pilot Light Head
Electrical composition code	P2 in front mounting with integral LED and transformer
IP Rating	IP66
Length	4.400 cm
Resistance to high pressure washer	7000000 Pa at 55 °C- distance : 0.1 m
Net weight	0.026 kg
IK degree of protection	IK06 conforming to IEC 50102
Product or component type	head for pilot light
