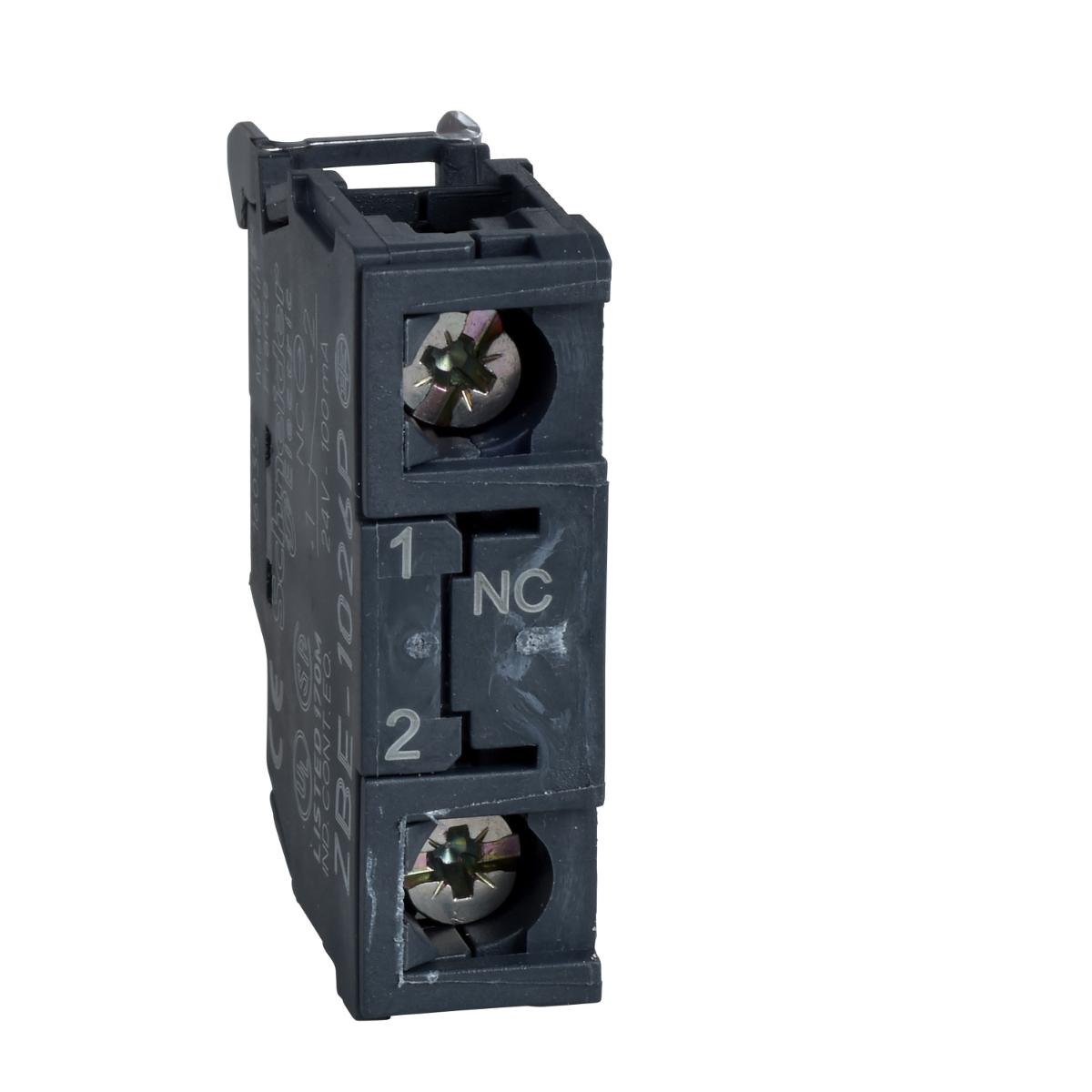

Schneider Electric ZBE1026 Single contact block, Harmony XB4, silver alloy, gold flashed, screw clamp terminal, 1NC
Code: SCHZBE1026
Unit of measure:
EACH
Description
NC SPEC SCREW CONTACT
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Positive opening | with conforming to IEC 60947-5-1 appendix K |
| Shape of screw head | slotted compatible with flat Ø 5.5mm screwdriver |
| Ambient air temperature for operation | -40-70 °C |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| Supplier Code | ZBE1026 |
| Mechanical durability | 10000000 cycles |
| Sale per indivisible quantity | 5 |
| Ambient air temperature for storage | -40-70 °C |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Operating travel | 4.3mm (total travel) |
| Device short name | ZBE |
| Compatibility code | ZBE |
| Contacts usage | low power switching contacts |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Contacts type and composition | 1 NC |
| Contacts material | gold flashed (Ag/Ni/Au) contacts |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting of block | front mounting |
| Range | Harmony XB5 |
| Standards | CSA C22.2 No 14 |
| Product certifications | DNV |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| Brand Name | Schneider Electric |
| Electrical durability | 1000000 cycles- DC-13- 0.2 A at 110 V- operating rate <3600 cyc/h- load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Electrical composition code | M9 (quantity <= 2 ) |
| Protective treatment | TH |
| Operating force | 2 N NC changing electrical state |
| Tightening torque | 0.8-1.2 N.m conforming to IEC 60947-1 |
| Net weight | 0.012 kg |
| Contact operation | slow-break |
| Contact block type | single |
| [Ie] rated operational current | 0.27 A at 250 V- DC-13- Q600 conforming to IEC 60947-5-1 |
| Product or component type | contact block |
| Connections - terminals | screw clamp terminals- >= 1 x 0.22mm² without cable end conforming to IEC 60947-1 |
