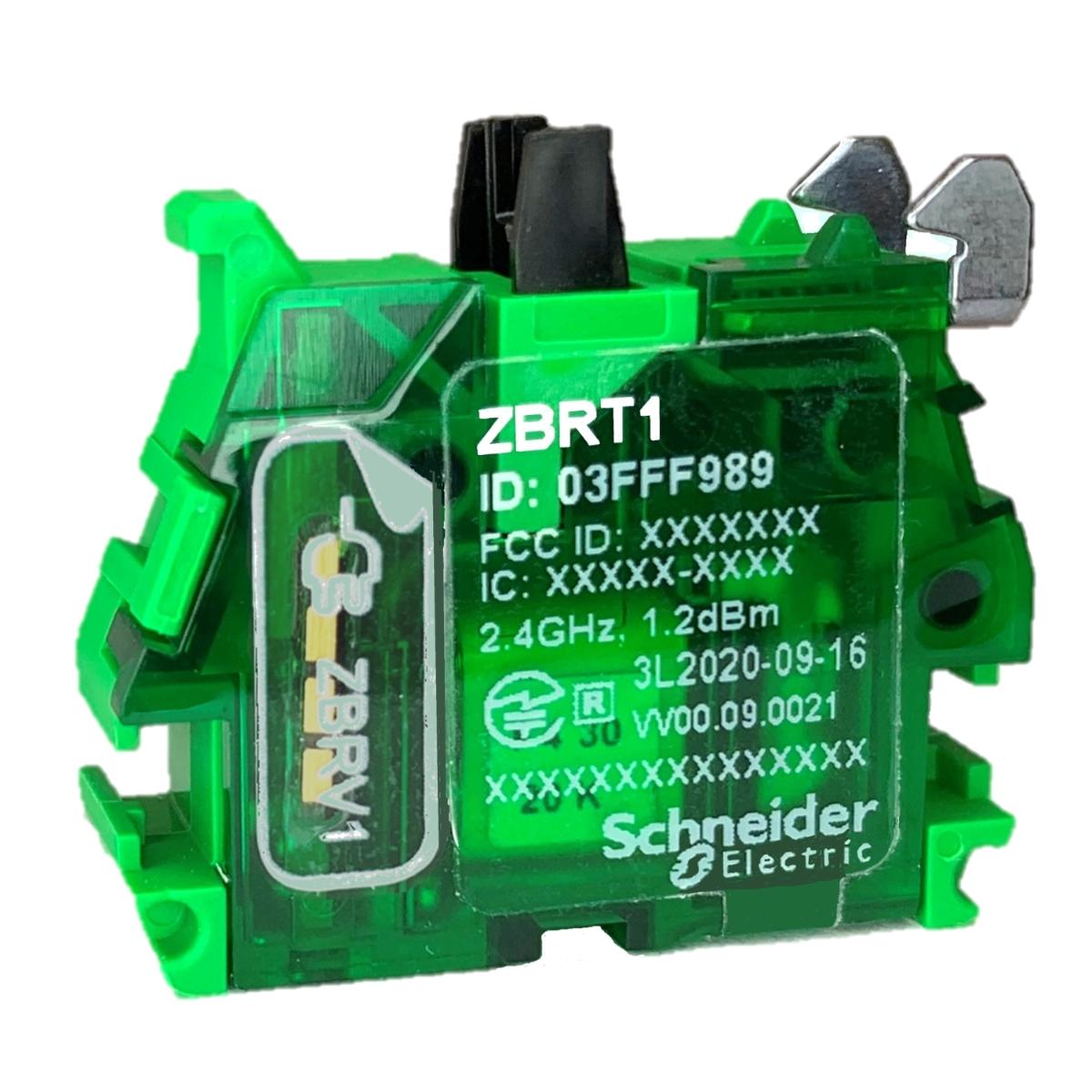

Schneider Electric ZBRT1 Transmitter for wireless and batteryless push button, Harmony XB5R, plastic, Black

Code: SCHZBRT1

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider Electric ZBRT1 Transmitter for wireless and batteryless push button, Harmony XB5R, plastic, Black

This transmitter is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a transmitter for wireless and batteryless pushbutton. It provides 1 radio frame sent at the push of the button. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 25g

Features:
• Robustness to withstand harsh environments
• With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
• A wide choice of contact blocks for general purposes or specific applications (low current, standard)
• Excellent mechanical connection with operator head

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Relative humidity	95-95 % at -40-70 °C without condensation
Antenna type	omnidirectional
Electromagnetic compatibility	electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
Max power consumption in W	1 mW
CAD overall depth	43mm
Embedding depth	42mm
Ambient air temperature for operation	-40-70 °C
Antenna gain	0 dBi
Directives	2004/108/EC - electromagnetic compatibility
Maximum sensing distance	300 m transmitter in box type XAL D- receiver in metal enclosure and use relay-antenna
Supplier Code	ZBRT1
Mechanical durability	1000000 cycles
Bandwidth	5-5 MHz
Radio agreement	FCC
Ambient air temperature for storage	-40-70 °C
Mounting diameter	22mm
YoutubeVideo1	https://www.youtube.com/embed/boihG16v3fE?si=DFzNr8BBQpVSuykL
Vibration resistance	+/- 10mm (f= 2-11 Hz) conforming to IEC 60068-2-6
Number of channels	16
360Image	https://visuals.se.com/ZBRT1_360/20220311T1219/360
Operating travel	4.3mm (total travel)
Acquisition time	2 ms
Device short name	XB5R
Shock resistance	50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Mechanical robustness	free fall resistance 1000mm conforming to IEC 60068-2-32
Fixing mode	fixing nut beneath head: 2-2.4 N.m
Communication port protocol	Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
IP degree of protection	IP30 (back face) conforming to IEC 60529
Range	Harmony XB5
Standards	IEC 60947-5-1
Level or class	5M00G7W
Product certifications	BT 2006/95/EC
Brand Name	Schneider Electric
CAD overall width	30mm
Electrical composition code	PW1
Response time	< 2 ms
Transmission frequency	2405 MHz
Bezel material	plastic
Modulation Technique	O-QPSK
Operating force	10 N C/O changing electrical state
Net weight	0.025 kg
Contact operation	simple action (push-button)
IK degree of protection	IK03 conforming to IEC 50102
CAD overall height	41.5mm
Product or component type	wireless and batteryless transmitter
