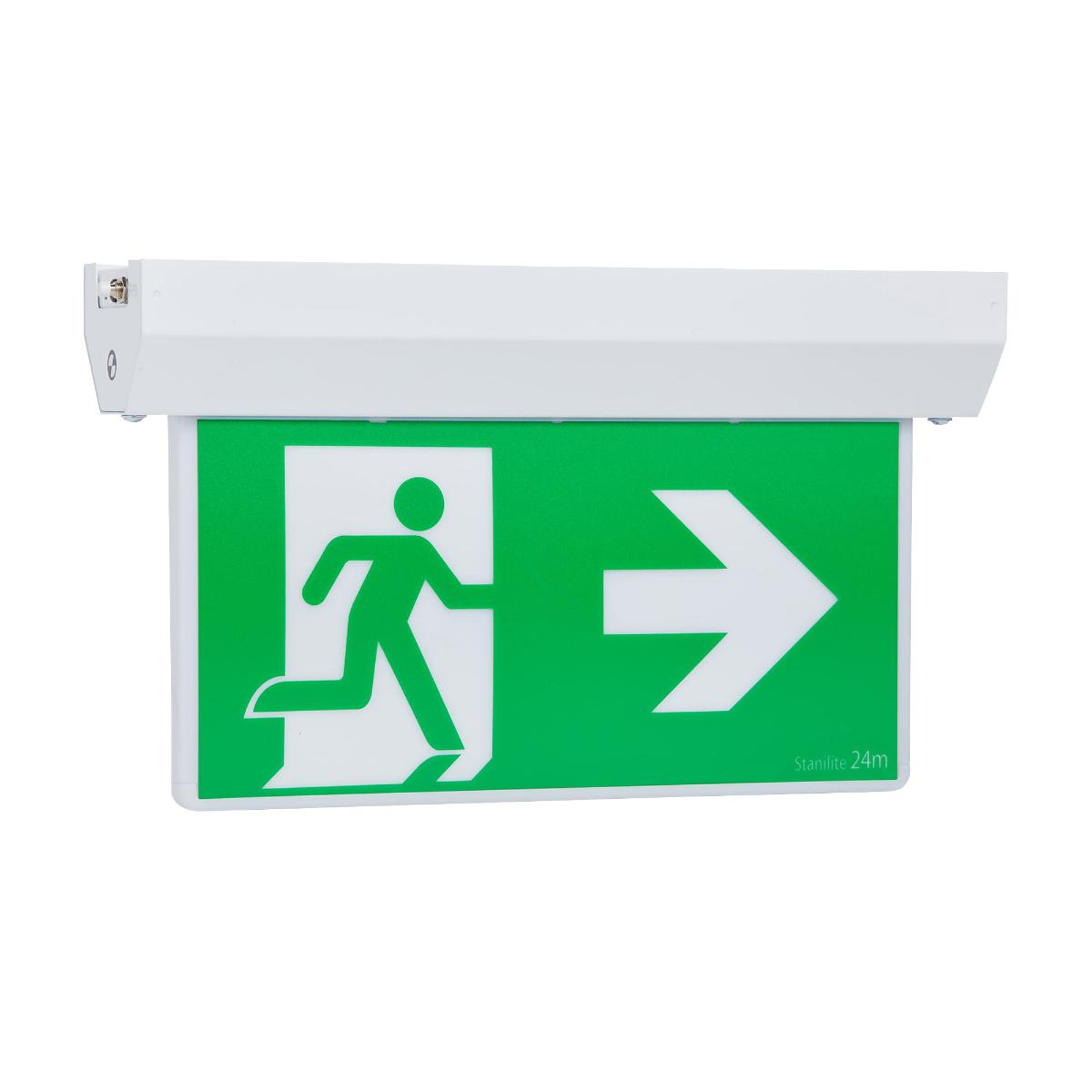

Stanilite PLSNXSLEDP Nexus LX Platinum Exit Lighting LED Edgelit Surface Mount
Code: STLPLSNXSLEDP
Unit of measure:
EACH
Description
Stanilite PLSNXSLEDP Nexus LX Platinum Exit Lighting LED Edgelit Surface Mount
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Product Group | Emergency Light |
| Photometric classification (C0) | D3.2 |
| Monitoring equipment | Nexus LX |
| Material housing | Plastic |
| Light Source | Multiple LED 0.7W |
| Material cover | Plastic - opal |
| Compliant to AS/NZS CISPR 15 | Yes |
| Colour housing | White |
| Battery | Lithium |
| Photometrics C0 | D3.2 (Preliminary Results) |
| Supplier Code | PLSNXSLEDP |
| Photometric classification | E2 |
| Warranty | 5 year warranty |
| Construction/Non-Visible Housing | Plastic |
| Lamp Type | LED exchangeable |
| Monitored | Nexus LX |
| With light source | Yes |
| Product Type | Exit |
| Driver type | LED |
| Mounting method | Ceiling surface mounting |
| With remote control | No |
| Nominal operation time | 100000 h |
| Accessories 2 | PLSLEDWMKIT: Wall Mounting Kit |
| ETIM Class | Emergency luminaire |
| Compliant to AS/NZS 60598.1:2017 | Yes |
| Compliant to AS/NZS 60598.2.22:2005 | Yes |
| Accessories 1 | PLSLEDCLKIT: Cantilever Mounting Kit |
| Monitored 2 | Nexus |
| Pictograph | Pictograph |
| Spare Parts 1 | 03-01304P: Battery LiFePO4 3.2V 1.5Ah |
| Photometrics C90 | E2 (Preliminary Results) |
| Voltage type | AC |
| Function | Maintained |
| Width | 79mm |
| Construction/Diffuser | Moulded Acrylic |
| With pictogram | Yes |
| Max. system power | 2.4W |
| With remote switch connection | No |
| Nominal Voltage | 240V |
| Product Range | Platinum |
| Viewing distance | 24m |
| Brand Name | Stanilite |
| Height/depth | 220mm |
| Compliant to AS/NZS 2293.3:2018 | Yes |
| Type | Legend Surface Mount Pictograph |
| Construction/Visible Housing | White Powder Coated Zinc Steel |
| Lamp Life | 100,000 hours |
| IP Rating | IP20 |
| Length | 375.5mm |
| Power Consumption | 2.4W (Preliminary Results) |
