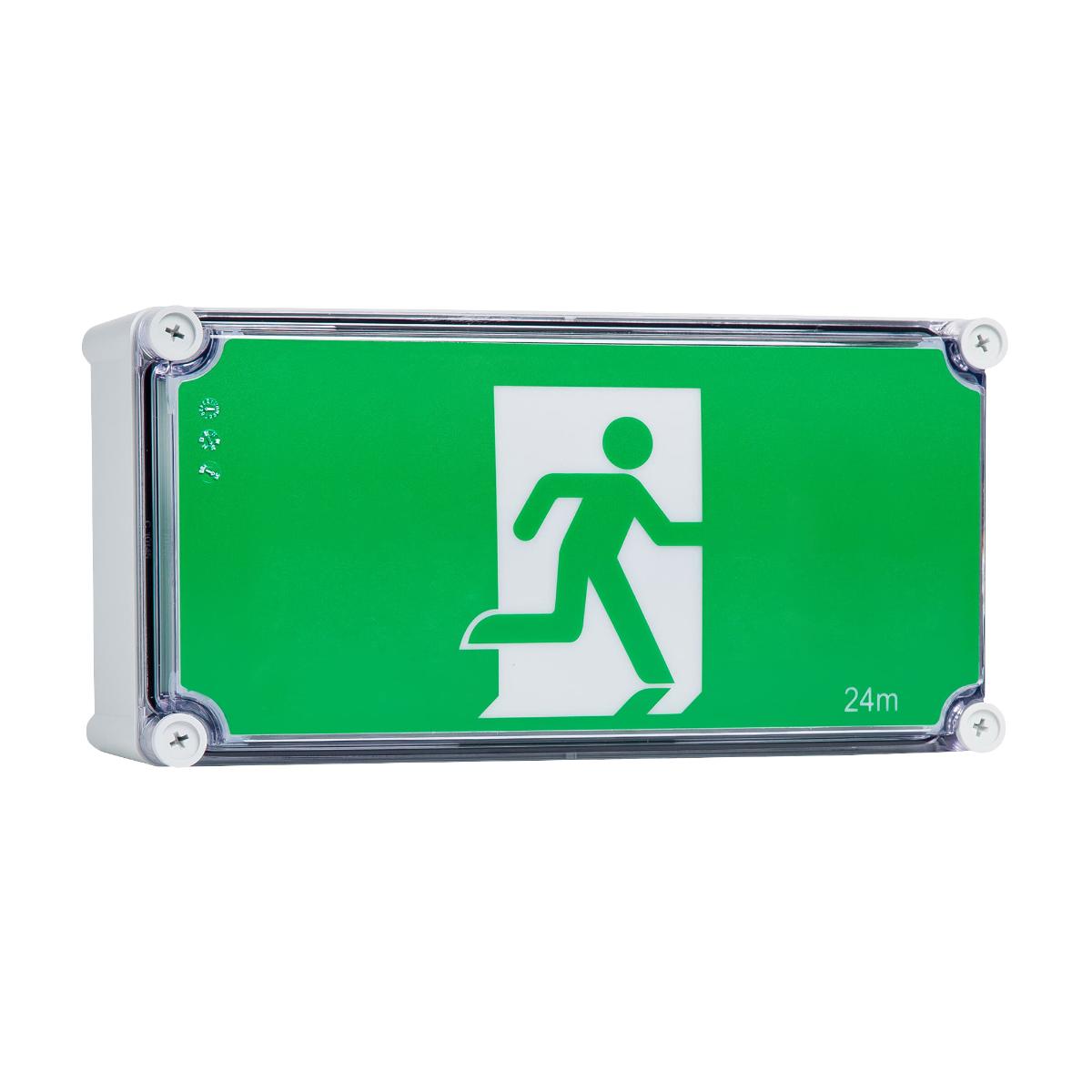

Stanilite PWEXLEDP1 Single Point Platinum Exit Lighting Bulkhead LED Weather Proof Straight
Code: STLPWEXLEDP1
Unit of measure:
EACH
Description
Stanilite PWEXLEDP1 Single Point Platinum Exit Lighting Bulkhead LED Weather Proof Straight
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Photometric classification (C0) | D1.25 |
| Voltage type | AC |
| Material housing | Plastic |
| Material cover | Plastic - opal |
| Compliant to AS/NZS CISPR 15 | Yes |
| Impact strength | IK08 |
| Colour housing | White |
| Supplier Code | PWEXLEDP1 |
| Photometric classification | C1.25 |
| Width | 130mm |
| Lamp type | LED exchangeable |
| With pictogram | Yes |
| Max. system power | 3.2W |
| With remote switch connection | No |
| Nominal Voltage | 240V |
| Viewing distance | 24m |
| Brand Name | Stanilite |
| With light source | Yes |
| Height/depth | 190mm |
| Compliant to AS/NZS 2293.3:2018 | Yes |
| IP Rating | IP65 |
| Length | 380mm |
| Driver type | LED |
| Mounting method | Ceiling surface mounting |
| With remote control | No |
| Nominal operation time | 100000 h |
| ETIM Class | Emergency luminaire |
| Compliant to AS/NZS 60598.1:2017 | Yes |
| Compliant to AS/NZS 60598.2.22:2005 | Yes |
