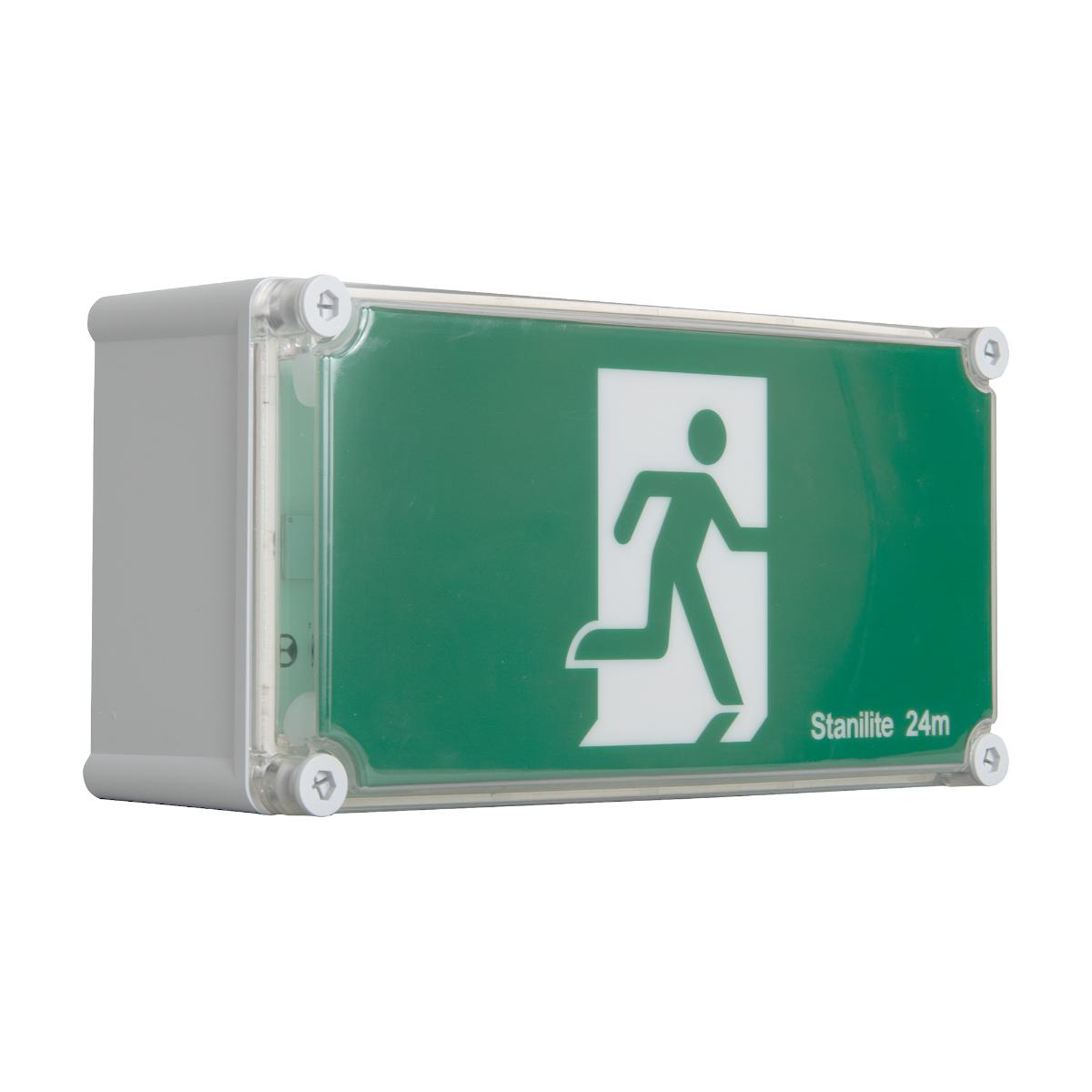

Stanilite PWEXNRFLEDP1 Nexus RF Platinum Exit Lighting LED Weather Proof Pictograph
Code: STLPWEXNRFLEDP1
Unit of measure:
EACH
Description
Stanilite PWEXNRFLEDP1 Nexus RF Platinum Exit Lighting LED Weather Proof Pictograph
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Product Group | Emergency Light |
| Photometric classification (C0) | D1.25 |
| Monitoring equipment | Nexus RF Infinity |
| Material housing | Plastic |
| Light Source | Multiple LED 1.6W |
| Material cover | Plastic - opal |
| Compliant to AS/NZS CISPR 15 | Yes |
| Impact strength | IK08 |
| Colour housing | White |
| Battery | Lithium |
| Photometrics C0 | D1.25 (Preliminary Results) |
| Supplier Code | PWEXNRFLEDP1 |
| Weatherproof Rating | IP65 |
| Photometric classification | C1.25 |
| Warranty | 5 year warranty |
| Construction/Gear Tray | White Powder Coated Zinc Steel |
| Lamp Type | LED exchangeable |
| Monitored | Nexus RF |
| With light source | Yes |
| Product Type | Exit |
| Driver type | LED |
| Mounting method | Wall surface mounted |
| With remote control | No |
| Nominal operation time | 100000 h |
| ETIM Class | Emergency luminaire |
| Compliant to AS/NZS 60598.1:2017 | Yes |
| Compliant to AS/NZS 60598.2.22:2005 | Yes |
| Accessories 1 | WPEXWGWM: Wire Guard |
| Monitored 2 | Nexus |
| Construction/Enclosure | Polycarbonate |
| Pictograph | Pictograph Straight |
| Spare Parts 1 | 03-01301P: Battery LiFePO4 3.2V 3.2Ah |
| Photometrics C90 | C1.25 (Preliminary Results) |
| Voltage type | AC |
| Function | Maintained |
| Width | 130mm |
| With pictogram | Yes |
| Max. system power | 3.2W |
| With remote switch connection | No |
| Nominal Voltage | 240V |
| Product Range | Platinum |
| Viewing distance | 24m |
| Brand Name | Stanilite |
| Height/depth | 190mm |
| Compliant to AS/NZS 2293.3:2018 | Yes |
| Type | Weatherproof Pictograph Straight |
| Lamp Life | 100,000 hours |
| Length | 380mm |
| IP Rating | IP65 |
| Power Consumption | 3.2W (Preliminary Results) |
