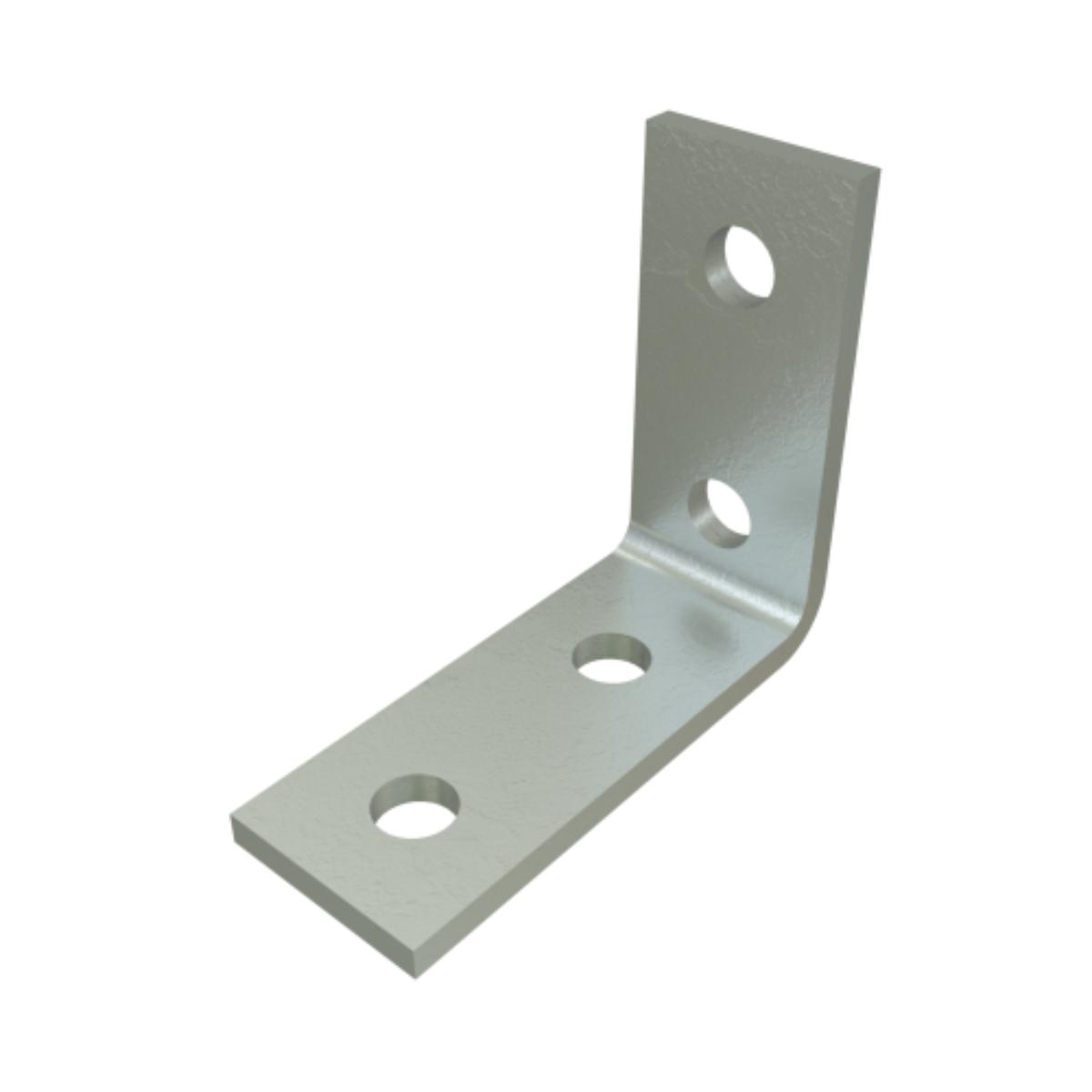

Unistrut P1325H 90 degree Angle Bracket, 4 Hole, Hot-Dip Galvanised, Steel, 5x105mm, 14mm Hole Diameter, 0.28kg, For 41mm Channel Strut Series, Silver Finish
Code: UNIP1325H
Unit of measure:
EACH
Description

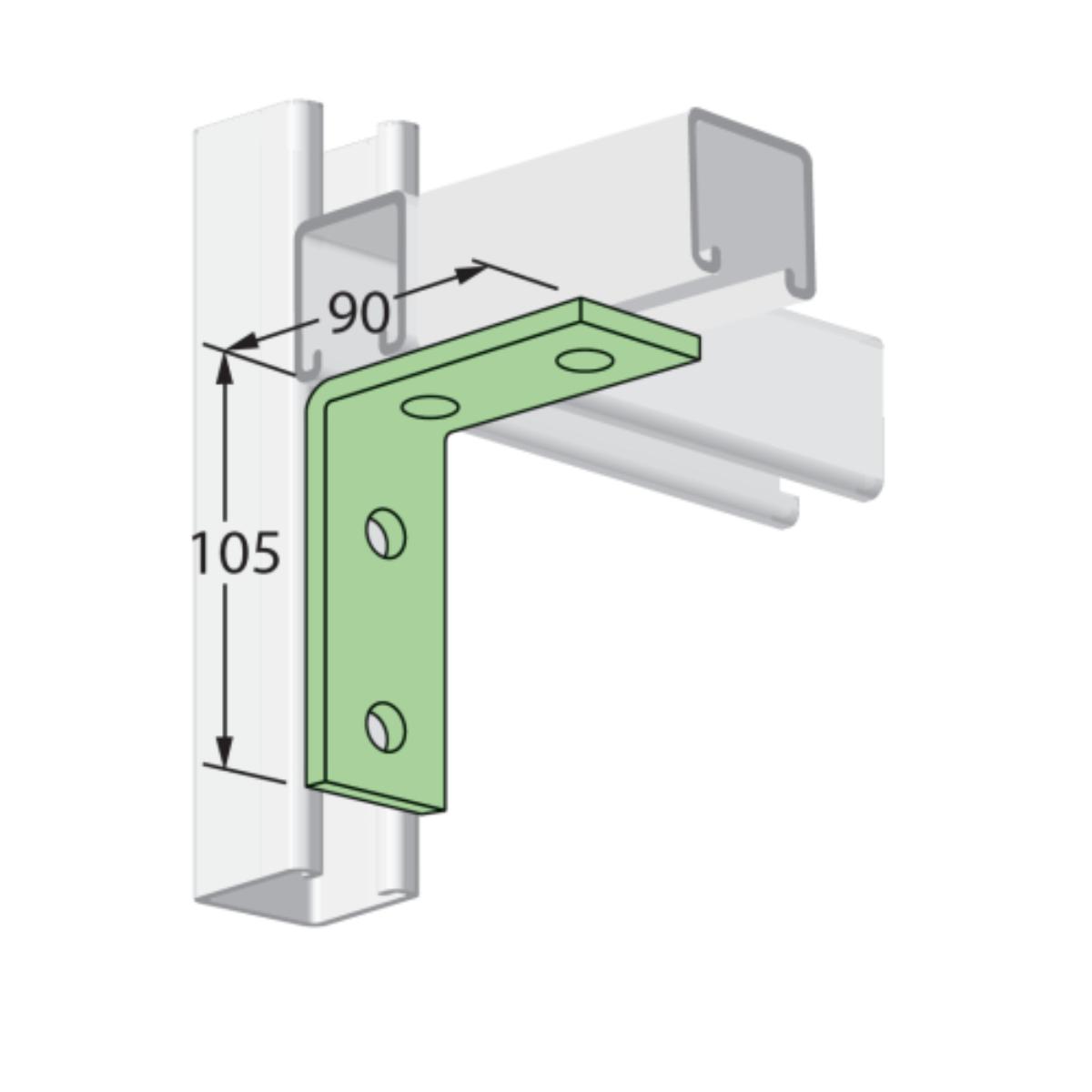

90 deg Angle Fitting
Brand Name: Unistrut
Type: 4 Hole
Hole Size: 14 mm
Width: 90 mm
Thickness: 6 mm
Depth: 105 mm
Finish: Hot Dip Galvanized
Mounting Type: 21 mm From End
48 mm on Center Hole Spacing
Weight: 33 kg
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Finish/Color | Hot Dip Galvanized |
| Size | 5x105mm |
| Hole Size | 14 mm |
| Mounting Type | 21 mm From End, 48 mm on Center Hole Spacing |
| Depth | 105 mm |
| Weight | 0.28kg |
| Brand Name | Unistrut |
| Thickness | 5mm |
| Item Name | 90 deg Angle Fitting |
| EAN/UPC | 2000000105277 |
| Type | 4 Hole |
| UOM | Metric |
| Length | 105mm |
| Supplier Code | P1325H |
| UNSPCS | 39131711 |
| Width | 90 mm |
| Finish | Hot-Dip Galvanised |
